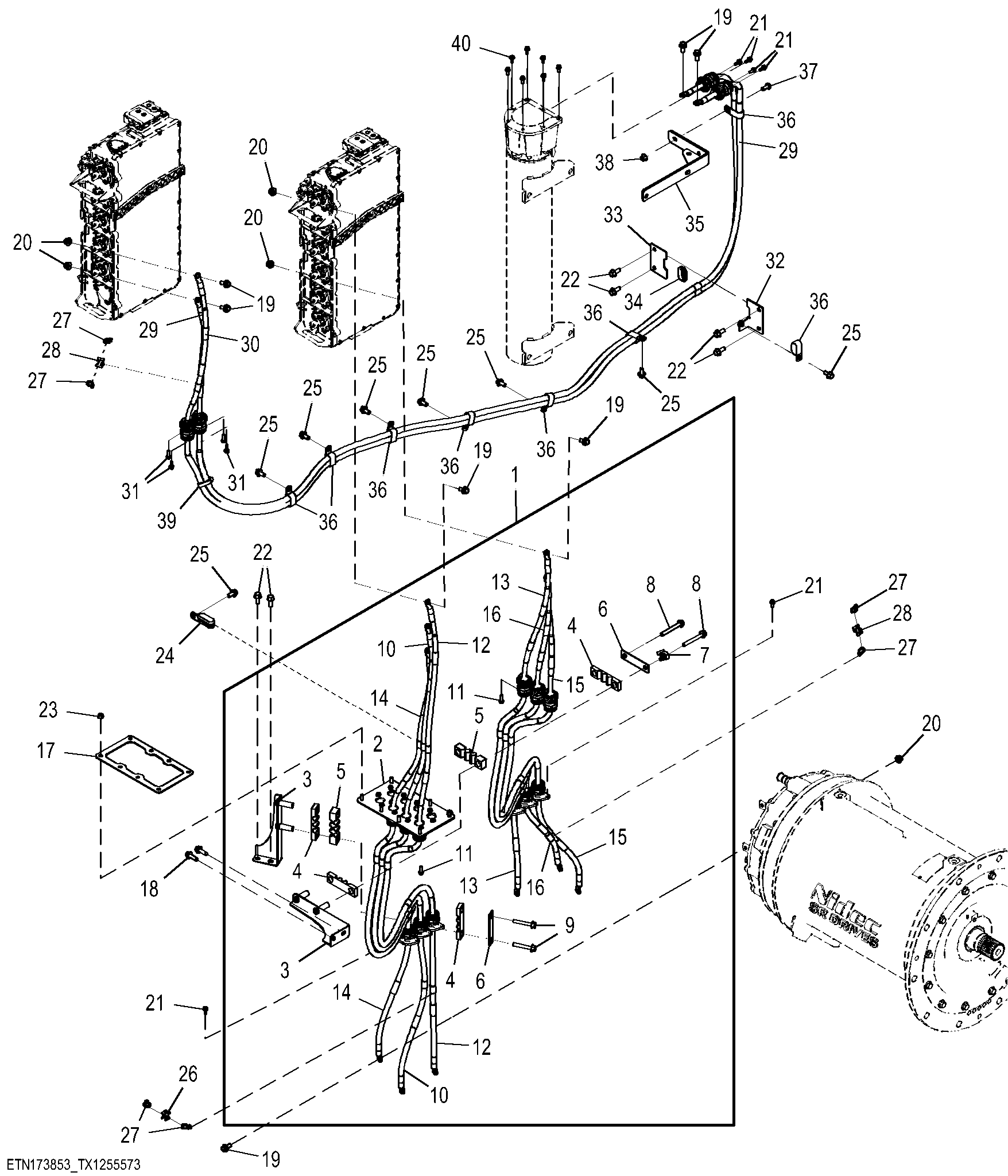

Electric Drive System Cables, Left Hand (LH)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT406593	1	Cable	-
2	AT422157	1	Platform	-
3	AT442076	2	Bracket	Front
4	T343262	4	Half Clamp	-
5	T343263	2	Platform	-
6	T343264	2	Strap	-
7	N380408	1	Clamp	-
8	19M7810	2	Screw	M10 X 80
9	19M7807	2	Screw	M10 X 60
10	AT406595	1	Cable	Rear Motor, INCLUDES 57M11298
10	57M11298	2	Elec. Connector Housing	-
11	19M7862	12	Screw	M6 X 20
12	57M11298	2	Elec. Connector Housing	-
12	AT406590	1	Cable	Rear Motor, INCLUDES 57M11298
13	AT406592	1	Cable	Rear Motor, INCLUDES 57M11298
13	57M11298	2	Elec. Connector Housing	-
14	AT406589	1	Cable	Rear Motor, INCLUDES 57M11298
14	57M11298	2	Elec. Connector Housing	-
15	AT406591	1	Cable	Rear Motor, INCLUDES 57M11298
15	57M11298	2	Elec. Connector Housing	-
16	AT406594	1	Cable	Rear Motor, INCLUDES 57M11298
16	57M11298	2	Elec. Connector Housing	-
17	T326493	1	Seal	-
18	19M7786	2	Screw	M10 X 30
19	AT425779	16	Cap Screw	-
20	DC19765	14	Flange Nut	-
21	19M7775	16	Screw	M6 X 16
22	19M7785	6	Screw	M10 X 25
23	14M7298	8	Flange Nut	M8
24	T342620	1	Clamp	-
25	19M7784	8	Screw	M10 X 20
26	RE345761	1	Swivel	-
27	R44302	6	Tie Band	-
28	RE345761	2	Swivel	-
29	AT406783	1	Cable	Brake, INCLUDES 57M11298
29	57M11298	2	Elec. Connector Housing	-
30	AT406784	1	Cable	Brake, INCLUDES 57M11298
30	57M11298	1	Elec. Connector Housing	-
31	19M7862	4	Screw	M6 X 20
32	AT437814	1	Bracket	Rear
33	T344191	1	Plate	-
34	T344190	1	Grommet	-
35	AT418028	1	Bracket	Resistor
36	R49921	8	Clamp	-
37	19M7938	1	Cap Screw	M10 X 20
38	14M7296	1	Flange Nut	M10
39	H224073	1	Tie Band	-
40	19M9443	7	Screw	M6 X 16

Electric Drive System Cables, Left Hand (LH)
