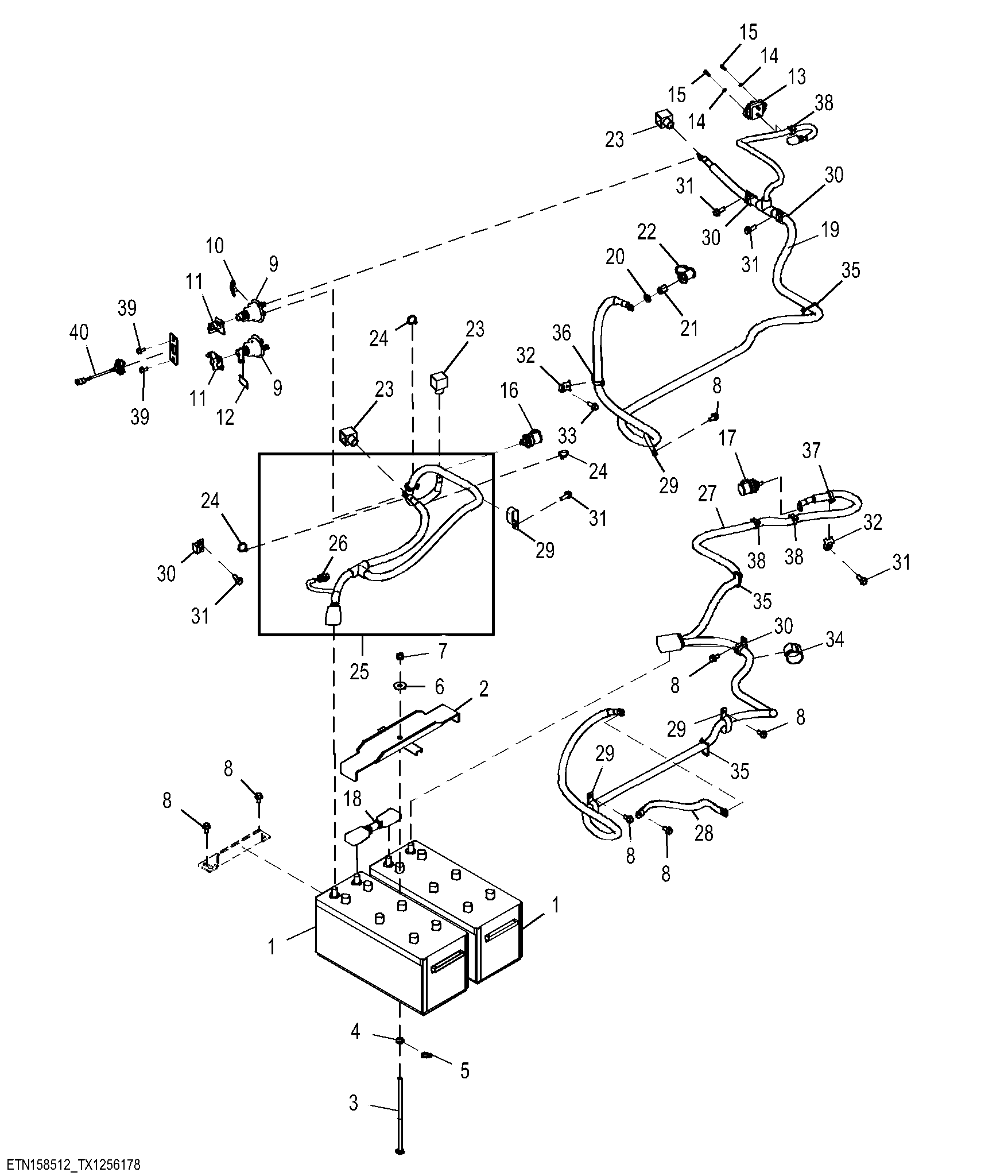

Batteries and Battery Cables, Two Batteries

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TY23020	2	Dry Charged Battery	-
2	AT495653	1	Bracket	-
3	H163787	1	Bolt	-
4	T162238	1	Grommet	-
5	R44302	1	Tie Band	-
6	H228843	1	Washer	-
7	14M7313	1	Lock Nut	-
8	19M7784	7	Screw	-
9	AT41188	2	Switch	Battery Disconnect
10	T268456	1	Label	Battery Disconnect
11	AT414316	2	Handle	-
12	T293460	1	Label	Engine Stop
13	AT431421	1	Circuit Breaker	150A
14	24M7027	2	Washer	-
15	19M7373	2	Cap Screw	-
16	AN205832	1	Elec. Connector Terminal	Positive
17	AN205833	1	Elec. Connector Terminal	Negative
18	AT442614	1	Battery Cable	Battery To Battery
19	AT495516	1	Battery Cable	Positve Disconnect to Starter and Jump Post
20	24M7240	1	Washer	-
21	E64052	1	Nut	-
22	T134104	1	Cover	-
23	T129165	3	Boot	-
24	R44302	3	Tie Band	-
25	AT495515	1	Battery Cable	Positive Battery to Disconnect
26	57M9726	1	Elec. Connector Housing	-
27	AT496167	1	Ground Cable	Dual Negative to Starter and Jump Post
28	AT47069	1	Ground Cable	-
29	R50454	4	Clamp	SUB FOR AH77869
30	T102934	4	Clamp	-
31	19M7786	5	Screw	-
32	N380408	2	Clamp	-
33	19M9845	1	Screw	-
34	T253535	1	Adjusting Strap	-
35	R44302	3	Tie Band	-
36	H224073	1	Tie Band	-
37	H224073	1	Tie Band	-
38	H224073	3	Tie Band	-
39	19M7865	2	Screw	-
40	AT403354	1	Push Switch	Cycle Counter

Batteries and Battery Cables, Two Batteries
