Открытый узел

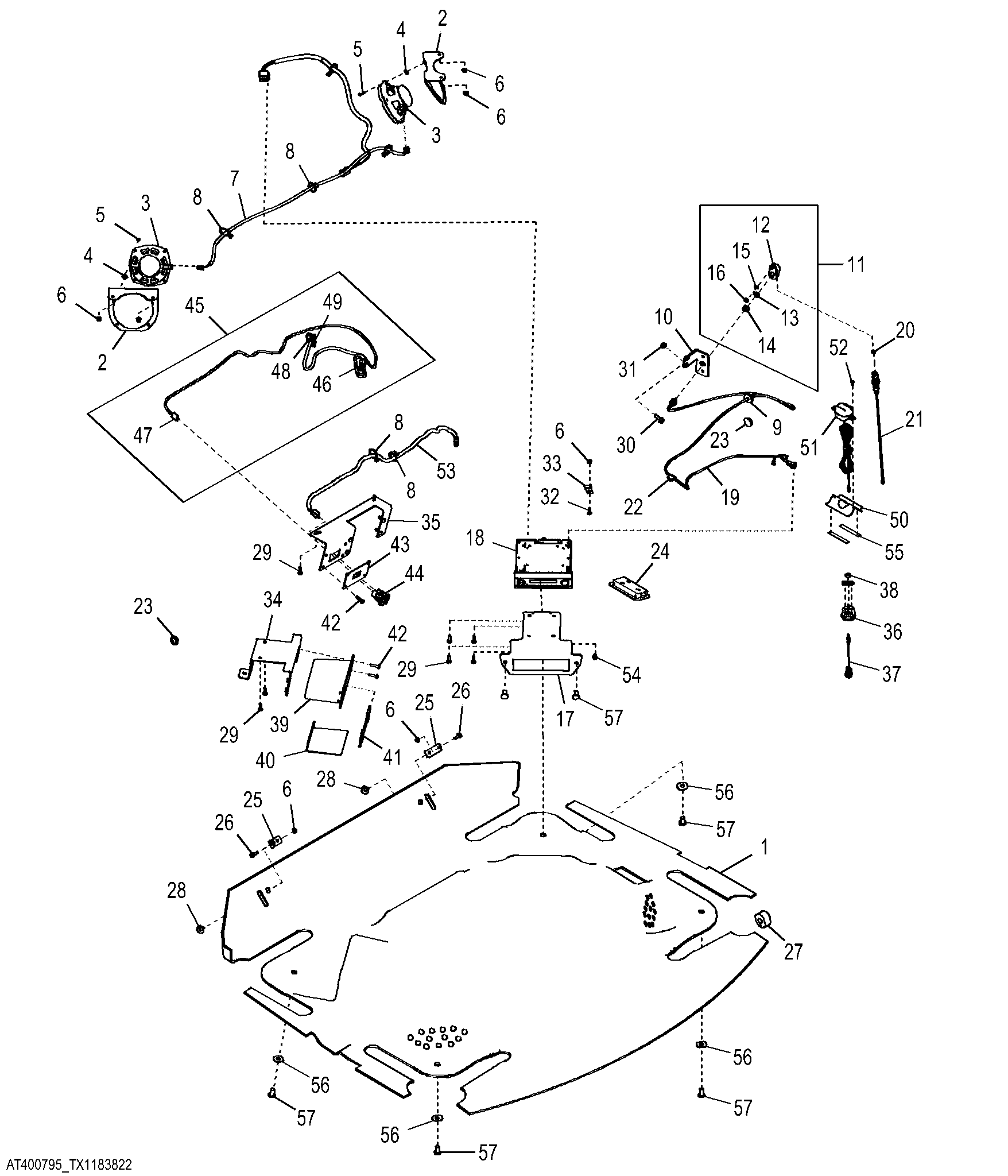

Premium Radio, Speakers and Headliner

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T288609	1	Headliner	-
2	T180338	2	Bracket	-
3	AT342588	2	Speaker	-
4	TT101176	8	Nut	-
5	T182888	8	Screw	-
6	14M7303	7	Flange Nut	M6
7	AT395284	1	Radio Speaker WRG Harness	Radio Harness Components on Separate Page
8	R44302	7	Tie Band	-
9	T65643	1	Grommet	-
10	T290503	1	Bracket	-
11	RE250304	1	Antenna	-
12	RE247775	1	Antenna	-
13	12H292	1	Lock Washer	1/2"
14	R76695	1	Nut	-
15	12H356	1	Lock Washer	1/4"
16	14H786	1	Nut	1/4"
17	T368962	1	Bracket	SUB FOR T284884
18	AL232067	1	Radio	Blue Tooth, XM Ready, No CD Player, SUB FOR RE585066 AND AL232065
19	SJ19327	1	Antenna Cable	INCLUDES T344552 AND RE281646
19	T344552	1	Elec. Connector Terminal	-
19	RE281646	1	Antenna Cable	-
20	12H302	1	Lock Washer	1/4"
21	AT350979	1	Antenna	-
22	T182909	1	Clip	-
23	T152230	2	Plug	-
24	AT337492	1	Lamp	24V, 10W, Interior Light
24	TT207136	1	Bulb	Dome Light
25	T181050	2	Angle	-
26	19M7862	2	Screw	M6 X 20
27	T182870	1	Isolator	Cab Headliner
28	T184892	2	Retainer	-
29	19H1948	8	Cap Screw	1/4" X 3/4"
30	19M7867	1	Screw	M8 X 25
31	14M7298	1	Flange Nut	M8
32	19M7560	1	Cap Screw	M6 X 16
33	T32231	1	Clamp	-
34	AT459429	1	Bracket	SUB FOR AT451903
35	AT459430	1	Bracket	SUB FOR AT451904
36	T348574	1	Bezel	-
37	AXE13430	1	Radio Accessory	-
38	H117239	3	Push Nut	-
39	T337584	1	Air Duct	-
40	T339630	1	Pad	-
41	AT424464	1	Retainer	-
42	21M7310	8	Screw	M6 X 25
43	T360804	1	Plate	-
44	AXE11061	1	Electrical Connector Assy	-
45	AT462403	1	Radio Accessory	Auxiliary, SUB FOR AT441610
46	57M10442	1	Elec. Connector Housing	B1
47	57M10439	1	Elec. Connector Housing	A25
48	57M11029	1	Elec. Connector Housing	A24–2
48	57M10451	1	Elec. Connector Terminal	-
49	57M10661	1	Elec. Connector Housing	A24–1
49	57M8740	6	Elec. Connector Terminal	-
50	T306309	1	Bracket	-
51	RE296896	1	Antenna	-
52	37H95	2	Screw	-
53	AL210790	1	Wiring Harness	Radio To USB Port
54	37M7089	1	Screw	M6 X 12
55	T274806	2	Pressure Sensitive Adhesive	-
56	R38371	4	Washer	-
57	MT2485	6	Plug	-

Premium Radio, Speakers and Headliner

Нет текстового описания
