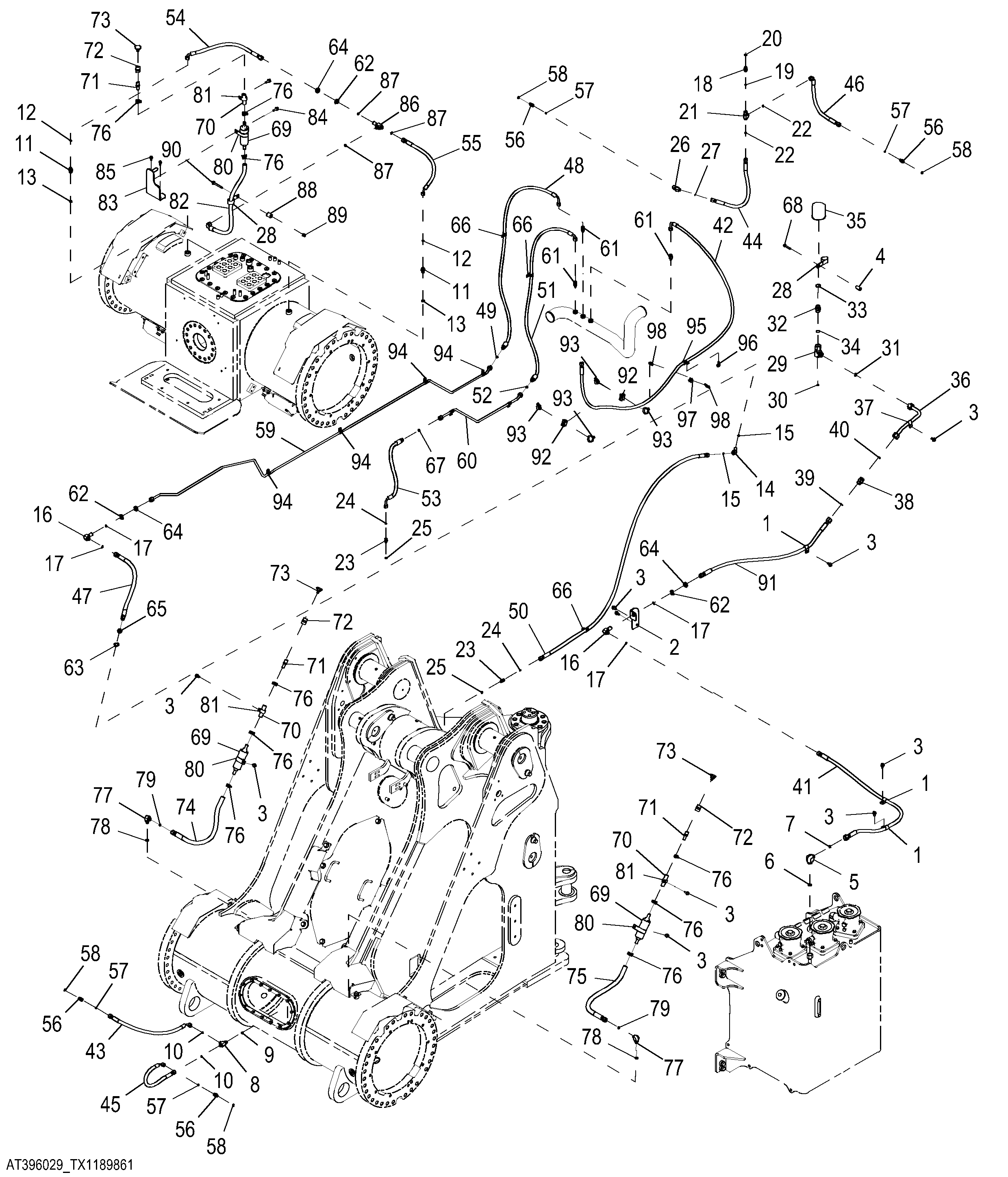

Pneumatic Pressure Lines

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T70659	3	Clamp	-
2	T364998	1	Plate	-
3	19M7784	10	Screw	M10 X 20
4	T365758	1	Bushing	-
5	38H5218	1	Elbow Fitting	-
6	T77858	1	O-Ring	-
7	T77932	1	O-Ring	-
8	38H5165	1	Tee Fitting	-
9	51M7042	1	O-Ring	13.300 X 2.200 mm
10	T77613	2	O-Ring	-
11	38H5012	2	Adapter Fitting	-
12	T77613	2	O-Ring	-
13	51M7043	2	O-Ring	15.300 X 2.200 mm
14	38H5458	1	Elbow Fitting	-
15	T77613	2	O-Ring	-
16	38H5098	2	Elbow Fitting	-
17	T77857	4	O-Ring	-
18	38H5037	1	Adapter Fitting	-
19	T77613	1	O-Ring	-
20	51M7042	1	O-Ring	13.300 X 2.200 mm
21	38H5105	1	Tee Fitting	-
22	T77613	2	O-Ring	-
23	38H5008	2	Adapter Fitting	-
24	T77613	2	O-Ring	-
25	51M7040	2	O-Ring	9.300 X 2.200 mm
26	38H5373	1	Adapter Fitting	-
27	T77613	1	O-Ring	-
28	T153064	2	Clamp	SUB FOR R112693
29	38H1446	1	Tee Fitting	USE WITH AT479009
30	T77613	1	O-Ring	USE WITH AT479009
31	T77858	1	O-Ring	USE WITH AT479009
32	AT440425	1	Check Valve	NLA; ORDER AT479009, 38H1446, T77613 AND T77858
32	AT479009	1	Check Valve	-
33	T59014	1	O-Ring	-
34	T77858	1	O-Ring	-
35	T225008	1	Breather	-
36	AT444916	1	Oil Line	Return
37	T24959	1	Clamp	-
38	38H5217	1	Union Fitting	-
39	T77932	1	O-Ring	-
40	T77858	1	O-Ring	-
41	AT455652	1	Hydraulic Hose	-
42	AT455654	1	Hydraulic Hose	-
43	AT427465	1	Hydraulic Hose	-
44	AT438662	1	Hydraulic Hose	-
45	AT427466	1	Hydraulic Hose	-
46	AT427466	1	Hydraulic Hose	-
47	AT435390	1	Hydraulic Hose	Fabricate
48	AT435400	1	Hydraulic Hose	Fabricate, INCLUDES T77857
49	T77857	1	O-Ring	-
50	AT435403	1	Hydraulic Hose	Fabricate
51	AT436011	1	Hydraulic Hose	Fabricate, INCLUDES T77857
52	T77857	1	O-Ring	-
53	AT436012	1	Hydraulic Hose	Fabricate
54	AT461442	1	Hydraulic Hose	Fabricate
55	AT461442	1	Hydraulic Hose	Fabricate
56	T367647	4	Adapter Fitting	-
57	T77613	4	O-Ring	-
58	R26448	4	O-Ring	-
59	AT455971	1	Tube	-
60	AT436010	1	Tube	-
61	AT504284	3	Check Valve	SUB FOR AT440417
62	24M7396	3	Washer	21 X 34 X 3 mm
63	24H1391	1	Washer	25/32" X 1-5/16" X 0.060"
64	38H5092	3	Nut	13/16"
65	38H5091	1	Nut	11/16"
66	T74416	3	Clamp	-
67	T77857	1	O-Ring	-
68	19M7800	1	Screw	M8 X 50
69	DZ100304	3	Filter	-
70	-	3	Part 71	MAKE FROM TY22328, CTL 90 mm (3.6 in)
