Открытый узел

Lubrication System, Rear

Lubrication System, Rear

Lubrication System, Rear

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

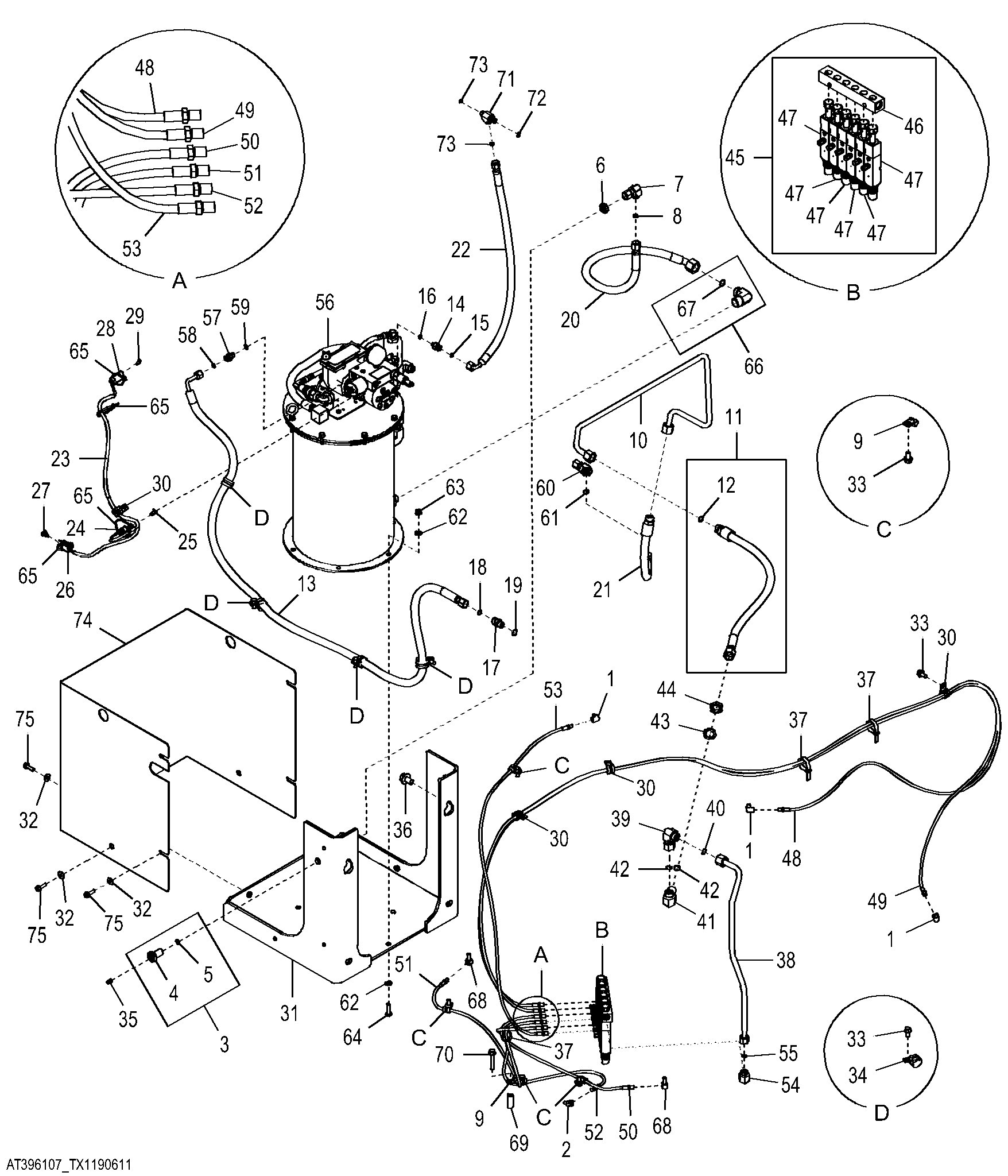

Lubrication System, Rear

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T56112	3	Elbow Fitting	-
2	M45937	1	Elbow Fitting	-
3	AT439624	1	Fitting	-
4	T346204	1	Fitting	-
5	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
6	T78716	1	Nut	-
7	38H1095	1	Elbow Fitting	-
8	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
9	T78974	8	Clamp	-
10	AT435314	1	Oil Tube	-
11	AT424838	1	Hydraulic Hose	-
12	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
13	AT433080	1	Hydraulic Hose	Fabricate
14	38H1309	1	Adapter Fitting	-
15	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
16	R28782	1	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
17	38H1161	1	Adapter Fitting	-
18	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
19	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
20	AT433071	1	Hydraulic Hose	Fabricate
21	AT433077	1	Hydraulic Hose	Fabricate
22	AT433081	1	Hydraulic Hose	Fabricate
23	AT404444	1	Wiring Harness	Auto Lube
24	57M8021	1	Electrical Connector Assy	Solenoid
24	R78065	2	Elec. Connector Terminal	-
25	57M8022	1	Elec.Connect Locking Device	-
26	57M8015	1	Electrical Connector Assy	Level Sensor
26	R78065	4	Elec. Connector Terminal	-
27	57M8016	1	Elec.Connect Locking Device	-
28	R78069	1	Elec. Connector Cavity Plug	-
28	R78066	5	Elec. Connector Terminal	-
28	57M8014	1	Elec. Connector Housing	To Load Center
29	57M7678	1	Elec. Connector Terminal	-
30	T74416	4	Clamp	-
31	AT492563	1	Support	SUB FOR AT433016
32	24M7298	8	Washer	8.400 X 25 X 2 mm
33	19M7784	9	Screw	M10 X 20
34	T102934	4	Clamp	-
35	JD7759	1	Lubrication Fitting	-
36	19M8468	4	Screw	M16 X 25
37	H224073	2	Tie Band	-
38	AT435313	1	Oil Tube	-
39	38H5385	1	Adapter Fitting	-
40	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
41	38H5221	1	Adapter Fitting	-
42	T77932	2	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
43	24M7294	1	Washer	26 X 39 X 4 mm
44	38H5093	1	Nut	1"
45	AT438252	1	Valve	Grease Injector
46	T291481	1	Manifold	-
47	T363380	1	Cap	-
47	JD7759	1	Lubrication Fitting	-
47	AT398683	6	Valve	Injector Lubrication SLV, INCLUDES JD7759 ANDT363380
48	AT437972	1	Grease Hose	-
49	AT460831	1	Grease Hose	-
50	AT396296	1	Grease Hose	-
51	AT427695	1	Grease Hose	-
52	AT427092	1	Grease Hose	-
53	AT439074	1	Grease Hose	-
54	38H1519	1	Elbow Fitting	-
55	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
56	AT442970	1	Pump	Components Listed on Seperate Page
57	38H1160	1	Adapter Fitting	-
58	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
59	R26448	1	O-Ring	-
60	38H1603	1	Elbow Fitting	-
61	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
62	24M7239	12	Washer	10.700 X 21 X 2.500 mm
63	14M7517	6	Lock Nut	M10
64	19M7550	6	Cap Screw	M10 X 35
65	R44302	2	Tie Band	-
66	RE523561	1	Elbow Fitting	-
67	T77858	1	O-Ring	-
68	E53801	2	Elbow Fitting	-
69	T101975	1	Bushing	-
70	19M7807	1	Screw	M10 X 60
71	38H5067	1	Tee Fitting	-
72	51M7041	1	O-Ring	11.300 X 2.200 mm
73	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
74	T371992	1	Cover	-
75	19M7868	8	Screw	M8 X 30
