Inverter Cabinet

Inverter Cabinet

Inverter Cabinet

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

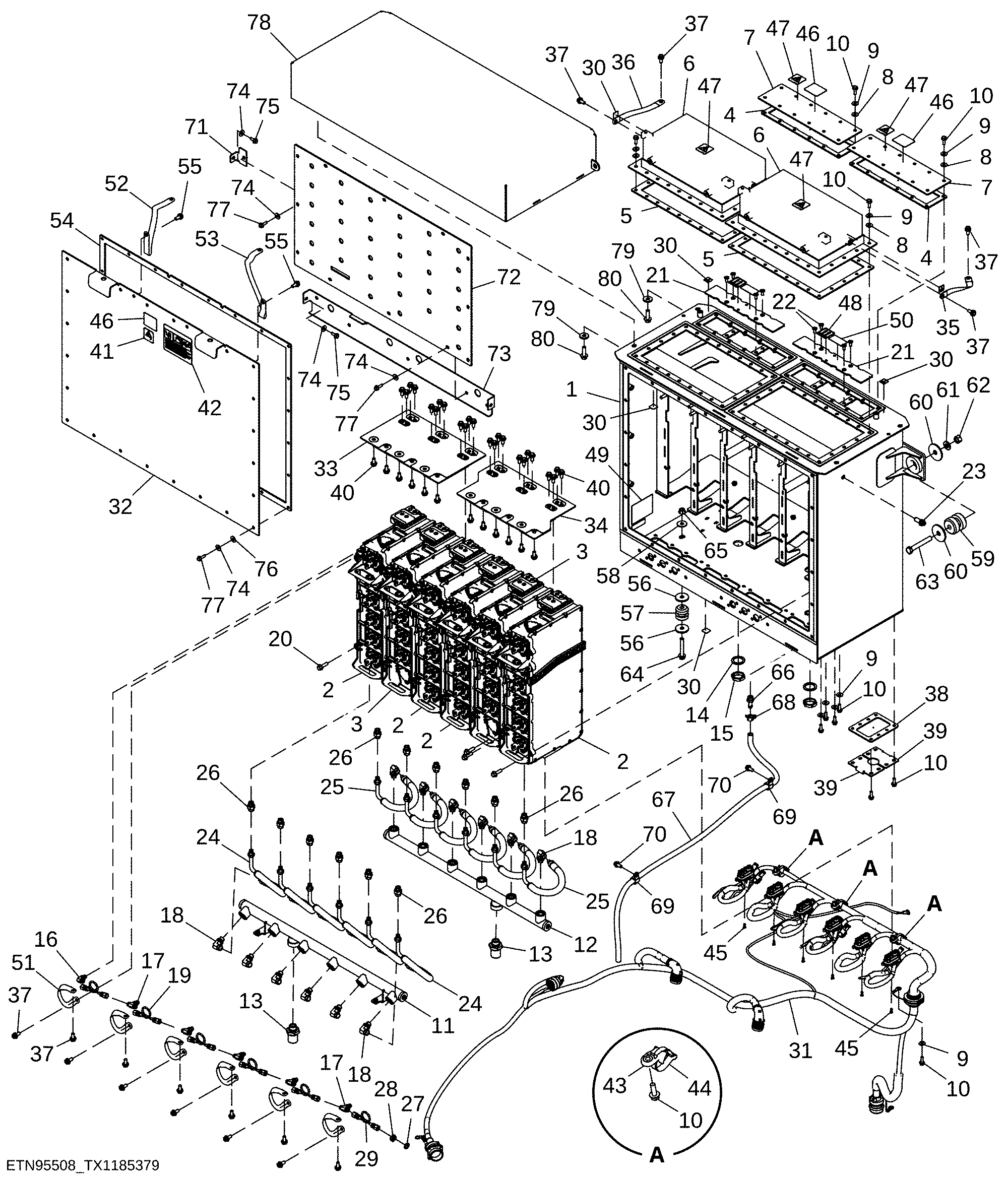

Inverter Cabinet

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	PH60219525	1	Cabinet	-
2	PH90225562	4	Inverter	Motor, SUB FOR PH90219306
3	PH90225561	2	Inverter	Generator, SUB FOR PH90219303
4	PH60220091	2	Gasket	-
5	PH60220092	2	Gasket	-
6	PH15219233	2	Capacitor	-
7	PH60219550	2	Cover	-
8	PH81220266	72	Washer	-
9	24M7298	81	Washer	8.400 X 25 X 2 mm
10	19M7867	92	Screw	M8 X 25
11	PH60219541	1	Manifold	Front Coolant
12	PH60219544	1	Manifold	Rear Coolant
13	T76938	2	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
13	51M7047	1	O-Ring	23.600 X 2.900 mm
13	PH60220275	2	Fitting	-
14	24H1520	2	Washer	1-15/32" X 2" X 0.105"
15	38H5095	2	Nut	1-7/16"
16	38H5015	1	Elbow Fitting	-
16	51M7040	1	O-Ring	9.300 X 2.200 mm
16	T77814	1	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
17	38H5215	5	Union Fitting	-
17	51M7040	1	O-Ring	9.300 X 2.200 mm
17	T77814	1	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
18	51M7043	1	O-Ring	15.300 X 2.200 mm
18	62M1003	12	Adapter Fitting	-
19	PH60215219	5	Hose	-
20	19M7835	24	Screw	M10 X 35
21	PH60219549	2	Guard	Inverter Cabinet
22	19M10252	8	Screw	M8 X 20
23	38H5222	1	Union Fitting	-
23	T77814	2	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
24	PH60215218	6	Hose	-
25	PH60215218	6	Hose	-
26	62M1001	12	Adapter Fitting	-
26	51M7043	1	O-Ring	15.300 X 2.200 mm
27	24M7145	1	Washer	15 X 24 X 2.500 mm
28	38H5090	1	Nut	9/16"
29	PH60215219	1	Hose	-
30	T319986	11	Label	-
31	AT419486	1	Wiring Harness	Components On Separate Page Inverter Cabinet
32	PH60227380	1	Cover	INCLUDES PH60219545 AND (2) T72414
32	PH60219545	1	Cover	-
32	T72414	2	Bushing	-
33	PH60226239	1	Electrical Conductor	LH
34	PH60226240	1	Electrical Conductor	RH
35	AP22660	1	Ground Cable	-
36	AT252530	1	Ground Cable	-
37	PH60220852	1	Gasket	-
38	PH60220852	1	Gasket	-
39	PH60220851	2	Plate	-
40	AT425779	36	Cap Screw	-
41	T331031	1	Safety Sign	Warning - Voltage
42	T309322	1	Safety Sign	Warning - Inverter
43	H224072	3	Clamp	-
44	H224073	3	Tie Band	-
45	PH81210275	6	Screw	-
46	T325156	3	Label	Bolted Joint
47	PH53217009	4	Label	Warning - High Voltage
48	T341623	2	Safety Sign	This Side Up
49	PH53223206	1	Label	PID Layout
50	PH53223442	2	Label	DC BUS Test Points
51	AP22660	6	Ground Cable	-
52	R36545	1	Ground Cable	-
53	R36545	1	Ground Cable	-
54	PH60220090	1	Gasket	-
55	PH81227379	2	Screw	-
56	24H1347	4	Washer	17/32" X 2" X 0.194"
57	F123944	2	Isolator	-
58	F123944	2	Isolator	Bottom
59	AT199884	2	Isolator	Top
60	24H1852	4	Washer	21/32" X 2-3/4" X 0.180"
61	24M7241	2	Washer	17 X 34 X 4 mm
62	14M7276	2	Nut	M16
63	19M7884	2	Cap Screw	M16 X 110
64	19M7818	2	Screw	M12 X 80
65	14M7299	2	Flange Nut	M12
66	T38282	1	Hose Fitting	-
66	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
67	-	1	Part 79	MAKE FROM T168383, CTL 1.55 m (5.1 ft)
