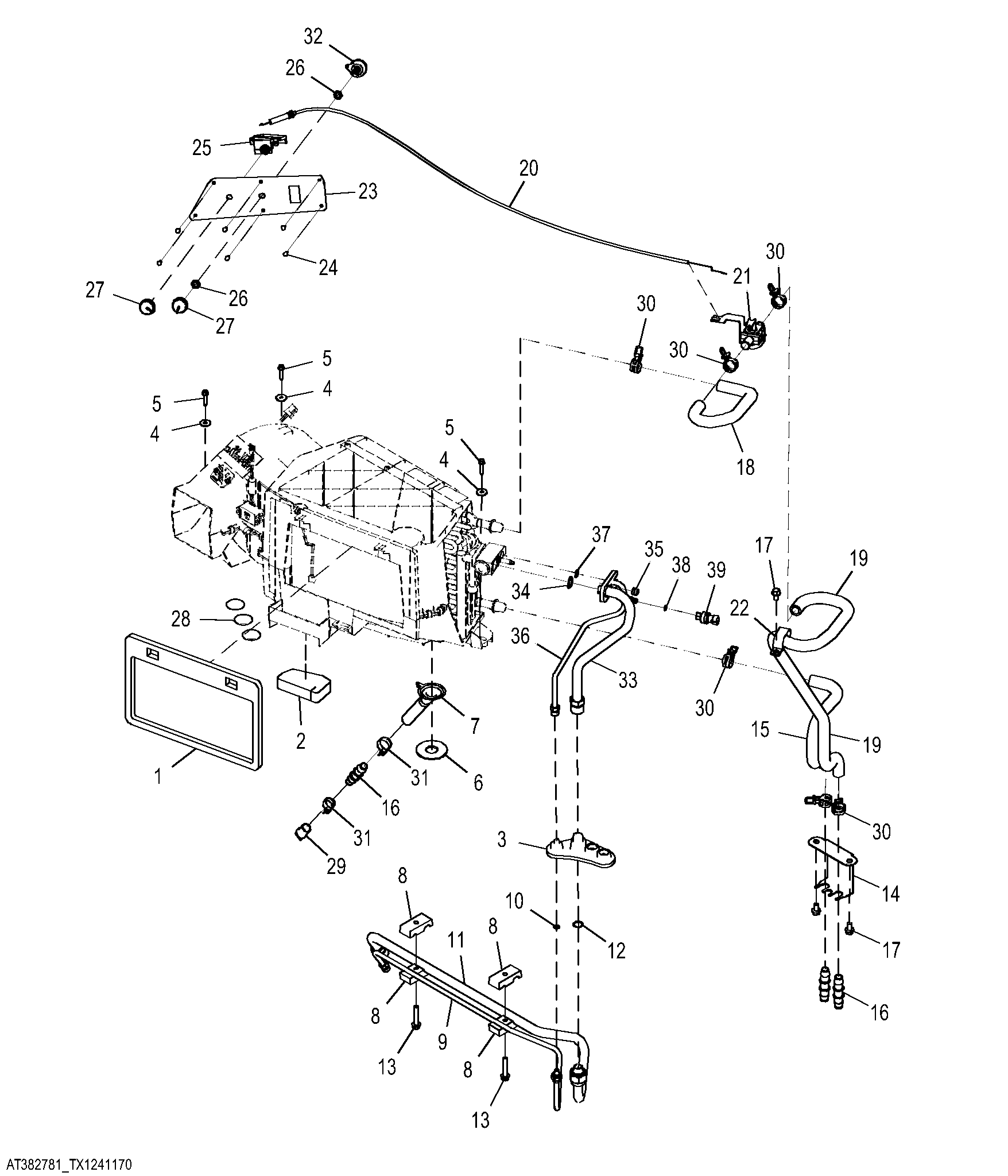

HVAC Module Refrigerant Lines and Control Cable (681290 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T202742	1	Seal	Recirculation
2	T204124	1	Pad	-
3	T166297	1	Grommet	-
4	24M7100	3	Washer	6.600 X 22 X 2 mm
5	37M7104	3	Screw	M6 X 30
6	T265735	1	Isolator	-
7	T239763	1	Funnel	Condensate Drain
8	H114865	4	Clamp	-
9	AT467574	1	Line	Refrigerant
10	R183409	1	O-Ring	-
11	AT467573	1	Line	Refrigerant
12	R183412	1	O-Ring	-
13	19M8318	2	Screw	M8 X 45
14	T288213	1	Bracket	-
15	T288214	1	Hose	Inlet
16	T160492	3	Fitting	-
17	19M7865	3	Screw	M8 X 16
18	T261666	1	Hose	Outlet
19	T296518	1	Hose	Outlet
20	AT310810	1	Cable	Temperature Control
21	RE263090	1	Valve	Heater Valve
22	AH77869	1	Clip	-
23	T409127	1	Instrument Panel	Climate Controls, SUB FOR T295737
24	T82791	6	Screw	-
25	RE46742	1	Control	-
26	R44165	2	Lock Nut	-
27	AL76568	2	Knob	INCLUDES L78497, L76805 AND L76804
27	L78497	1	Insert	-
27	L76805	1	Insert	-
27	L76804	1	Knob	-
28	T186793	3	Label	Gray Circle
29	T330289	1	Check Valve	Condensate Drain
30	T184924	6	Hose Clamp	SUB FOR AT330787
31	H224073	2	Tie Band	-
32	AT471493	1	Switch	Blower Speed Switch, SUB FOR RE43497
33	AT478367	1	Line	Suction, SUB FOR AT341613
34	T356709	1	Sealing Washer	-
35	14M7426	1	Lock Nut	M8, SUB FOR 19M8553
36	AT478365	1	Refrigerant Hose	Liquid, SUB FOR AT341630
37	T355726	1	Sealing Washer	-
38	R183409	1	O-Ring	-
39	RE157329	1	Switch	Air Conditioner High/Low Pressure Switch

HVAC Module Refrigerant Lines and Control Cable (681290 - )

Нет текстового описания
