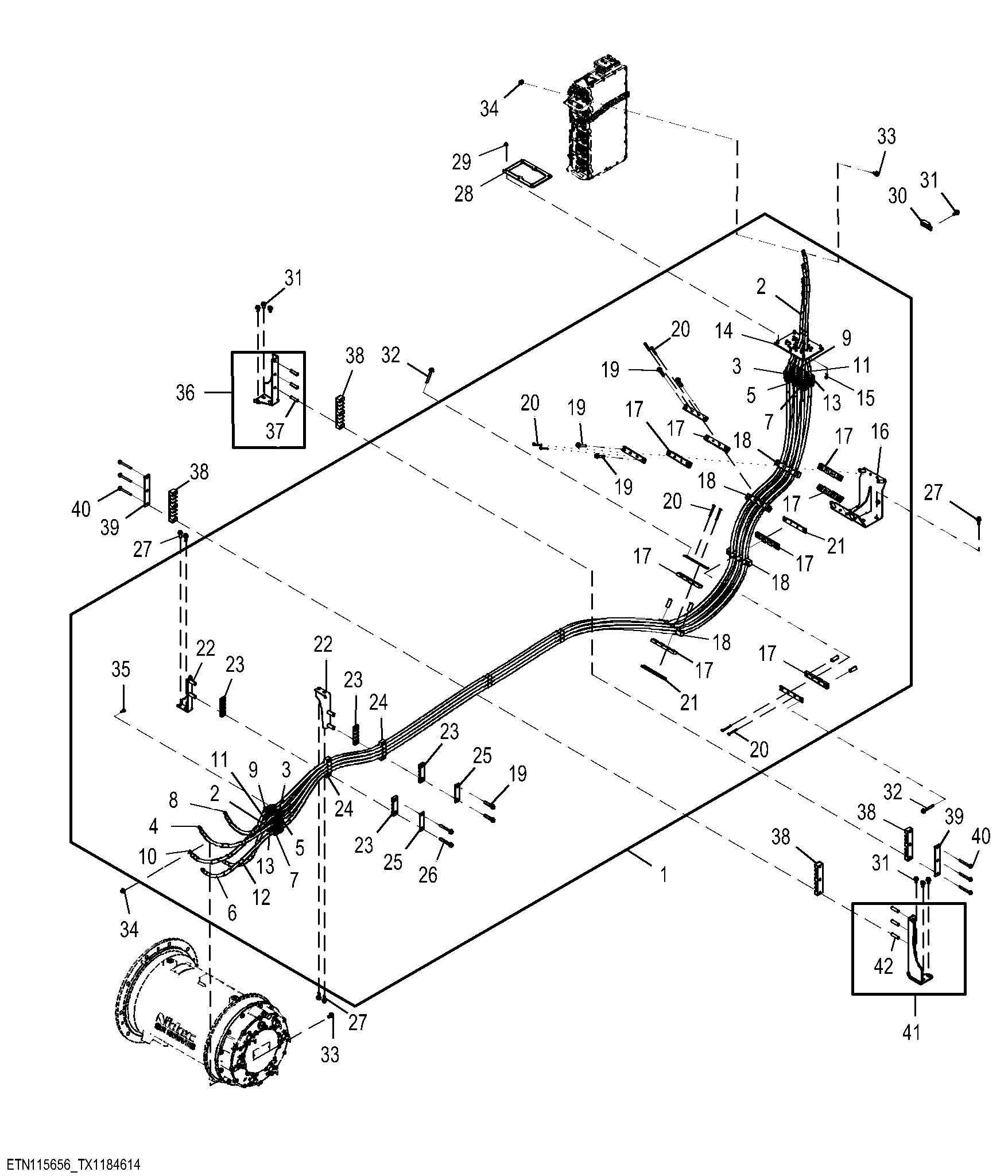

High Voltage Cables for Front Motor, Right-side

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT406768	1	Cable	-
2	AT406766	1	Cable	B POS
3	57M11298	2	Elec. Connector Housing	-
4	AT406764	1	Cable	C POS
5	57M11298	2	Elec. Connector Housing	-
6	AT406769	1	Cable	A POS
7	57M11298	2	Elec. Connector Housing	-
8	AT406770	1	Cable	B NEG
9	57M11298	2	Elec. Connector Housing	-
10	AT406767	1	Cable	C NEG
11	57M11298	2	Elec. Connector Housing	-
12	AT406765	1	Cable	A NEG
13	57M11298	2	Elec. Connector Housing	-
14	AT422156	1	Platform	-
15	19M7862	12	Screw	M6 X 20
16	AT437573	1	Bracket	ORDER AT509901
16	AT509901	1	Bracket	-
17	T346999	8	Half Clamp	-
18	T346998	4	Platform	-
19	19M7807	6	Screw	M10 X 60
20	19M8360	8	Cap Screw	M6 X 60
21	T292570	2	Clamp	-
22	AT437088	2	Bracket	-
23	T343262	4	Half Clamp	-
24	T343263	2	Platform	-
25	T343264	2	Strap	-
26	19M7810	2	Screw	M10 X 80
27	19M7786	8	Screw	M10 X 30
28	T326494	1	Seal	-
29	14M7298	6	Flange Nut	M8
30	T342620	1	Clamp	-
31	19M7784	7	Screw	M10 X 20
32	19M7809	4	Screw	M10 X 70
33	AT425779	12	Cap Screw	-
34	DC19765	12	Flange Nut	-
35	19M7775	12	Screw	M6 X 16
36	AT507642	1	Support	SUB FOR AT449935 AND AT474416
37	T240653	3	Bushing	-
38	T307411	4	Half Clamp	-
39	T346800	2	Strap	-
40	19M8039	6	Screw	M8 X 80
41	AT449936	1	Platform	-
42	T240653	3	Bushing	-

High Voltage Cables for Front Motor, Right-side

Нет текстового описания
