High Voltage Cables for Front Motor, Left-Side

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT406760	1	Cable	-
2	AT406762	1	Cable	A POS
3	57M11298	2	Elec. Connector Housing	-
4	AT406756	1	Cable	A NEG
5	57M11298	2	Elec. Connector Housing	-
6	AT406761	1	Cable	B POS
7	57M11298	2	Elec. Connector Housing	-
8	AT406757	1	Cable	B NEG
9	57M11298	2	Elec. Connector Housing	-
10	AT406758	1	Cable	C POS
11	57M11298	2	Elec. Connector Housing	-
12	AT406759	1	Cable	C NEG
13	57M11298	2	Elec. Connector Housing	-
14	AT422156	1	Platform	-
15	19M7862	12	Screw	M6 X 20
16	AT396382	1	Bracket	ORDER AT516184
16	AT516184	1	Bracket	-
17	T346999	8	Half Clamp	-
18	T346998	4	Platform	-
19	19M7807	6	Screw	M10 X 60
20	19M8360	8	Cap Screw	M6 X 60
21	T292570	2	Clamp	-
22	AT437368	2	Bracket	-
23	T343262	4	Half Clamp	-
24	T343263	2	Platform	-
25	T343264	2	Strap	-
26	19M7810	2	Screw	M10 X 80
27	19M7786	11	Screw	M10 X 30
28	T326494	1	Seal	-
29	14M7298	6	Flange Nut	M8
30	T342620	1	Clamp	-
31	19M7784	8	Screw	M10 X 20
32	19M7809	4	Screw	M10 X 70
33	AT425779	12	Cap Screw	-
34	DC19765	12	Flange Nut	-
35	19M7775	12	Screw	M6 X 16
36	AT396859	1	Bracket	-
37	AT397857	1	Bracket	-
38	RE345761	5	Swivel	-
39	R44302	10	Tie Band	-
40	AT440423	1	Ground Cable	Frame to Frame
41	24M7239	2	Washer	10.700 X 21 X 2.500 mm
42	T359736	1	Guide	Articulation Joint

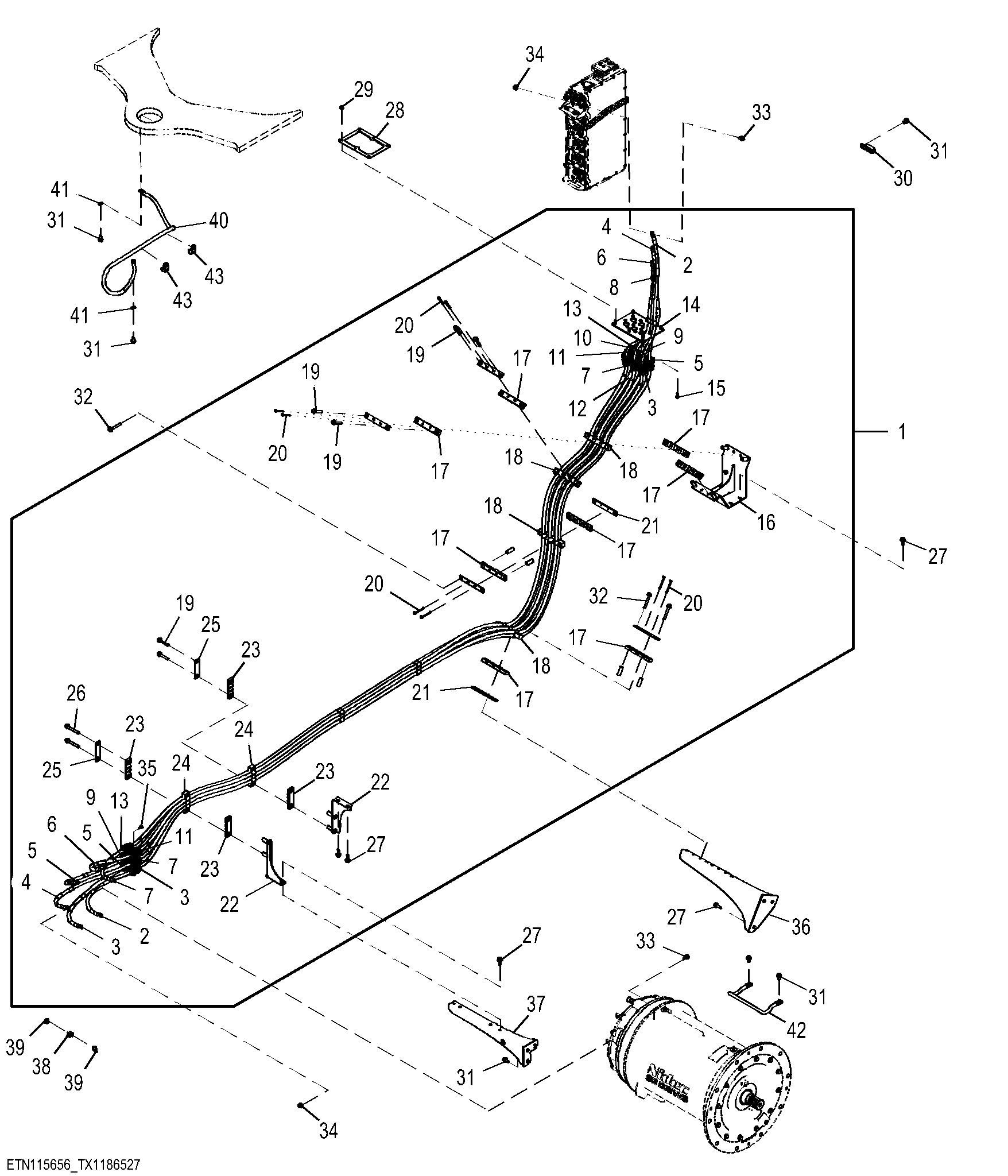

High Voltage Cables for Front Motor, Left-Side

Нет текстового описания
