Axle Cooling and Filtration Lines to Right-Side Cooler, Rear

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T339856	3	Strap	-
2	T339508	10	Half Clamp	-
3	T339565	3	Plate	-
4	AT411063	2	Filter Head	INCLUDES AT307045
4	P46051	1	O-Ring	-
4	AT307045	1	Pressure Switch	Differential Pressure Switch, INCLUDES P46051
5	AT367840	2	Oil Filter	-
6	38H1004	1	Elbow Fitting	-
7	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
8	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
9	AT320593	2	Fitting	-
10	38H1329	1	Adapter Fitting	-
11	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
12	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
13	38H1163	1	Adapter Fitting	-
14	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
15	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
16	64H1007	1	Drain Plug	-
17	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
18	38H5006	1	Adapter Fitting	-
19	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
20	51M7048	1	O-Ring	29.600 X 2.900 mm
21	38H5014	1	Adapter Fitting	-
22	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
23	51M7047	1	O-Ring	23.600 X 2.900 mm
24	38H1096	1	Elbow Fitting	-
25	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
26	U46219	6	Hose Clamp	-
27	AT455881	1	Oil Tube	-
28	AT434281	1	Oil Tube	-
29	AT434282	1	Oil Tube	-
30	AT455882	1	Oil Tube	-
31	AT435873	1	Oil Tube	-
32	AT435874	1	Oil Tube	-
33	AT436558	1	Oil Tube	-
34	AT436559	1	Oil Tube	-
35	AT437173	1	Oil Tube	-
36	AT437174	1	Oil Tube	-
37	AT434928	1	Hydraulic Hose	Fabricate
38	AT434929	1	Hydraulic Hose	Fabricate
39	AT434934	1	Hydraulic Hose	Fabricate
40	AT435028	1	Hydraulic Hose	Fabricate
41	AT435840	1	Hydraulic Hose	Fabricate
42	AT456455	1	Hydraulic Hose	Fabricate
43	AT456454	1	Hydraulic Hose	Fabricate
44	AT436555	1	Hydraulic Hose	Fabricate
45	AT436556	1	Hydraulic Hose	Fabricate
46	AT447167	1	Hydraulic Hose	Fabricate
47	H150982	4	Clamp	-
48	14M7396	1	Lock Nut	M8
49	H114901	1	Plate	-
50	19M8039	1	Screw	M8 X 80
51	AT359780	2	Clamp	-
52	T343908	2	Strap	-
53	T343905	8	Half Clamp	-
54	T343907	2	Plate	-
55	19M7786	6	Screw	M10 X 30
56	19M7807	2	Screw	M10 X 60
57	T344631	1	Strap	-
58	T344630	4	Half Clamp	-
59	T344629	1	Plate	-
60	19M9355	8	Screw	M8 X 105
61	19M7873	4	Screw	M8 X 110
62	19M7802	2	Screw	M8 X 65
63	19M7803	1	Screw	M8 X 70
64	19M7784	2	Screw	M10 X 20
65	AH226096	1	Clamp	-
66	19M7785	4	Screw	M10 X 25
67	14M7274	3	Nut	M10
68	T76938	5	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
69	T218003	2	Label	Axle / Gearbox Oil
70	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
71	19M7576	5	Screw	M10 X 30
72	28H3447	2	Spacer	0.546" X 0.840" X 7/16"
73	AT455972	1	Bracket	-
74	19M7805	1	Screw	M10 X 45
75	28H1495	1	Spacer	0.493" X 0.675" X 1"
76	AT456205	1	Oil Line	-
77	R213663	2	Clamp	-
78	38H5207	1	Elbow Fitting	-
79	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")

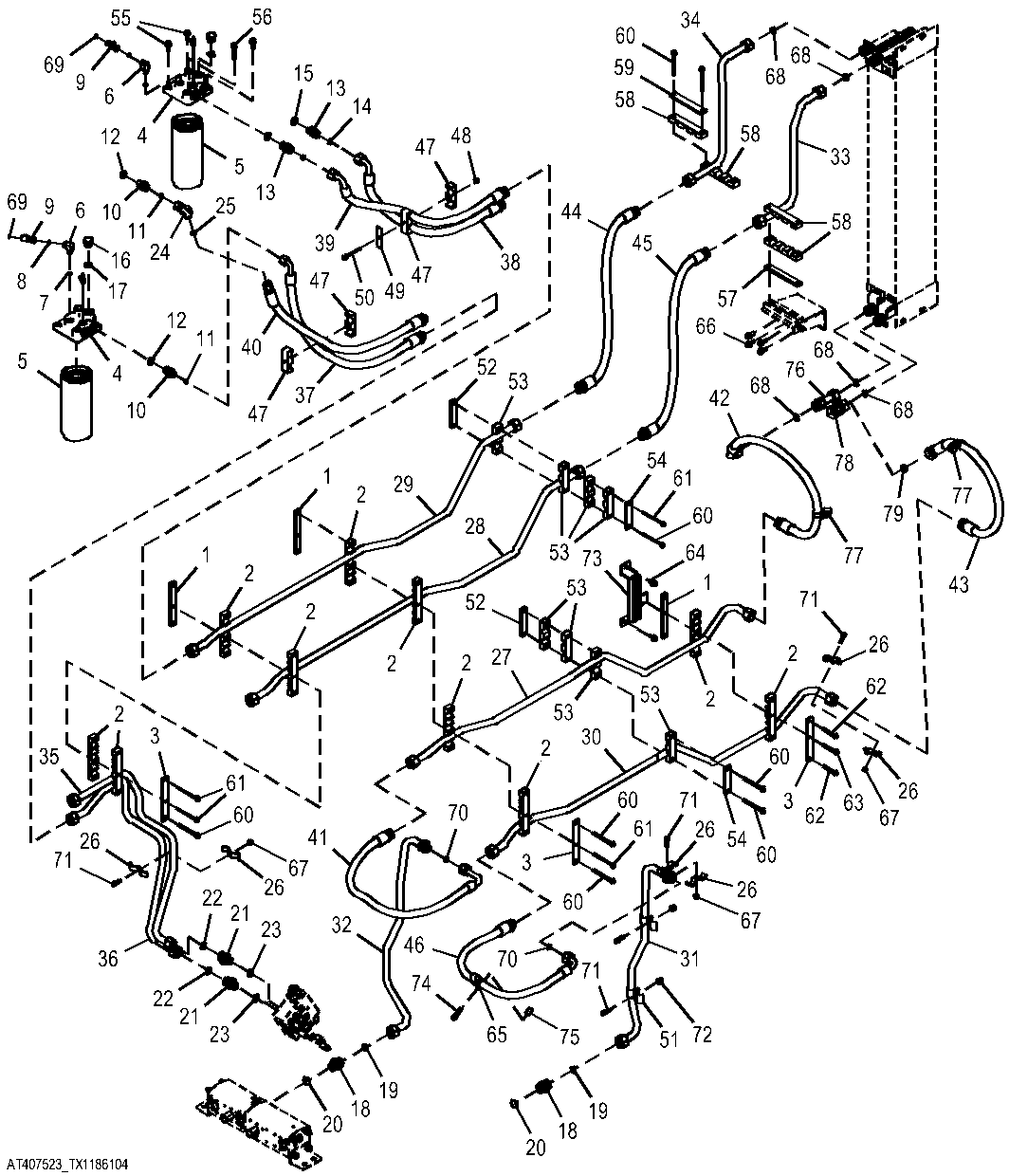

Axle Cooling and Filtration Lines to Right-Side Cooler, Rear
