Открытый узел

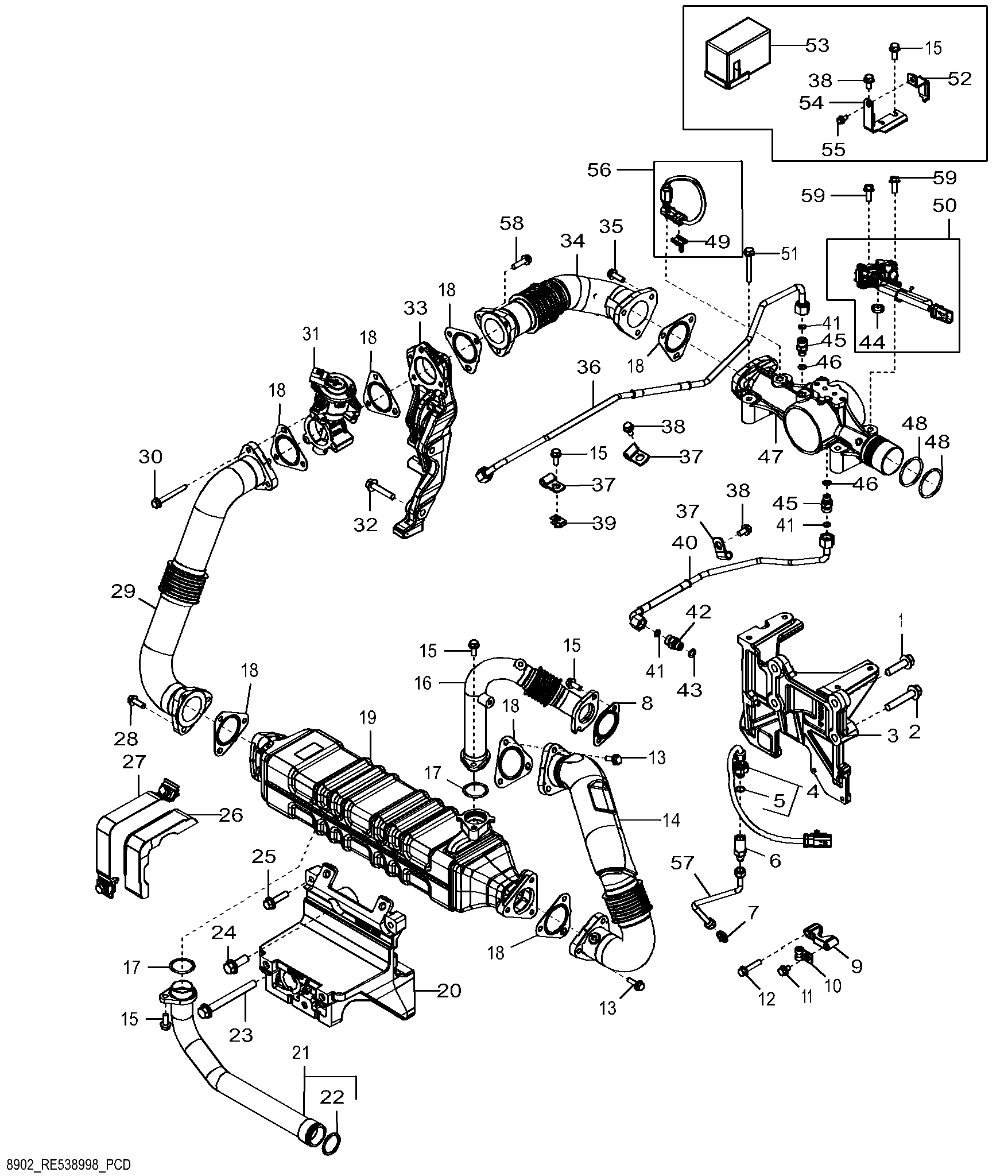

8902 Exhaust Gas Recirculation ( - 007190)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7813	2	Screw	M12 X 45
2	19M7816	2	Screw	M12 X 65
3	R529773	1	Bracket	Venturi Mounting
4	RE546986	1	Pressure Sensor	Exhaust Pigtail
5	51M7095	1	O-Ring	11.300 X 2.200 mm
6	R529704	1	Adapter Fitting	-
7	R27346	1	Fitting	-
8	R536559	1	Gasket	SUB FOR R532499
9	R532578	1	Clamp	MARKED R532578
10	T74410	1	Clamp	-
11	RE524730	1	Cap Screw	-
12	19M8317	1	Screw	M8 X 40
13	R542509	6	Cap Screw	-
14	RE570159	1	Pipe	Exhaust Gas Recirculation Hot Side, SUB FOR RE545469 OR RE549270
15	19M7866	5	Screw	M8 X 20
16	DZ115052	1	Tube	Coolant Return Exhaust Gas Recirculation Cooler to T-Stat with Bellows, SUB FOR RE546792
17	R532305	2	O-Ring	-
18	R526831	7	Gasket	Exhaust Gas Recirculation System
19	RE560118	1	Heat Exchanger	INCLUDES (2) R532305; SUB FOR RE544120 OR RE548254
20	R537836	1	Bracket	Exhaust Gas Recirculation Cooler, MARKED R537835; SUB FOR R529582
21	DZ101028	1	Tube	Coolant Supply, SUB FOR RE545943 OR RE546940
22	R551118	1	O-Ring	-
23	19M7821	2	Screw	M12 X 120
24	19M7790	3	Screw	M12 X 35
25	19M8162	2	Screw	M10 X 40
26	R529816	3	Pad	-
27	RE540902	3	Strap	Exhaust Gas Recirculation Cooler Support
28	19M7867	3	Screw	M8 X 25
29	RE542569	1	Pipe	Exhaust Gas Recirculation Cold Side
30	19M7803	3	Screw	M8 X 70
31	-	1	Part 31	ORDER RE536107
31	RE536107	1	Exhaust Gas Recycling Valve	-
32	19M8292	2	Screw	M10 X 50, SUB FOR APPL 19M8966
33	DZ117151	1	Bracket	MARKED DZ117149; SUB FOR RE542370
34	RE541928	1	Tube	Venturi Inlet
35	19M8063	3	Screw	M8 X 25
36	RE542310	1	Line	Venturi Coolant Return
37	AH76883	3	Clip	-
38	19M7865	2	Screw	M8 X 16
39	M84971	1	Nut	-
40	RE541344	1	Line	Venturi Coolant Supply
41	T77613	3	O-Ring	-
42	38H5002	1	Adapter Fitting	-
43	51M7041	1	O-Ring	11.300 X 2.200 mm
44	R529587	2	O-Ring	-
45	38H5008	2	Adapter Fitting	-
46	51M7040	2	O-Ring	9.300 X 2.200 mm
47	RE556335	1	Venturi	MARKED R537401; SUB FOR RE541505
48	R532009	2	O-Ring	-
49	57M9940	2	Elec. Connector Accessory	-
50	DZ105915	1	Pressure Sensor	Pigtail Exhaust Gas Recirculation Delta, SUB FOR RE546668
51	19M7801	4	Screw	M8 X 60
52	RE550035	1	Strap	USE WITH RE546668
53	R530070	1	Insulator	-
54	RE550034	1	Strap	USE WITH RE546668
55	19M7774	1	Screw	M6 X 12, USE WITH RE550034
56	RE546613	1	Sensor	Pigtail Exhaust Gas Recirculation
57	RE548217	1	Line	Pressure Sensor
58	19M7868	3	Screw	M8 X 30
59	RE67238	2	Screw	-

8902 Exhaust Gas Recirculation ( - 007190)

Нет текстового описания
