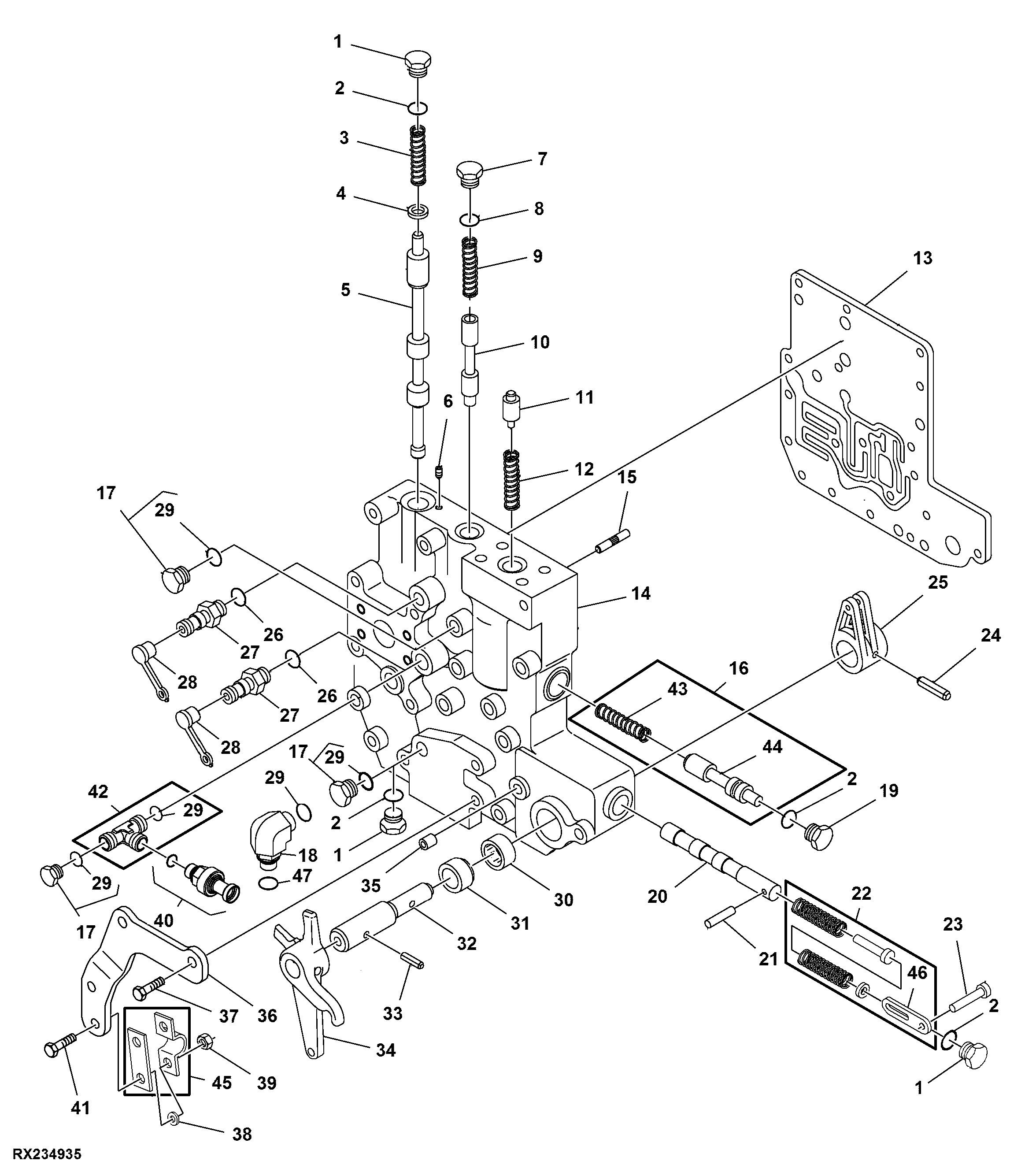

Transmission Control Valve Housing And Valves (W/O PTO)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T22867	3	Drain Plug	-
2	R26375	3	O-Ring	-
3	R83621	1	Spring	-
4	R1111R	1	Shim	TK = 0.508 mm
5	R104575	1	Valve	Pressure Regulating
6	15H560	1	Pipe Plug	1/16"
7	R27474	1	Drain Plug	-
8	R26906	1	O-Ring	-
9	A4580R	1	Spring	-
10	R63734	1	Valve	Lube Reduction
11	R73705	1	Piston	-
12	R57374	1	Spring	-
13	R84085	1	Gasket	-
14	R100738	1	Housing	-
15	R43476	1	Dowel Pin	-
16	RE65266	1	Valve	Engagement Override ORDER R129719 AND R129720
17	RE46684	1	Fitting Plug	-
18	38H5016	1	Elbow Fitting	(DIFFERENTIAL LOCK)
19	R39112	1	Fitting	-
20	R100739	1	Valve	Clutch Control Valve
21	U44359	1	Dowel Pin	-
22	RE63397	1	Valve Kit	-
23	R58941	1	Pin Fastener	-
24	34H313	1	Spring Pin	1/4" X 1-1/8"
25	R62043	1	Arm	-
26	R26448	3	O-Ring	-
27	RE190805	2	Diagnostic Coupling	-
28	R77175	2	Cover	-
29	51M7041	1	O-Ring	11.300 X 2.200 mm
30	JD8801	1	Needle Bearing	-
31	AT12820	1	Seal	-
32	R83625	1	Shaft	-
33	34H331	1	Spring Pin	5/16" X 1-1/2"
34	R129272	1	Arm	-
35	R52516	1	Bushing	-
36	R129333	1	Bracket	-
37	19M7274	20	Cap Screw	M8 X 70
38	24M7336	2	Washer	9 X 16 X 1.600 mm
39	14H785	1	Nut	5/16", 5/16"
40	RE217077	1	Trans Oil Pressure Sensor	-
41	19H1849	2	Cap Screw	5/16" X 1-1/4", 5/16"X1-1/4"
42	RE61274	1	Tee Fitting	-
43	R129719	1	Compression Spring	-
44	R129720	1	Valve	-
45	AH138519	1	Repair Kit	-
46	R258582	1	Link	-
47	T77613	1	O-Ring	(DIFFERENTIAL LOCK)

Transmission Control Valve Housing And Valves (W/O PTO)
