Открытый узел

Selective Control Valve Lines (High Flow)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

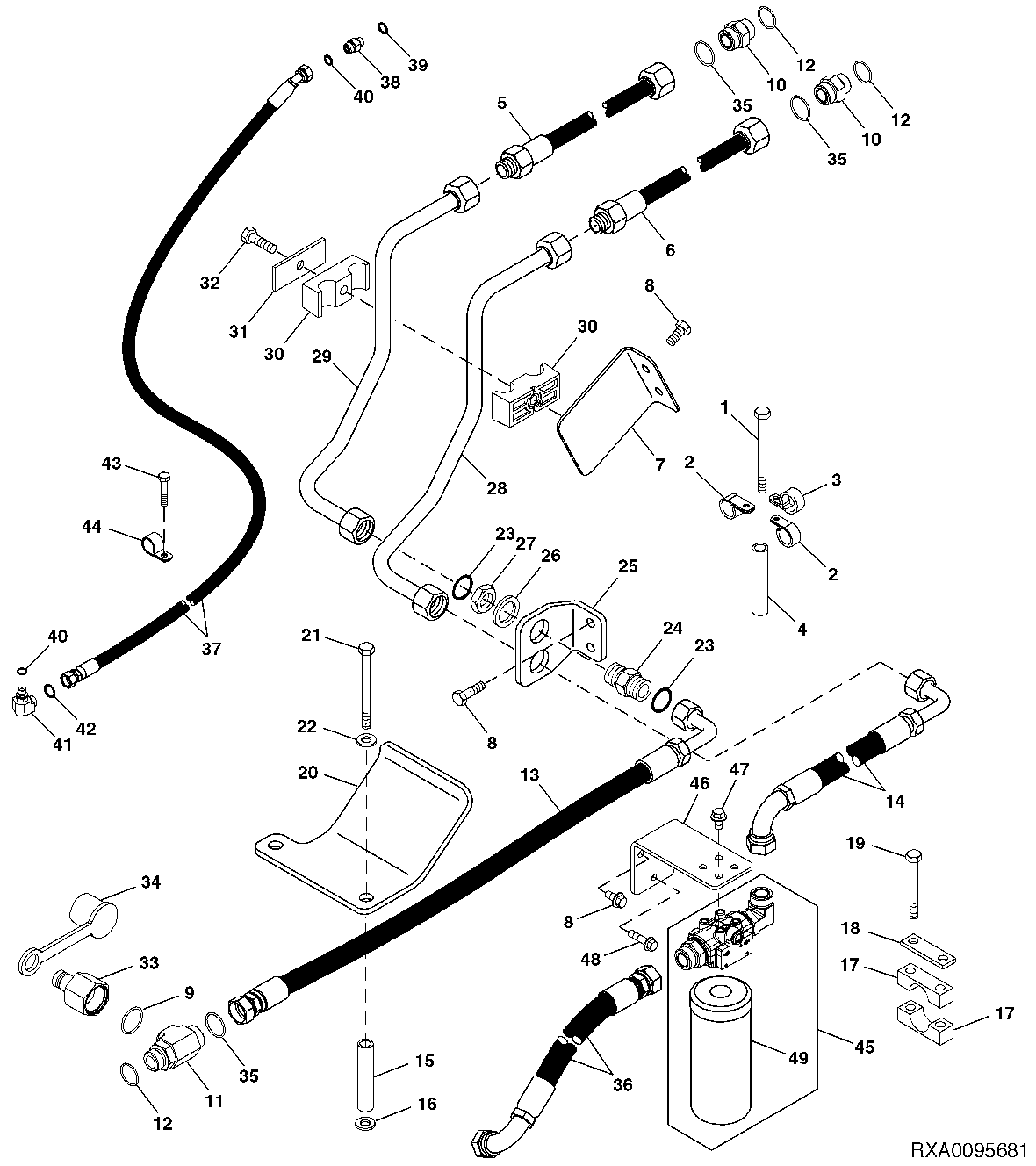

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7658	1	Cap Screw	M10 X 50
2	AH77714	2	Clip	-
3	R114103	1	Clamp	-
4	28H3387	1	Bushing	0.493" X 0.675" X 1-1/4"
5	RE288855	1	Hydraulic Hose	(W/ HITCH)
5	RE211291	1	Hydraulic Hose	(W/O HITCH)
6	RE288854	1	Hydraulic Hose	(W/ HITCH)
6	RE211292	1	Hydraulic Hose	(W/O HITCH)
7	RE211397	1	Bracket	(CAST GUDGEON WITH 2.5" PIN)
8	19M7784	4	Screw	(CAST GUDGEON WITH 2.5" PIN) M10 X 20
9	T77857	5	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
10	38H5006	1	Adapter Fitting	(HEAVY DUTY GUDGEON WITH 3" PIN)
11	38H5256	1	Adapter Fitting	(HEAVY DUTY GUDGEON WITH 3" PIN)
12	51M7048	1	O-Ring	(HEAVY DUTY GUDGEON WITH 3" PIN) 29.600 X 2.900 mm
13	RE255161	1	Hydraulic Hose	-
14	RE255162	1	Hydraulic Hose	-
15	28H3448	1	Bushing	0.546" X 0.840" X 3-1/2"
16	24M7180	1	Washer	13 X 37 X 3 mm
17	R207294	4	Block Clamp	-
18	T164017	2	Plate	-
19	19M8836	4	Cap Screw	M8 X 65
20	R214116	1	Hose Support	-
21	19M7914	2	Cap Screw	M12 X 120
22	24M7345	2	Washer	13.500 X 24 X 2.500 mm
23	T78612	4	O-Ring	-
24	38H5256	1	Adapter Fitting	-
24	38H1288	1	Union Fitting	-
25	R211297	1	Support	-
26	24H1570	2	Washer	1-25/32" X 2-1/4" X 0.120"
27	T78714	2	Nut	-
28	RE211289	1	Oil Line	-
29	RE211290	1	Oil Line	-
30	H114898	2	Clamp	-
31	H114901	1	Plate	-
32	19M7801	1	Screw	M8 X 60
33	RE43774	1	Diagnostic Coupling	-
34	R77175	1	Cover	-
35	T76938	1	O-Ring	-
36	RE255160	1	Hydraulic Hose	-
37	RE255550	1	Hydraulic Hose	-
38	38H5002	1	Adapter Fitting	-
39	51M7041	1	O-Ring	11.300 X 2.200 mm
40	T77613	2	O-Ring	-
41	38H5022	1	Elbow Fitting	-
42	51M7040	1	O-Ring	9.300 X 2.200 mm
43	19M7658	1	Cap Screw	M10 X 50
44	R114103	1	Clamp	-
45	RE247636	1	Filter Head	-
46	R247440	1	Support	-
47	19M7783	4	Screw	M10 X 16
48	19M8162	1	Screw	M10 X 40
49	T175002	1	Hydraulic Filter	-
50	28H3383	1	Bushing	0.493" X 0.675" X 3/4"

Selective Control Valve Lines (High Flow)
