SCV COUPLERS (SCRAPER TRACTOR HIGH FLOW)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

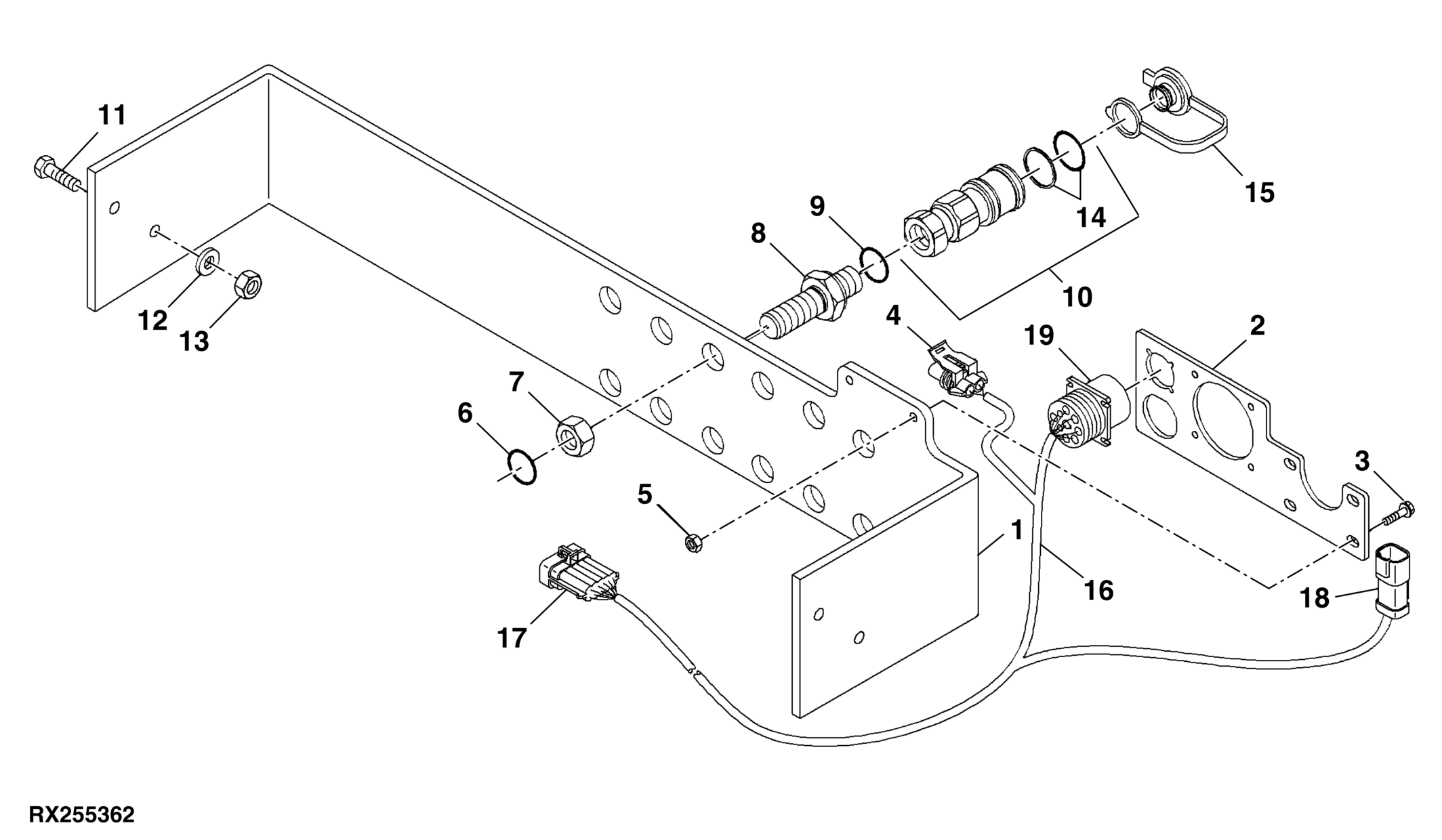

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R283744	1	Support	(4 SCV Scraper Tractor) (6 SCV Scraper Tractor) SUB FOR R200294
2	R285963	1	Bracket	SUB FOR R219415
3	19M7797	2	Screw	M6 X 40
4	57M7254	1	Elec. Connector Housing	Draft Sensor Calibration
5	14M7396	4	Lock Nut	M8
6	T77858	8	O-Ring	-
7	T78707	8	Nut	(4 SCV Scraper Tractor) (D)
7	T78707	12	Nut	(6 SCV Scraper Tractor)
8	RE197687	8	Adapter Fitting	(4 SCV Scraper Tractor) (D)
8	RE197687	12	Adapter Fitting	(6 SCV Scraper Tractor)
9	F3171R	8	O-Ring	(D)
10	RE195592	8	Quick Coupler	(4 SCV Scraper Tractor) (D)
10	RE195592	12	Quick Coupler	(6 SCV Scraper Tractor)
11	19M7813	4	Screw	M12 X 45
12	24M7226	4	Washer	13 X 35 X 5 mm
13	14M7275	4	Nut	M12
14	RE211003	1	Seal Kit	(D)
15	R196768	8	Plug	(4 SCV Scraper Tractor)
15	R196768	12	Plug	(6 SCV Scraper Tractor)
16	RE262950	1	Chassis Wiring Harness	(AutoLoad™)
16	RE291744	1	Wiring Harness	(6 SCV Scraper Tractor)
17	57M7265	1	Elec. Connector Housing	Chassis In-Line
18	57M7628	1	Electrical Connector Assy	Draft Sensor
19	57M9654	1	Elec. Connector Terminal	Option Connector
..	RE276345	1	Field Installation Kit	INCLUDES RE262950 AND R270380; ORDER RE291744
..	RE292208	1	Field Installation Kit	5TH AND 6TH HIGH FLOW SCV KIT
..	RE297144	1	Field Installation Kit	INCLUDES KEY MARKED AS D, ORDER COMPONENTS

SCV COUPLERS (SCRAPER TRACTOR HIGH FLOW)
