Открытый узел

Controllers (HCU/SCU, CCU, ECU, SCO)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

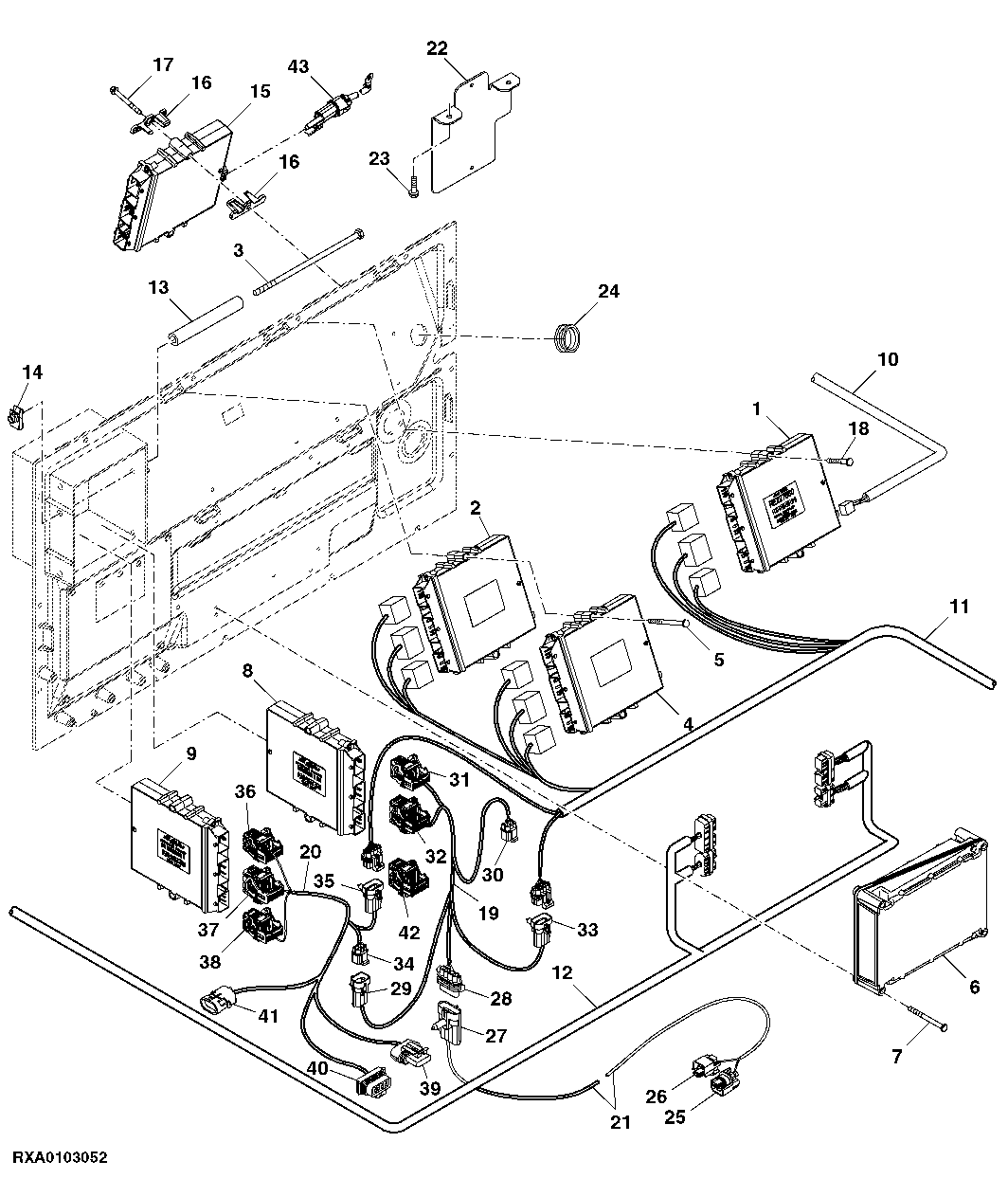

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE299834	1	Vehicle Controller	-
2	RE260494	1	Electrohydraulic Controller	-
3	08H4804	2	Bolt	1/4" X 7"
4	RE520953	1	Engine Controller	-
4	SE502801	1	Engine Controller Reman	REMAN FOR RE520953
4	RE520954	1	Engine Controller	-
5	R219318	1	Screw	-
6	YZ502340	1	Transmission Controller	-
7	R124359	4	Screw	-
8	RE219046	1	Electronic Control Unit	MARKED RE251741
8	PG200308	1	SCV Controller Reman	(REMANUFACTURED <service-part>RE251741</service-part>)
9	PG200299	1	Steering Controller	SUB FOR RE251348
9	PG200305	1	Steering Controller Reman	(Remanufactured)
10	-	1	Part 14	-
11	-	1	Part 15	-
11	RE306141	1	Harness Kit	-
12	-	1	Part 17	-
13	-	1	Part 18	116MM, (CUT FROM TY22552)
14	H102554	2	Nut	-
15	RE210850	1	Electronic Control Unit	Implement Gateway/Cab Load Center (CLC)/TECU
15	PG200304	1	Elec Control Unit Reman	(REMANUFACTURED <service-part>RE210850</service-part>)
16	R231112	4	Isolator	-
17	37M7232	2	Screw	M6 X 55
18	R219317	2	Screw	-
19	RE247544	1	Chassis Wiring Harness	-
20	RE227800	1	Wiring Harness	-
21	RE252134	1	Wiring Harness	-
22	R228251	1	Bracket	-
23	19M8649	2	Screw	M6 X 20
24	R71351	1	Grommet	-
25	57M8924	1	Elec. Connector Housing	RETRACT
25	57M8633	1	Elec. Connector Accessory	-
26	57M8924	1	Elec. Connector Housing	EXTEND
26	57M8633	1	Elec. Connector Accessory	-
27	57M7839	1	Electrical Connector Assy	SCV-6
27	57M7469	1	Electrical Connector Assy	-
28	57M7840	1	Elec. Connector Housing	SCV-6
28	57M7469	1	Electrical Connector Assy	-
29	57M7263	1	Elec. Connector Housing	CAN BACKBONE
29	57M7291	1	Electrical Connector Assy	-
30	57M7260	1	Elec. Connector Housing	CAN TERMINATOR
30	57M7291	1	Electrical Connector Assy	-
31	57M8521	1	Elec. Connector Housing	J1
32	57M8526	1	Elec. Connector Housing	J2
33	57M7282	1	Elec. Connector Housing	CHASSIS
34	57M7260	1	Elec. Connector Housing	CAN TERMINATION
34	57M7291	1	Electrical Connector Assy	-
35	57M7264	1	Elec. Connector Housing	CHASSIS IN-LINE
35	57M7283	1	Elec.Connect Locking Device	-
36	57M8521	1	Elec. Connector Housing	J3
37	57M8526	1	Elec. Connector Housing	J2
38	57M8518	1	Elec. Connector Housing	J1
39	57M8851	1	Elec. Connector Housing	WHEEL ANGLE
40	57M7262	1	Elec. Connector Housing	SID
40	57M7281	1	Elec.Connect Locking Device	-
41	57M7263	1	Elec. Connector Housing	CAN BACKBONE
41	57M7291	1	Electrical Connector Assy	-
42	RE254659	1	Elec. Connector Cavity Plug	(6 SCV SCRAPER TRACTOR)
43	RE234018	1	Battery Cable	-
..	RE292208	1	Field Installation Kit	5TH AND 6TH HIGH FLOW SCV KIT

Controllers (HCU/SCU, CCU, ECU, SCO)

Нет текстового описания
