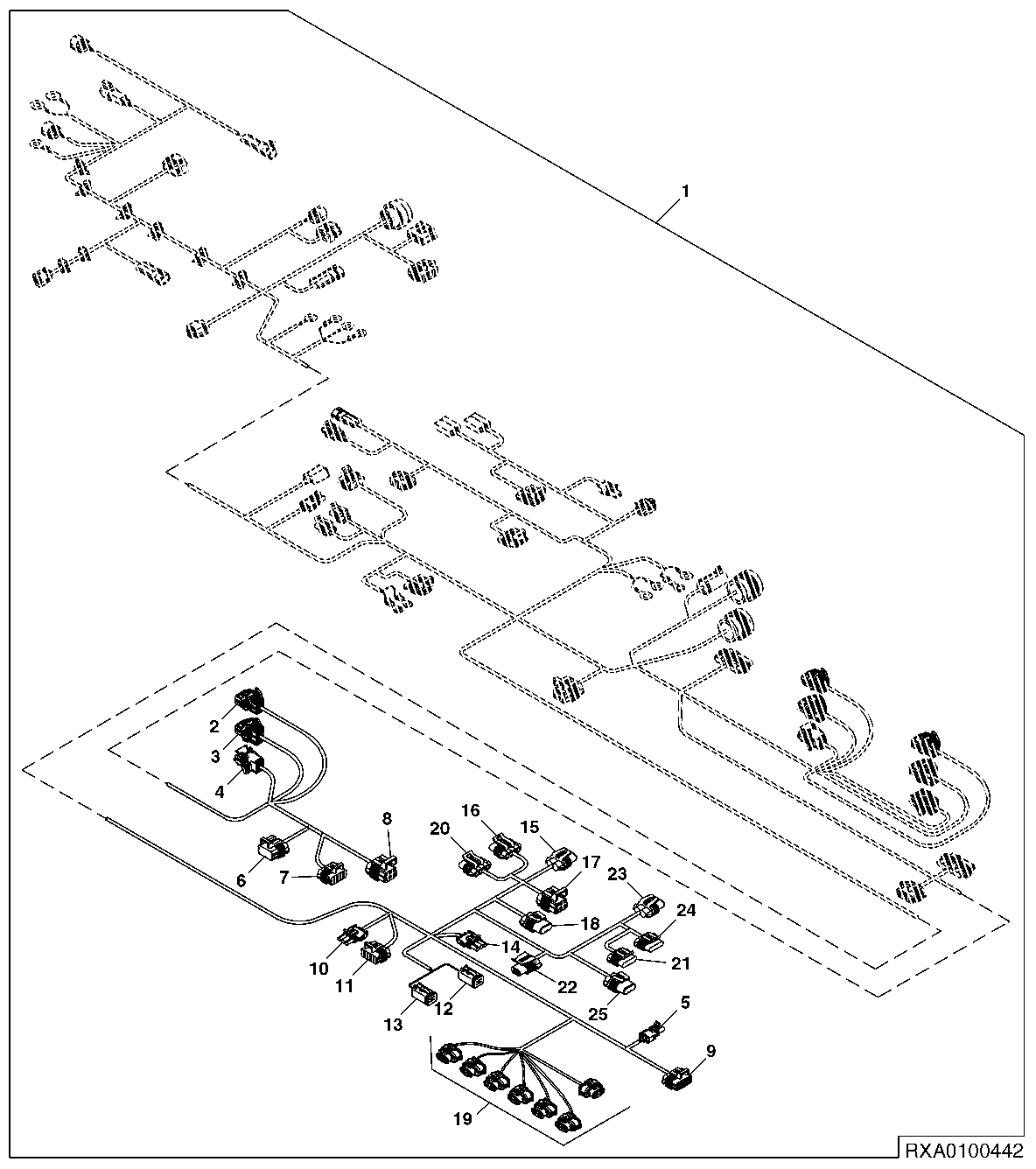

Chassis Wiring Harness Connectors, (Export) (Non-Certified) (3/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE307562	1	Chassis Wiring Harness	-
2	57M8519	1	Elec. Connector Housing	ECU (J1)
3	57M8527	1	Elec. Connector Housing	ECU (J2)
4	57M8523	1	Elec. Connector Housing	ECU (J3)
5	RE12363	1	Electrical Connector Assy	Implement Switch
6	57M7261	1	Elec. Connector Housing	AutoTrac™
6	57M7296	1	Elec. Connector Accessory	-
7	57M9377	1	Elec. Connector Housing	Transmission Connection
7	57M8035	1	Nut	-
7	57M9061	1	Elec.Connect Locking Device	-
8	RE207311	1	Electronic Control Unit	-
8	57M7291	1	Electrical Connector Assy	-
8	57M7260	1	Elec. Connector Housing	Cant Termination
9	-	1	Part 14	Trailer Outlet
10	RE12364	1	Electrical Connector Assy	Draft Sensor
11	57M7262	1	Elec. Connector Housing	Rear Axle
12	R201059	1	Housing	IMP Connector
12	R208787	1	Seal	-
12	57M8884	1	Elec. Connector Accessory	-
13	57M8015	1	Electrical Connector Assy	Greenstar Break Away
14	RE12364	1	Electrical Connector Assy	Rockshaft Position
15	57M8129	1	Elec. Connector Terminal	-
15	57M8839	1	Elec. Connector Housing	Left Rear In FF
16	-	1	Part 24	Left Tailer Brake
16	57M9211	1	Elec.Connect Locking Device	-
17	57M7260	1	Elec. Connector Housing	External Raise / Lower Switch
17	57M7291	1	Electrical Connector Assy	-
18	57M8839	1	Elec. Connector Housing	Left Rear Out FF
18	57M8129	1	Elec. Connector Terminal	-
19	57M9498	1	Elec. Connector Housing	Hitch &amp; SCV'S
19	57M9500	1	Elec. Connector Accessory	-
19	57M9499	1	Elec. Connector Accessory	-
20	57M9211	1	Elec.Connect Locking Device	-
20	-	1	Part 33	-
21	-	1	Part 35	-
21	57M9211	1	Elec.Connect Locking Device	-
22	57M7254	1	Elec. Connector Housing	Backup Alarm
22	57M7289	1	Elec.Connect Locking Device	-
23	57M8839	1	Elec. Connector Housing	Right Rear In FF
23	57M8129	1	Elec. Connector Terminal	-
24	-	1	Part 41	Right Tail / Brake
24	57M9211	1	Elec.Connect Locking Device	-
25	57M8839	1	Elec. Connector Housing	Right Rear Out FF
25	57M8129	1	Elec. Connector Terminal	-

Chassis Wiring Harness Connectors, (Export) (Non-Certified) (3/3)
