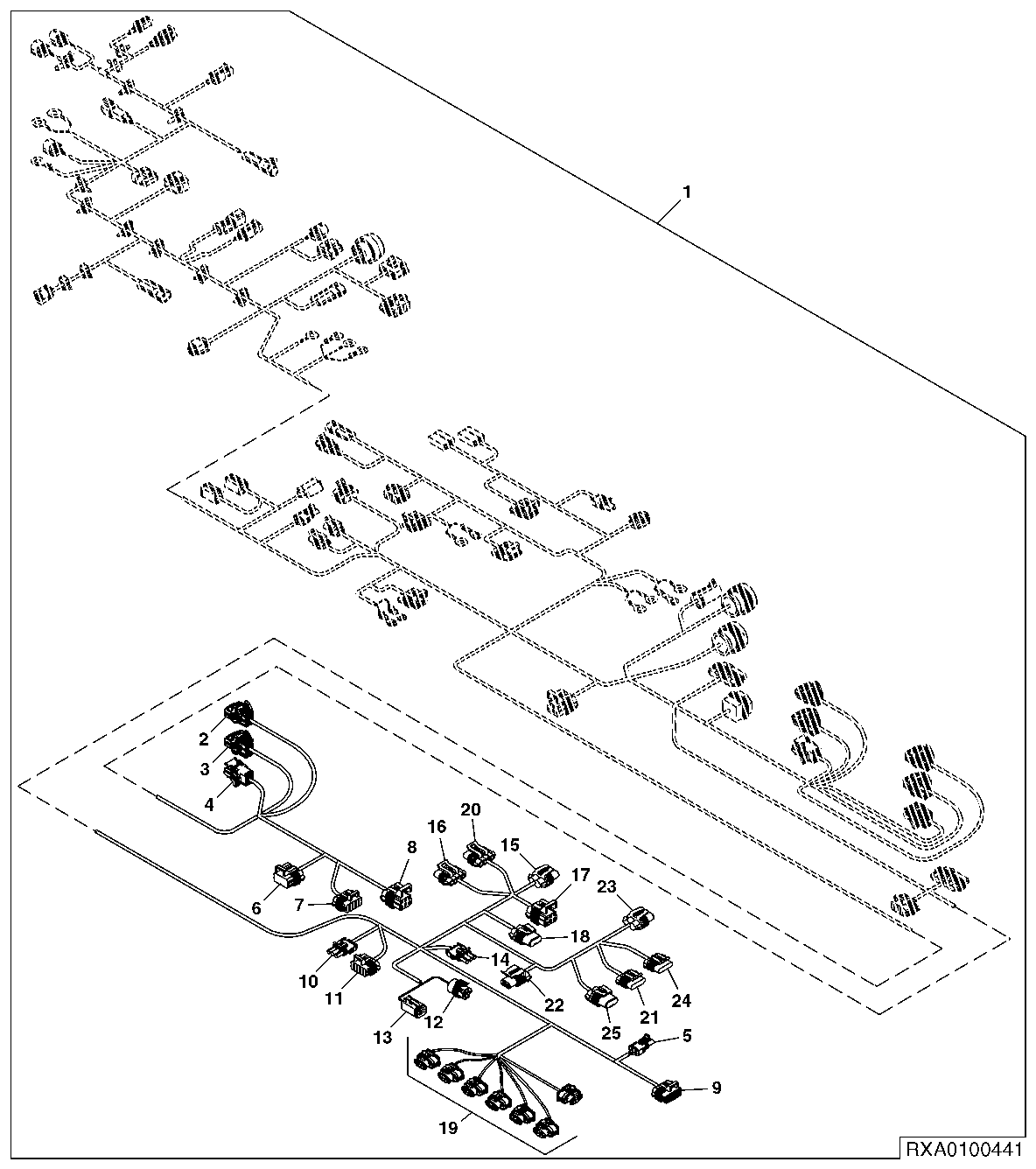

CHASSIS WIRING HARNESS CONNECTORS (3/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE307555	1	Chassis Wiring Harness	-
2	57M8519	1	Elec. Connector Housing	ECU(J1)
3	57M8527	1	Elec. Connector Housing	ECU(J2)
4	57M8523	1	Elec. Connector Housing	ECU(J3)
5	RE12363	1	Electrical Connector Assy	IMPLEMENT SWITCH
6	57M7261	1	Elec. Connector Housing	AUTO TRACK
6	57M7296	1	Elec. Connector Accessory	-
7	57M9377	1	Elec. Connector Housing	TRANSMISSION CONNECTION
7	57M8035	1	Nut	-
7	57M9061	1	Elec.Connect Locking Device	-
8	RE207311	1	Electronic Control Unit	-
8	57M7291	1	Electrical Connector Assy	-
8	57M7260	1	Elec. Connector Housing	CANT TERMINATION
9	AR75695	1	Socket Outlet	TRAILER OUTLET
10	RE12364	1	Electrical Connector Assy	DRAFT SENSOR
11	57M7262	1	Elec. Connector Housing	REAR AXLE
12	R201059	1	Housing	IMP CONNECTOR
12	R208787	1	Seal	-
12	57M8844	1	Elec.Connect Locking Device	-
13	57M8015	1	Electrical Connector Assy	GREENSTAR BREAK AWAY
14	RE12364	1	Electrical Connector Assy	ROCKSHAFT POS
15	57M8129	1	Elec. Connector Terminal	-
15	57M8839	1	Elec. Connector Housing	LEFT REAR IN FF
16	-	1	Part 24	LEFT TAIL/LAMP
16	57M9211	1	Elec.Connect Locking Device	-
17	57M7260	1	Elec. Connector Housing	EXTERNAL RAISE/LOWER SWITCH
17	57M7291	1	Electrical Connector Assy	-
18	57M8839	1	Elec. Connector Housing	LEFT REAR OUT FF
18	57M8129	1	Elec. Connector Terminal	-
19	57M9498	7	Elec. Connector Housing	HITCH & SCV'S
19	57M9500	7	Elec. Connector Accessory	-
19	57M9499	7	Elec. Connector Accessory	-
20	57M9211	1	Elec.Connect Locking Device	-
20	-	1	Part 33	SECONDARY BRAKE PRESSURE
21	-	1	Part 35	SECONDARY BRAKE PROPORTIONAL
21	57M9211	1	Elec.Connect Locking Device	-
22	57M7254	1	Elec. Connector Housing	BACKUP ALARM
22	57M7289	1	Elec.Connect Locking Device	-
23	57M8839	1	Elec. Connector Housing	RIGHT REAR IN FF
23	57M8129	1	Elec. Connector Terminal	-
24	57M9211	1	Elec.Connect Locking Device	RIGHT TAIL/BRAKE
24	57M9211	1	Elec.Connect Locking Device	-
25	57M8839	1	Elec. Connector Housing	RIGHT REAR OUT FF
25	57M8129	1	Elec. Connector Terminal	-

CHASSIS WIRING HARNESS CONNECTORS (3/3)
