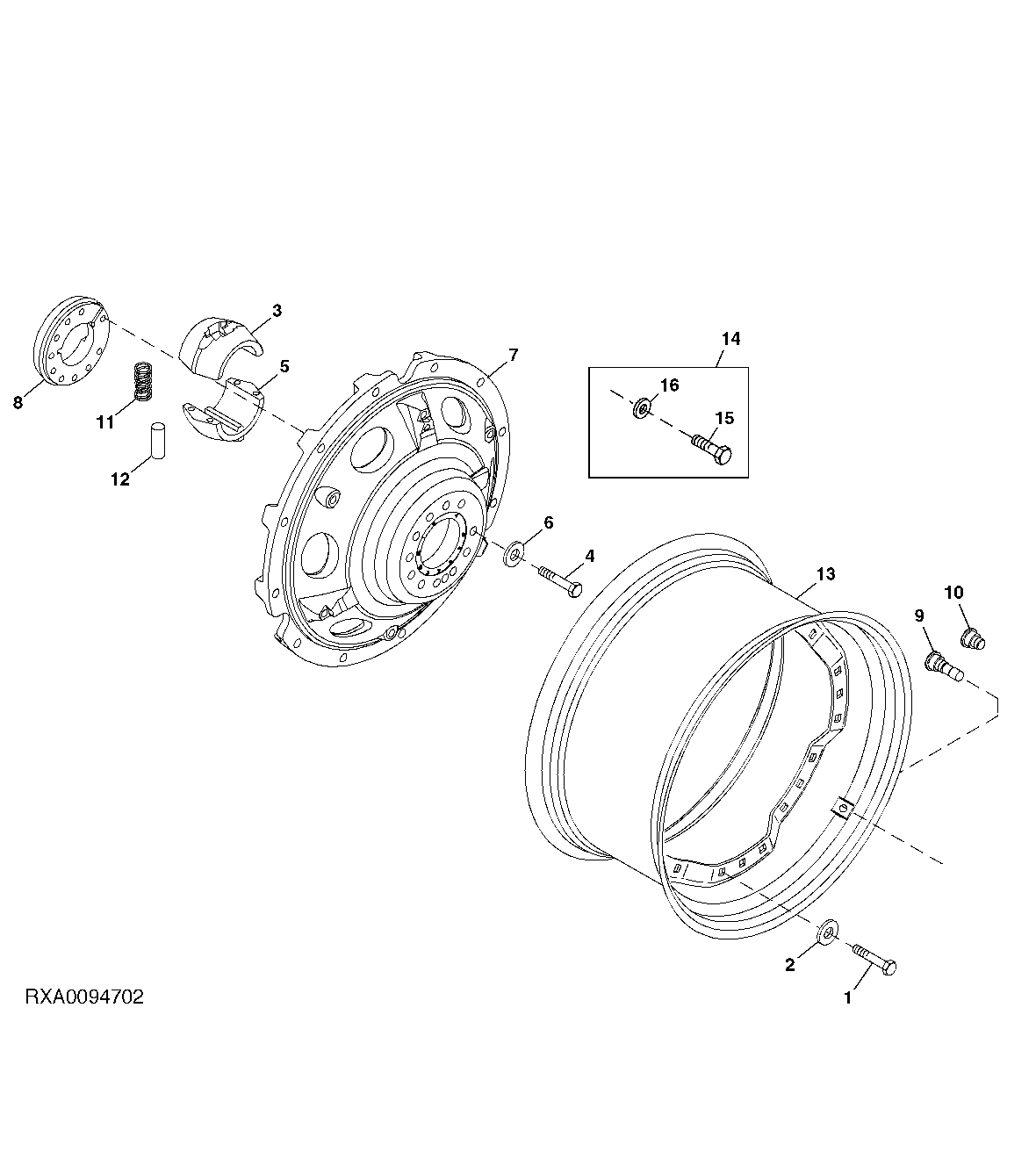

CAST WHEELS (HEAVY DUTY)(110 MM AXLES)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R131667	12	Cap Screw	M22 X 70 X 2.5
2	R52006	12	Washer	-
3	R192509	1	Half Sleeve	-
4	R111434	12	Cap Screw	M22 X 130
5	R192510	1	Half Sleeve	(KEY HALF)
6	R52006	12	Washer	-
7	R567131	1	Hub	SUB FOR R561561 OR R303741 OR R243061
8	R567134	1	Hub	SUB FOR R561560 OR R243063
9	AT25226	1	Tire Valve Stem	-
9	AH86866	1	Plug	-
10	R182940	2	Cap Screw	-
11	R51719	4	Compression Spring	-
12	34M7275	4	Spring Pin	10 X 30 mm
13	RE267760	1	Rim And Wheel Center	(FOR TIRE SIZE) (DUALS) (800/70R38) (40K)
13	RE262592	1	Wheel	(FOR TIRE SIZE) (DUALS) (700/70R42 ) (40K)
13	RE164038	1	Wheel	(FOR TIRE SIZE) (480/80R50)
13	RE275968	1	Wheel	(FOR TIRE SIZE) (DUALS) (650/85R38) (40K)
13	RE283140	1	Wheel	(FOR TIRE SIZE) (650/85R38) (40K)
13	RE283141	1	Wheel	(FOR TIRE SIZE) (700/70R42 ) (40K)
13	RE267759	1	Rim	(FOR TIRE SIZE) (800/70R38) (40K)
13	RE224262	1	Wheel	(FOR TIRE SIZE) (REGION 2 AND AUSTRALIA) (710/70R42)
13	RE175488	1	Rim	(FOR TIRE SIZE) (FOR NORTH AMERICA ONLY) (710/70R42)
13	RE175536	1	Wheel	(FOR TIRE SIZE) (480/80R46) (18.4R46)
13	RE311098	1	Wheel	(FOR TIRE SIZE) (800/70R38), (SUB FOR RE171073)
13	RE174387	1	Wheel	(FOR TIRE SIZE) (620/70R46)
13	RE175484	1	Wheel	(FOR TIRE SIZE) (520/85R42) (20.8R42) (20.8-42)
13	RE175533	1	Wheel	(FOR TIRE SIZE) (520/85R46)
14	RE201957	1	Wheel Kit	-
15	R201955	10	Cap Screw	-
16	R177903	10	Spring Washer	-

CAST WHEELS (HEAVY DUTY)(110 MM AXLES)
