Открытый узел

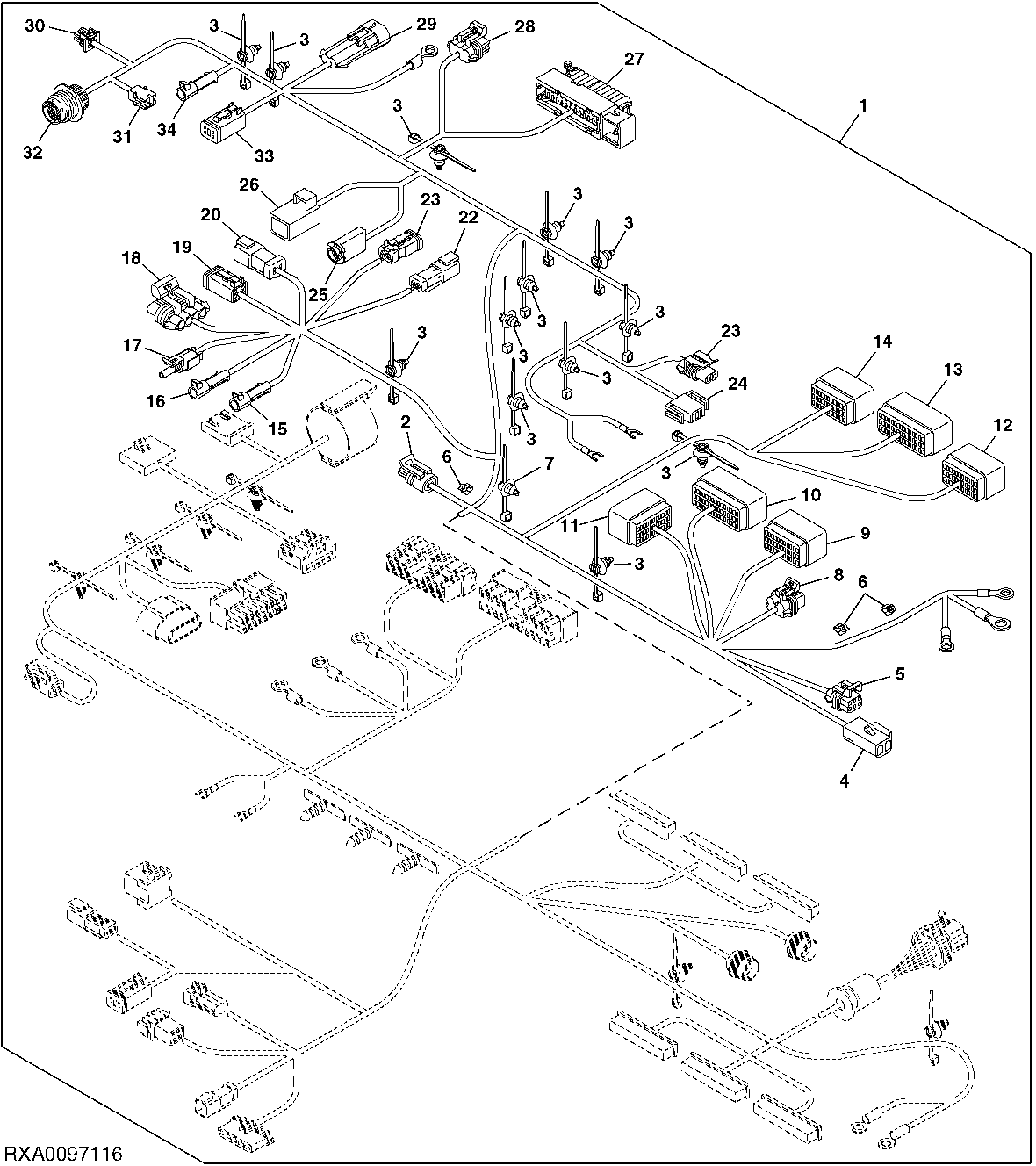

Cab Wiring Harness Connectors (2/2) (MST)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE282366	1	Cab Wiring Harness	(NAV)(SUB FOR RE227759)
2	57M7254	1	Elec. Connector Housing	PRESSURIZER MOTOR
2	57M7289	1	Elec.Connect Locking Device	-
3	RE258807	14	Tie Band	-
4	57M7785	1	Elec. Connector Housing	BACK LIGHTING
4	57M7724	1	Electrical Connector Assy	-
5	57M7260	1	Elec. Connector Housing	A/C SYSTEM
5	57M7291	1	Electrical Connector Assy	-
6	57M9237	2	Clip	-
7	H214955	1	Clamp	-
8	57M7696	1	Elec. Connector Housing	A/C SYSTEM
8	57M7698	1	Elec. Connector Terminal	-
9	57M8519	1	Elec. Connector Housing	TECU CONNECTOR J1
10	57M8527	1	Elec. Connector Housing	TECU CONNECTOR J2
11	57M8520	1	Elec. Connector Housing	TECU CONNECTOR J3
12	57M8519	1	Elec. Connector Housing	FCC 32 WAY CINCH J1
13	57M8527	1	Elec. Connector Housing	FCC 48 WAY CINCH J2
14	57M8523	1	Elec. Connector Housing	FCC 32 WAY CINCH J3
15	57M7294	1	Elec. Connector Housing	GPS
15	57M7295	1	Elec.Connect Locking Device	-
16	57M7294	1	Elec. Connector Housing	RADAR
16	57M7295	1	Elec.Connect Locking Device	-
17	57M7293	1	Elec. Connector Housing	RADAR FOR ISO 11786
17	57M7295	1	Elec.Connect Locking Device	-
18	57M7840	1	Elec. Connector Housing	SERVICE ADVISOR
18	57M7469	1	Electrical Connector Assy	-
19	57M8022	1	Elec.Connect Locking Device	-
19	57M8015	1	Electrical Connector Assy	IMPLEMENT CAN CAB CONNECTOR
20	57M8017	1	Elec. Connector Housing	IMPLEMENT CAN CAB CONNECTOR
20	57M7619	1	Elec.Connect Locking Device	-
21	57M8021	1	Electrical Connector Assy	IMPLEMENT CAN POWER CONNECTOR
21	57M8022	1	Elec.Connect Locking Device	-
22	57M8023	1	Elec. Connector Housing	IMPLEMENT CAN POWER CONNECTOR
22	57M7621	1	Elec.Connect Locking Device	-
23	57M7254	1	Elec. Connector Housing	DOME LAMP
23	57M7289	1	Elec.Connect Locking Device	-
24	57M8033	1	Elec. Connector Housing	DOME LAMP SWITCH
25	-	1	Part 38	RHC ROOF LAMP
26	57M8843	1	Elec. Connector Housing	BUSINESS BANDRADIO PREWIRE
26	57M7725	1	Electrical Connector Assy	-
27	57M8944	1	Elec. Connector Housing	OUTER ROOF CONNECTOR
27	57M8943	1	Elec.Connect Locking Device	-
28	57M7261	1	Elec. Connector Housing	OUTER ROOF CAN CONNECTOR
28	57M7296	1	Elec. Connector Accessory	-
29	57M7256	1	Elec. Connector Housing	BEACON LIGHT
29	57M7289	1	Elec.Connect Locking Device	-
30	57M7714	1	Electrical Connector Assy	CORNER POST TACH
30	57M7719	1	Electrical Connector Assy	-
31	57M7713	1	Electrical Connector Assy	ISO 11786 CONNECTOR
31	57M7718	1	Electrical Connector Assy	-
32	57M9231	1	Elec. Connector Housing	RECONFIGURABLE DISPLAY; (USE WITH (7) 57M9388_Pins, (7) Z56915_Seals)
32	57M9232	1	Elec. Connector Seal	-
33	57M9127	1	Elec. Connector Terminal	RADIO CONNECTOR
34	-	1	Part 54	MST RHC ROOF LAMP

Cab Wiring Harness Connectors (2/2) (MST)

Нет текстового описания
