Load Center Wiring Harness, W/ Backup Pump, 13.5 L, FT4 Engine (5/5)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE554428	1	Cover	-
2	57M13137	1	Elec. Connector Housing	Y5019, DEF Tank Heater Coolant Control Valve
2	RWA11105	1	Repair Wire Assembly	Cavity 1, 4
3	57M10530	1	Elec. Connector Housing	B5506, DEF Tank Header Assembly Connector (CAN Based)
3	RWA11116	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
3	57M8016	1	Elec.Connect Locking Device	-
3	57M12049	1	Elec. Connector Accessory	-
4	57M10958	1	Elec. Connector Housing	B5501, SCR Supply Module
4	RWA10718	1	Repair Wire Assembly	Cavity 2, 3, 4, 5, 6, 8, 9, 10, 11, 12
5	57M11439	1	Elec. Connector Accessory	-
6	57M9514	1	Elec. Connector Housing	X340B, Chassis Interconnect
6	RWA11058	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31
7	57M9383	1	Elec. Connector Accessory	-
8	57M9784	1	Elec. Connector Housing	X339B, Chassis to Left Steps Harness Interconnect 1
8	RWA11022	1	Repair Wire Assembly	Cavity 1
9	57M9838	1	Elec. Connector Accessory	-
10	57M9940	4	Elec. Connector Accessory	-
11	57M9777	1	Elec. Connector Housing	E5601, DEF Fluid Line Heater Pressure Line
11	RWA11023	1	Repair Wire Assembly	Cavity 1, 2
12	57M9837	3	Elec. Connector Accessory	-
13	57M9778	1	Elec. Connector Housing	E5603, DEF Heater Return Line
13	RWA11023	1	Repair Wire Assembly	Cavity 1, 2
14	57M9776	1	Elec. Connector Housing	E5602, DEF Heater Suction Line
14	RWA11023	1	Repair Wire Assembly	Cavity 1, 2
15	57M7690	1	Fuse	15 A, F8, Steering Controller
16	57M7689	1	Fuse	10 A, F7, Key Switch
17	R77476	1	Electrical Connector Assy	M03, Right Washer Pump
17	RWA11076	1	Repair Wire Assembly	Cavity A, B
18	R77476	1	Electrical Connector Assy	M02, Rear Washer Pump
18	RWA11076	1	Repair Wire Assembly	Cavity A, B
19	R77476	1	Electrical Connector Assy	M01, Front Washer Pump
19	RWA11076	1	Repair Wire Assembly	Cavity A, B
20	57M12139	1	Clamp	-
21	57M10837	2	Clamp	-
22	AH225363	1	Clip	-
23	57M8866	1	Elec. Connector Terminal	KSW2, Alternator/Battery Relay
24	57M11530	1	Elec. Connector Terminal	FEXX-L1, Load Center Power
25	RE575979	1	Wiring Harness	-
26	57M10421	1	Elec. Connector Accessory	-
27	RE580191	1	Chassis Wiring Harness	-
28	RE554429	1	Fuse Holder	FEXX, Front Load Center Panel Fuses
28	RWA11045	1	Repair Wire Assembly	Cavity B10, B3, B4, B5, B6, B7, B9
29	R543092	1	Label	External Load Center
30	57M7691	1	Fuse	20 A, F1, ECU
31	57M7691	1	Fuse	20 A, F2, ECU
32	57M7691	1	Fuse	20 A, F3, ECU
33	57M7690	1	Fuse	15 A, F4, Dosing Pump
34	57M7690	1	Fuse	15 A, F5, Fuel Transfer Pump
35	57M10711	1	Elec. Connector Accessory	-

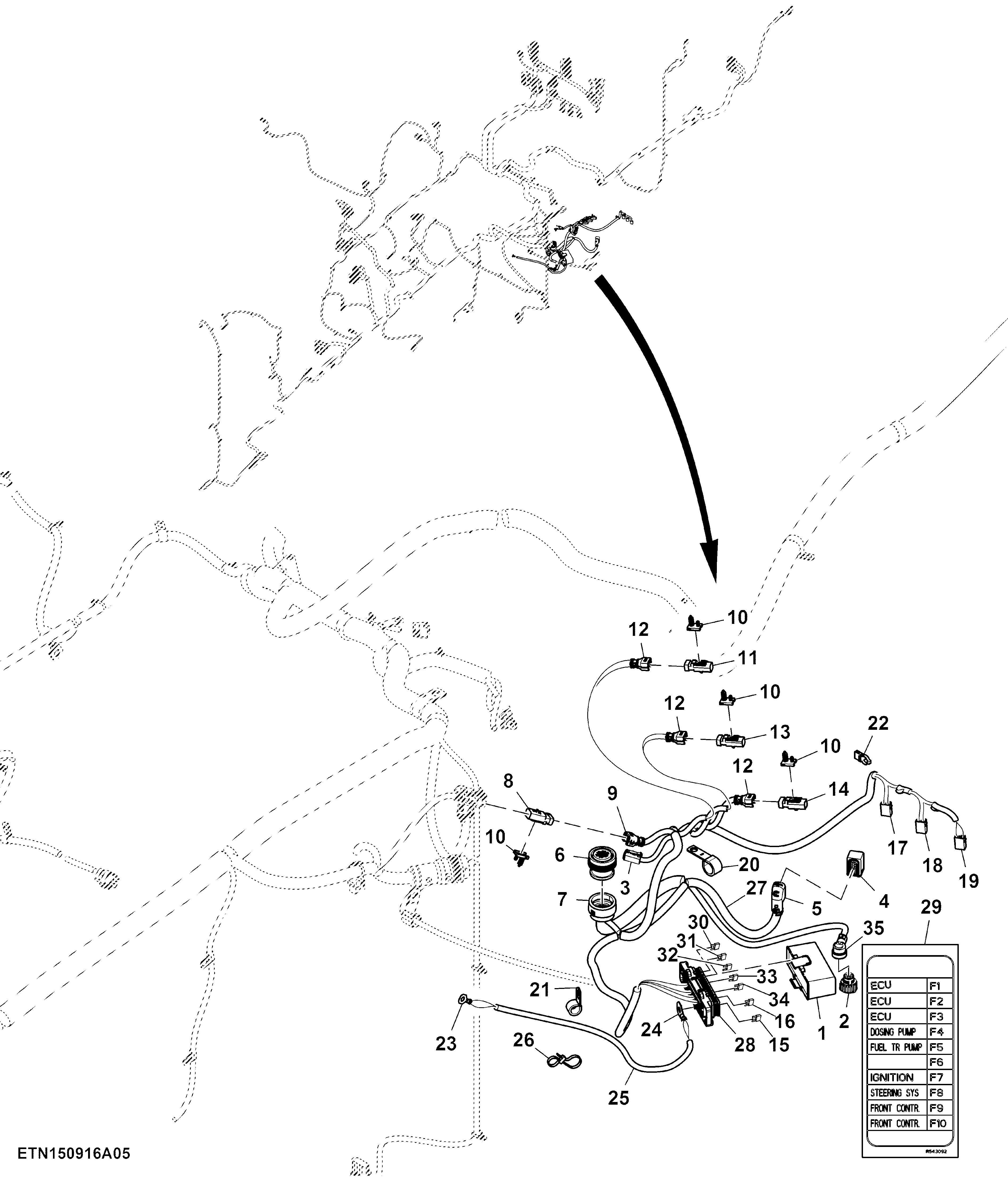

Load Center Wiring Harness, W/ Backup Pump, 13.5 L, FT4 Engine (5/5)
