Hydraulic Trailer Brake Lines

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H5092	1	Nut	13/16"
2	H112567	1	Plate	-
3	19M7865	2	Screw	M8 X 16
4	RE581543	2	Pressure Sensor	SUB FOR RE567839
5	RE190805	1	Diagnostic Coupling	-
6	51M7041	3	O-Ring	11.300 X 2.200 mm, USE WITH RE190805, 38H5016 AND 38H5009
6	51M7041	2	O-Ring	11.300 X 2.200 mm, USE WITH RE272647 AND RE581544
7	RE581544	2	Pressure Sensor	SUB FOR RE272647
8	19M7868	2	Screw	M8 X 30
9	38H5016	1	Elbow Fitting	-
10	R77175	2	Cover	-
11	RE585466	1	Fitting	-
12	19M7801	1	Screw	M8 X 60
13	14M7573	1	Flange Nut	M8
14	H121168	2	Plate	-
15	38H5091	1	Nut	11/16"
16	RE582494	1	Chassis Wiring Harness	-
17	RE587106	1	Bracket	-
18	19M7786	3	Screw	M10 X 30
19	51M7047	1	O-Ring	23.600 X 2.900 mm
20	19M7803	1	Screw	M8 X 70
21	RE588871	1	Hydraulic Hose	Trailer Brake Signal
22	RE580317	1	Hyd. Quick-Connect Coupler	-
23	RE587099	1	Oil Line	-
24	RE587608	1	Bracket	-
25	RE587606	1	Oil Line	-
26	19M8319	3	Screw	M8 X 50
27	T27550	1	Clip	-
28	RE587956	1	Line	-
29	19M7866	1	Screw	M8 X 20
30	RE46685	1	Fitting Plug	-
31	51M7043	5	O-Ring	15.300 X 2.200 mm
32	RE588234	1	Oil Line	-
33	T77858	3	O-Ring	-
34	T269640	3	Clamp	-
35	RE588464	1	Line	-
36	RE588467	1	Oil Line	-
37	38H5009	1	Adapter Fitting	-
38	SU28764	4	Block Clamp	-
39	RE588625	1	Line	-
40	RE588702	1	Hydraulic Hose	Attenuator Hose
41	R35794	3	Clamp	-
42	24M7299	3	Washer	10.500 X 30 X 2.500 mm
43	19M7798	3	Screw	M8 X 40
44	RE60701	1	Diagnostic Coupling	-
45	AR75693	1	Attenuator	-
46	R564374	1	Bracket	-
47	RE592586	1	Valve	SUB FOR RE588703
48	RE589534	1	Line	-
49	RE336597	1	Check Valve	-
50	28H3389	1	Spacer	0.423" X 0.675" X 1"
51	19M7804	1	Screw	M10 X 40
52	T72393	1	Clamp	-
53	RE588899	1	Hydraulic Hose	Breather
54	38H5003	1	Adapter Fitting	-
55	T77857	9	O-Ring	-
56	38H5024	1	Elbow Fitting	-
57	T77932	5	O-Ring	-
58	T77613	5	O-Ring	-
59	38H5017	1	Elbow Fitting	-
60	38H5098	1	Elbow Fitting	-
61	38H5027	1	Elbow Fitting	-
62	51M7045	1	O-Ring	19.300 X 2.200 mm
63	38H1314	1	Elbow Fitting	-
64	R26448	2	O-Ring	-
65	38H5216	1	Tee Fitting	-
66	38H1160	1	Adapter Fitting	-
67	57M8924	1	Elec. Connector Housing	Y722, Hydraulic Trailer Brake Leak Detection
67	57M8633	1	Elec. Connector Accessory	-
68	57M8625	1	Elec. Connector Housing	B258, Hydraulic Trailer Supplementary Pressure
68	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
68	57M8624	1	Elec.Connect Locking Device	-
69	57M10298	1	Elec. Connector Housing	X790-2
69	RWA11136	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
70	57M10523	1	Elec. Connector Housing	Y707, Trailer Pre-Brake Solenoid
70	57M7620	1	Electrical Connector Assy	-
70	RWA11058	1	Repair Wire Assembly	Cavity 1, 2, 3
71	57M8924	1	Elec. Connector Housing	Y708, Trailer Pre-Brake Off Solenoid
71	57M8633	1	Elec. Connector Accessory	-
72	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
72	57M8624	1	Elec.Connect Locking Device	-
72	57M8625	1	Elec. Connector Housing	B265, Trailer Pre-Brake Pressure
73	57M8625	1	Elec. Connector Housing	B255, Rear Brake Pressure
73	57M8624	1	Elec.Connect Locking Device	-
73	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
74	57M8625	1	Elec. Connector Housing	B257, Hydraulic Trailer Control Pressure
74	57M8624	1	Elec.Connect Locking Device	-
74	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
75	19M8318	1	Screw	M8 X 45
76	38H5186	1	Tee Fitting	-
77	R563896	1	Adapter Fitting	-
78	H150983	2	Clamp	-

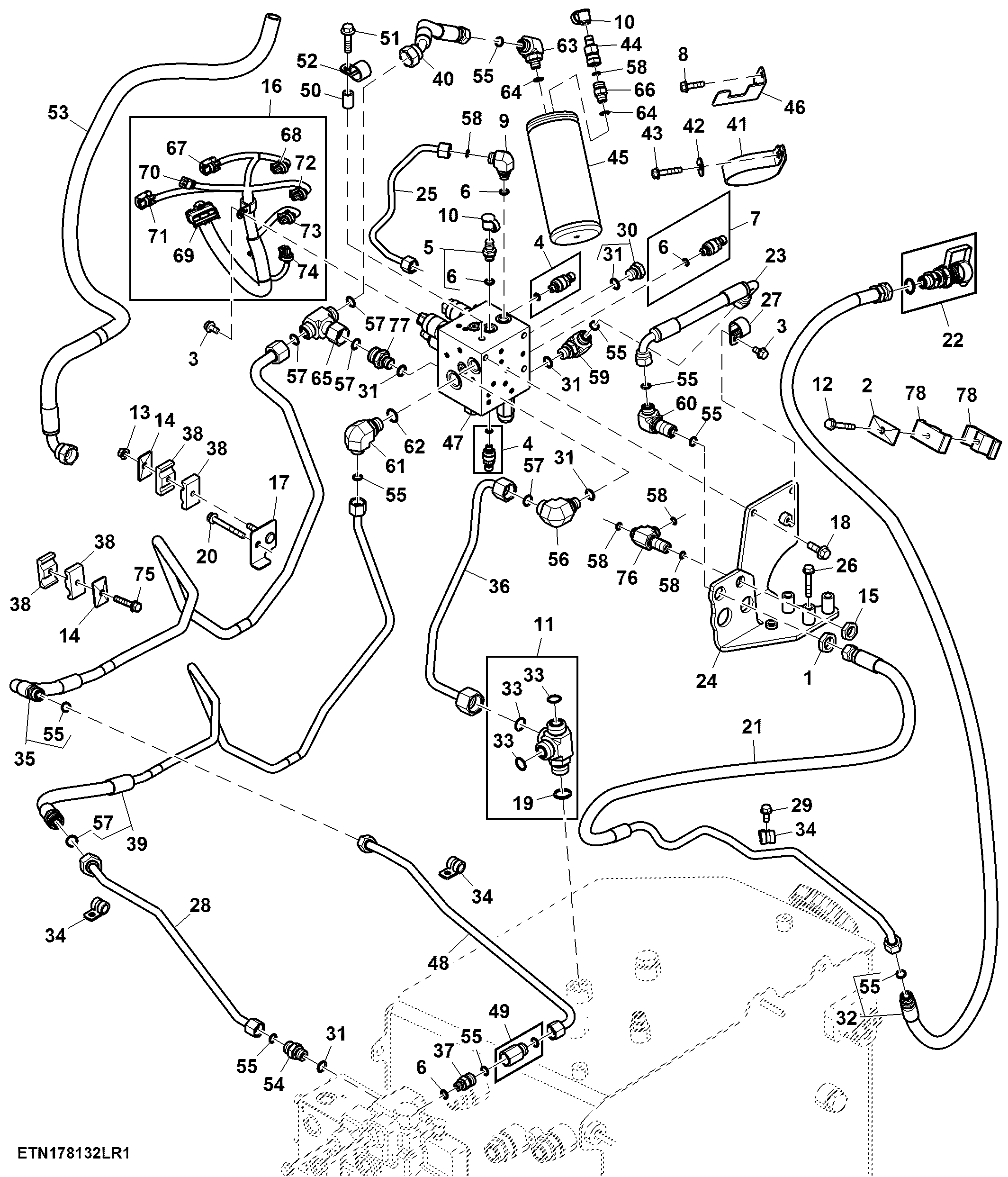

Hydraulic Trailer Brake Lines
