Hydraulic Lines, Standard Flow, W/ PTO, Double Reduction Axle (3/3)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE568218	1	Line	Lube Pump Inlet INCLUDES 51M7065
2	51M7065	4	O-Ring	47.219 X 3.531 mm
3	RE567116	1	Oil Line	Hydraulic Charge Pump Inlet INCLUDES 51M7065
4	X51H-24	12	Flange Fitting	-
5	24M7047	24	Washer	13 X 24 X 2.500 mm
6	19M8011	8	Cap Screw	M12 X 30
7	RE342016	1	Line	Charge Pump Supply INCLUDES T78313
8	T78313	1	O-Ring	-
9	H61354	2	Flange Fitting	-
10	24M7106	4	Washer	10 X 18 X 2.500 mm
11	19M7662	4	Cap Screw	M10 X 30
12	CB11489177	2	Clamp	-
13	H150222	2	Hose Clamp	-
14	H114901	1	Plate	-
15	19M8039	1	Screw	M8 X 80
16	RE571593	1	Oil Line	Transmission Scavenge Pump Inlet INCLUDES (2) 51M7065
16	RE591697	1	Oil Line	Transmission Scavenge Pump Inlet INCLUDES (2) 51M7065
17	19M7403	16	Cap Screw	M12 X 35
18	19M7867	2	Screw	M8 X 25
19	RE587408	1	Oil Line	Return Manifold to Filter INCLUDES T34248, T78784 and T77932
20	T34248	2	O-Ring	-
21	T78784	1	O-Ring	-
22	T77932	1	O-Ring	-
23	RE581160	1	Oil Line	Return Manifold to Filter INCLUDES T34248

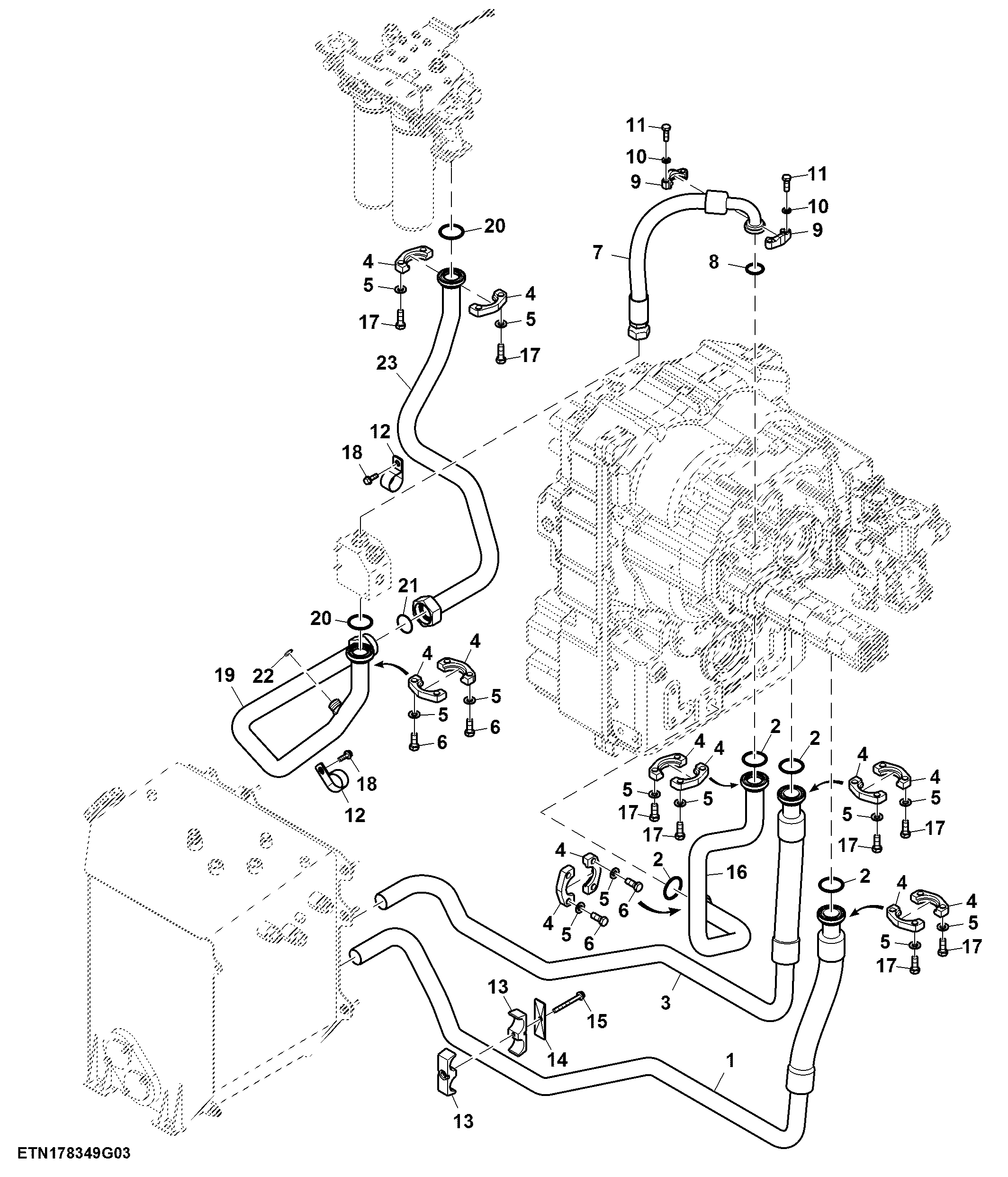

Hydraulic Lines, Standard Flow, W/ PTO, Double Reduction Axle (3/3)
