Hydraulic Lines, Standard Flow, W/ PTO, Double Reduction Axle (2/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE567487	1	Hydraulic Hose	Rear Axle Lube Supply INCLUDES T77858
2	T77858	1	O-Ring	-
3	R109479	1	Clamp	-
4	RE567155	1	Oil Line	Axle Lube Valve Return
5	R125346	6	Clamp	-
6	R125347	6	Plate	-
7	T24959	1	Clamp	-
8	19M7866	1	Screw	M8 X 20
9	T195864	2	Flange Fitting	-
10	24M7047	4	Washer	13 X 24 X 2.500 mm
11	R29867	4	Flange Fitting	-
12	24M7106	8	Washer	10 X 18 X 2.500 mm
13	19M7662	4	Cap Screw	M10 X 30
14	R72659	1	Clamp	-
15	RE567471	1	Hydraulic Hose	Pump Drain
16	RE567175	1	Hydraulic Hose	Pump Load Sense
17	38H5020	1	Elbow Fitting	-
18	51M7048	1	O-Ring	29.600 X 2.900 mm
19	T76938	1	O-Ring	-
20	19M7803	3	Screw	M8 X 70
21	RE264764	1	Check Valve	-
22	T77814	2	O-Ring	-
23	38H5011	1	Adapter Fitting	-
24	51M7041	1	O-Ring	11.300 X 2.200 mm
25	RE580926	1	Oil Line	Filter Return to Pump INCLUDES U12331 and U46457
26	U12331	1	O-Ring	-
27	U46457	1	O-Ring	-
28	38H5004	1	Adapter Fitting	-
29	T77932	2	O-Ring	-
30	51M7045	1	O-Ring	19.300 X 2.200 mm
31	RE567154	1	Line	Rear Axle Lube
31	RE590437	1	Line	Rear Axle Lube
32	R37023	2	Flange Fitting	-
33	19M7403	4	Cap Screw	M12 X 35
34	RE571685	1	Oil Line	Front Axle Lube Supply
35	38H5022	1	Elbow Fitting	-
36	51M7040	1	O-Ring	9.300 X 2.200 mm
37	T77613	1	O-Ring	-
38	14M7298	1	Flange Nut	M8
39	19M8061	4	Cap Screw	M12 X 140
40	38H5152	1	Adapter Fitting	-
41	51M7047	1	O-Ring	23.600 X 2.900 mm
42	R552894	1	Manifold	-
43	19M7811	4	Screw	M10 X 90
44	T78393	3	O-Ring	-
45	RE574890	1	Hydraulic Hose	Pump to Cooler Bypass INCLUDES (2) T78393
46	19M7868	1	Screw	M8 X 30
47	RE576757	1	Oil Line	Transmission Cooler to Cooler Bypass
48	RE580724	1	Support	-
49	R530587	1	Hose Clamp	-
50	19M7867	1	Screw	M8 X 25
51	19M7804	1	Screw	M10 X 40
52	24M7240	4	Washer	13 X 25 X 3 mm
53	19M7550	4	Cap Screw	M10 X 35

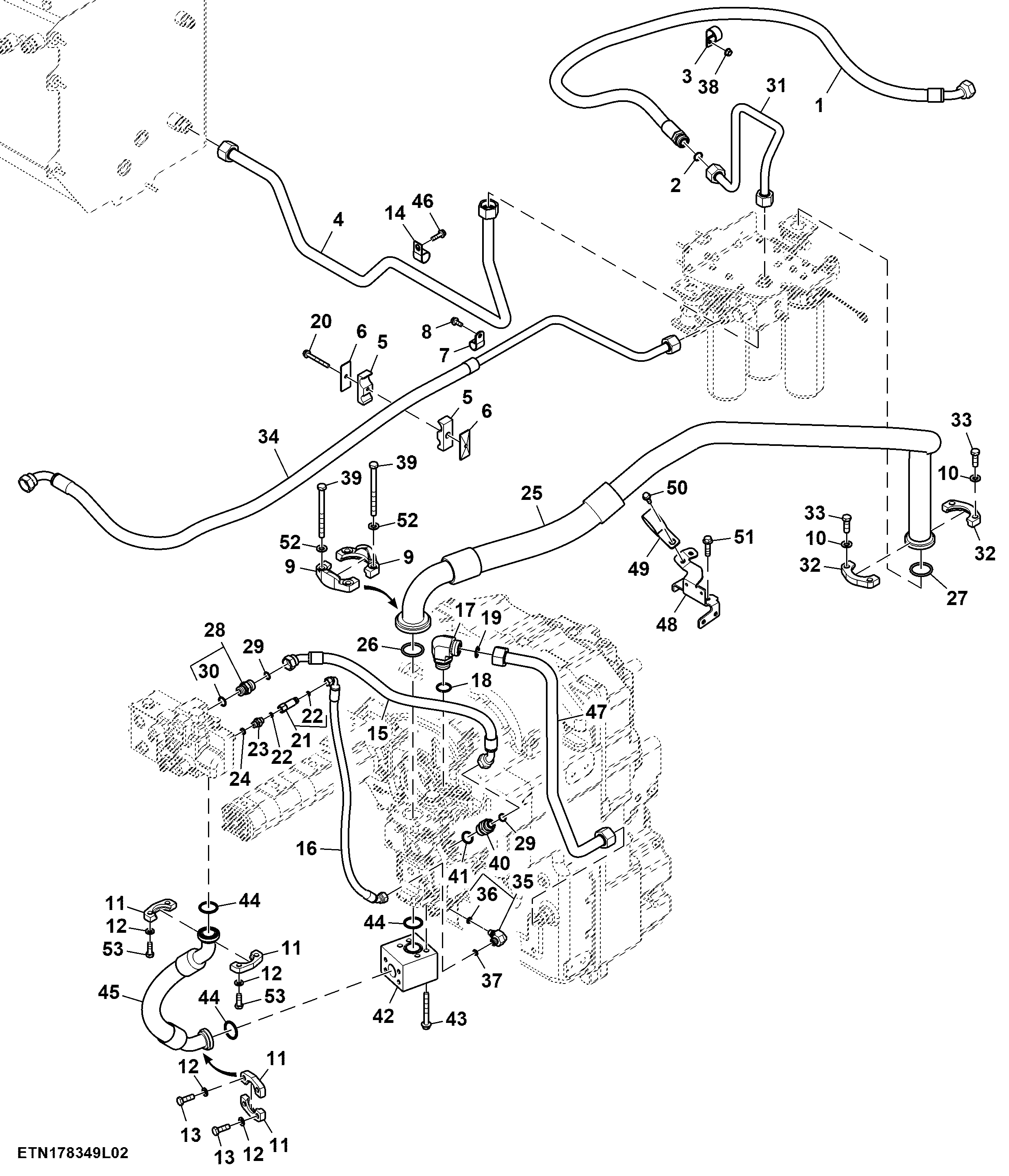

Hydraulic Lines, Standard Flow, W/ PTO, Double Reduction Axle (2/3)
