Chassis Wiring Harness, W/ ACS™ and Backup Pump, 13.5 L, FT4 Engine (3/5)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE587336	1	Chassis Wiring Harness	-
1	RE580671	1	Chassis Wiring Harness	-
1	RE595027	1	Chassis Wiring Harness	-
2	57M8924	1	Elec. Connector Housing	Y683_13-5L, Front Differential Lock Solenoid
2	RWA11097	1	Repair Wire Assembly	Cavity A, B
3	57M11380	2	Elec. Connector Accessory	-
4	57M9784	1	Elec. Connector Housing	X123, 4 Track Tension Right Hand Side
4	57M9939	1	Elec. Connector Accessory	-
4	57M9838	1	Elec. Connector Accessory	-
4	RWA11025	1	Repair Wire Assembly	Cavity 1, 2
5	57M8924	1	Elec. Connector Housing	Y750, Steer Enable Solenoid 1 (ACS™)
5	57M8633	1	Elec. Connector Accessory	-
5	RWA11097	1	Repair Wire Assembly	Cavity A, B
6	57M9210	1	Elec. Connector Housing	Y751, Steer Left Solenoid 1 (ACS™)
6	57M8633	1	Elec. Connector Accessory	-
6	RWA11097	1	Repair Wire Assembly	Cavity A, B
7	RWA11097	1	Repair Wire Assembly	Cavity A, B
7	57M8633	1	Elec. Connector Accessory	-
7	57M9210	1	Elec. Connector Housing	Y752, Steer Right Solenoid 1 (ACS™)
8	57M8924	1	Elec. Connector Housing	Y753, Steer Enable Solenoid 2 (ACS™)
8	57M8633	1	Elec. Connector Accessory	-
8	RWA11097	1	Repair Wire Assembly	Cavity A, B
9	57M9210	1	Elec. Connector Housing	Y754, Steer Left Solenoid 2 (ACS™)
9	57M8633	1	Elec. Connector Accessory	-
9	RWA11097	1	Repair Wire Assembly	Cavity A, B
10	57M9210	1	Elec. Connector Housing	Y755, Steer Right Solenoid 2 (ACS™)
10	57M8633	1	Elec. Connector Accessory	-
10	RWA11097	1	Repair Wire Assembly	Cavity A, B
11	57M9780	1	Elec. Connector Housing	B760, Spool Position 1 Left
11	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3
12	57M9780	1	Elec. Connector Housing	B761, Spool Position1 Right
12	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3
13	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3
13	57M9780	1	Elec. Connector Housing	B762, Spool Position 2 Left
14	57M9780	1	Elec. Connector Housing	B763, Spool Position 2 Right
14	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3
15	57M8924	1	Elec. Connector Housing	B694, Hydraulic Oil Temperature Sensor
15	57M8633	1	Elec. Connector Accessory	-
15	RWA11097	1	Repair Wire Assembly	Cavity A, B
16	57M9776	1	Elec. Connector Housing	X133A, Right Extremity Light
16	RWA11025	1	Repair Wire Assembly	Cavity 1, 2
17	57M10747	2	Elec. Connector Accessory	USE WITH RE595027
18	57M9789	1	Elec. Connector Housing	X563A, Rear PTO Extension
18	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6
19	57M11265	1	Elec. Connector Accessory	-
20	57M9786	1	Elec. Connector Housing	X563AA, Rear PTO Extension
21	57M9940	2	Elec. Connector Accessory	-
22	RWA11083	1	Repair Wire Assembly	Cavity A, B, C, D, E, F, G, H, J, K
22	57M7262	1	Elec. Connector Housing	X116A, Hitch Following
22	57M7281	1	Elec.Connect Locking Device	-
23	57M7265	1	Elec. Connector Housing	X116AA, Hitch Following
23	57M7281	1	Elec.Connect Locking Device	-
24	57M9555	1	Clip	-
25	57M9800	1	Elec. Connector Housing	X330A, Transmission Interconnect
25	57M12116	1	Elec. Connector Accessory	-
25	RWA11029	1	Repair Wire Assembly	Cavity 1, 3, 4, 6, 7, 8, 9, 10, 12
26	57M10614	1	Elec. Connector Housing	A570-J1, Vehicle Control Unit J1
26	RWA11032	1	Repair Wire Assembly	Cavity L1, L2, L3, L4, M1, M2, M3, M4
26	RWA11030	1	Repair Wire Assembly	Cavity A1, A3, A4, B1, B2, B3, B4, C1, D1, E1, E4, F1, F4, G1, G2, H1, H2, J1, J3, K1, K2
27	57M10613	3	Elec. Connector Housing	-
28	57M10367	1	Elec. Connector Housing	A570-J2, Vehicle Control Unit 2
28	RWA11032	1	Repair Wire Assembly	Cavity 6, 18, 29, 41, 42, 53
28	RWA11030	1	Repair Wire Assembly	Cavity 7, 9, 11, 12, 13, 14, 20, 21, 22, 23, 24, 25, 26, 34, 35, 37, 38, 39, 40, 45, 51
28	RWA11034	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5
29	57M10401	1	Elec. Connector Accessory	-
30	RWA11029	1	Repair Wire Assembly	Cavity 3, 6, 7, 8, 10, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26
30	57M11524	1	Elec. Connector Housing	X500, Cab Connection 2
30	RWA11118	1	Repair Wire Assembly	Cavity 1, 2, 27, 28
31	57M11523	1	Elec. Connector Housing	X501, Cab Connection
31	RWA11029	1	Repair Wire Assembly	Cavity 3, 4, 5, 6, 7, 8, 9, 10, 11, 13, 15, 16, 19, 20, 23, 24, 26
31	RWA11118	1	Repair Wire Assembly	Cavity 1, 27, 28
31	RWA10612	1	Repair Wire Assembly	Cavity 25
32	57M11528	2	Elec. Connector Accessory	-
33	57M10605	1	Elec. Connector Housing	A985-J1, ActiveCommand Steering Unit J1
33	RWA11030	1	Repair Wire Assembly	Cavity A2, A4, B2, B4, C2, C4, E2, F2, F3
33	RWA11032	1	Repair Wire Assembly	Cavity G1, G4, H3, H4
34	57M10604	4	Elec. Connector Housing	-
35	57M10614	1	Elec. Connector Housing	A985-J2, ActiveCommand Steering Unit J2
35	RWA11030	1	Repair Wire Assembly	Cavity A1, A2, A4, B1, C2, C3, C4, E1, E2, F1, F4, G1, G3, H1, H3, H4, J1, J2, J3, K1, K2, K4
35	RWA11032	1	Repair Wire Assembly	Cavity L1, L2, L3, L4, M1, M2, M3, M4
36	RWA11030	1	Repair Wire Assembly	Cavity A1, A4, B1, B4, C1, C3, C4, D1, D2, D3, E3, F1, F3, F4
36	RWA11032	1	Repair Wire Assembly	Cavity G1, G2, G4, H1, H2
36	57M10611	1	Elec. Connector Housing	A985-J3, ActiveCommand Steering Unit J3
37	57M7261	1	Elec. Connector Housing	X505A, Chassis / Cab
37	57M7296	1	Elec. Connector Accessory	-
37	RWA11083	1	Repair Wire Assembly	Cavity A, B, C, D, E
38	57M9800	1	Elec. Connector Housing	X506A, Cab Conn 6
38	RWA11029	1	Repair Wire Assembly	Cavity 2, 3
39	57M10605	1	Elec. Connector Housing	A986-J1, ActiveCommand Steering Unit J1
39	RWA11030	1	Repair Wire Assembly	Cavity A1, A2, B1, B2, C4, D2, D4, E1, E4, F1, F3, F4
39	RWA11032	1	Repair Wire Assembly	Cavity G1, G4, H3, H4
40	57M10614	1	Elec. Connector Housing	A986-J2, ActiveCommand Steering Unit J2
40	RWA11030	1	Repair Wire Assembly	Cavity A1, A2, A3, A4, B1, B4, C2, C3, D3, D4, E1, E2, F1, F2, F4, G1, G2, G3, G4, H1, H3, J1, J2, J3, J4, K1, K2, K3, K4
40	RWA11032	1	Repair Wire Assembly	Cavity L1, L2, L3, L4, M1, M2, M3, M4
41	RWA11032	1	Repair Wire Assembly	Cavity G2, G3, H1, H2
41	57M10611	1	Elec. Connector Housing	A986-J3, ActiveCommand Steering Unit J3
41	RWA11030	1	Repair Wire Assembly	Cavity A1, A4, B1, B4, C1, C3, C4, D2, D3, D4, E2, E3, E4, F1, F3, F4
42	57M7261	1	Elec. Connector Housing	X504A, Chassis / Cab
42	57M7296	1	Elec. Connector Accessory	-
42	RWA11083	1	Repair Wire Assembly	Cavity A, B, C, D, E
43	57M9800	1	Elec. Connector Housing	X503A, Cab 7 Interconnect
43	RWA11029	1	Repair Wire Assembly	Cavity 1, 4
43	57M12116	1	Elec. Connector Accessory	-
44	57M9792	1	Elec. Connector Housing	X780, GYRO
44	57M9842	1	Elec. Connector Accessory	-
44	RWA11029	1	Repair Wire Assembly	Cavity 4, 6
45	57M9772	1	Elec. Connector Housing	A100-X4, Power Relay Module
45	RWA11029	1	Repair Wire Assembly	Cavity 1, 2
46	RE336303	1	Relay Module	Implement Power Relay INCLUDES 57M10797 AND 57M12929
47	RE574020	1	Wiring Harness	-
48	57M8866	1	Elec. Connector Terminal	A100-X1, Implement Power Relay Module Top Left Terminal
49	57M8865	1	Elec. Connector Terminal	X008A, VC Ring M10 Power Stud
50	57M12128	1	Clamp	-
51	57M12123	2	Clamp	-
52	57M10233	7	Tie Band	-
53	57M8903	2	Clip	-
54	57M8872	1	Elec. Connector Terminal	A100-X3, Power Relay Module Unswitched Power Output
55	57M11530	1	Elec. Connector Terminal	A100-X2, Power Mod Switch Power Output
56	57M10297	1	Elec. Connector Housing	X790-1, Brake Manifold
56	RWA11137	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
57	57M11374	1	Elec. Connector Accessory	-
58	57M10298	1	Elec. Connector Housing	X790-1A, Cap
59	RE258807	4	Tie Band	-
60	57M9804	1	Elec. Connector Housing	X342A, ATD Interconnect
60	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 10, 11, 12
61	57M10797	1	Fuse	60A
62	57M12929	1	Fuse	30A
63	57M14930	1	Elec. Connector Housing	E129, Rh Side Marker USE WITH RE595027

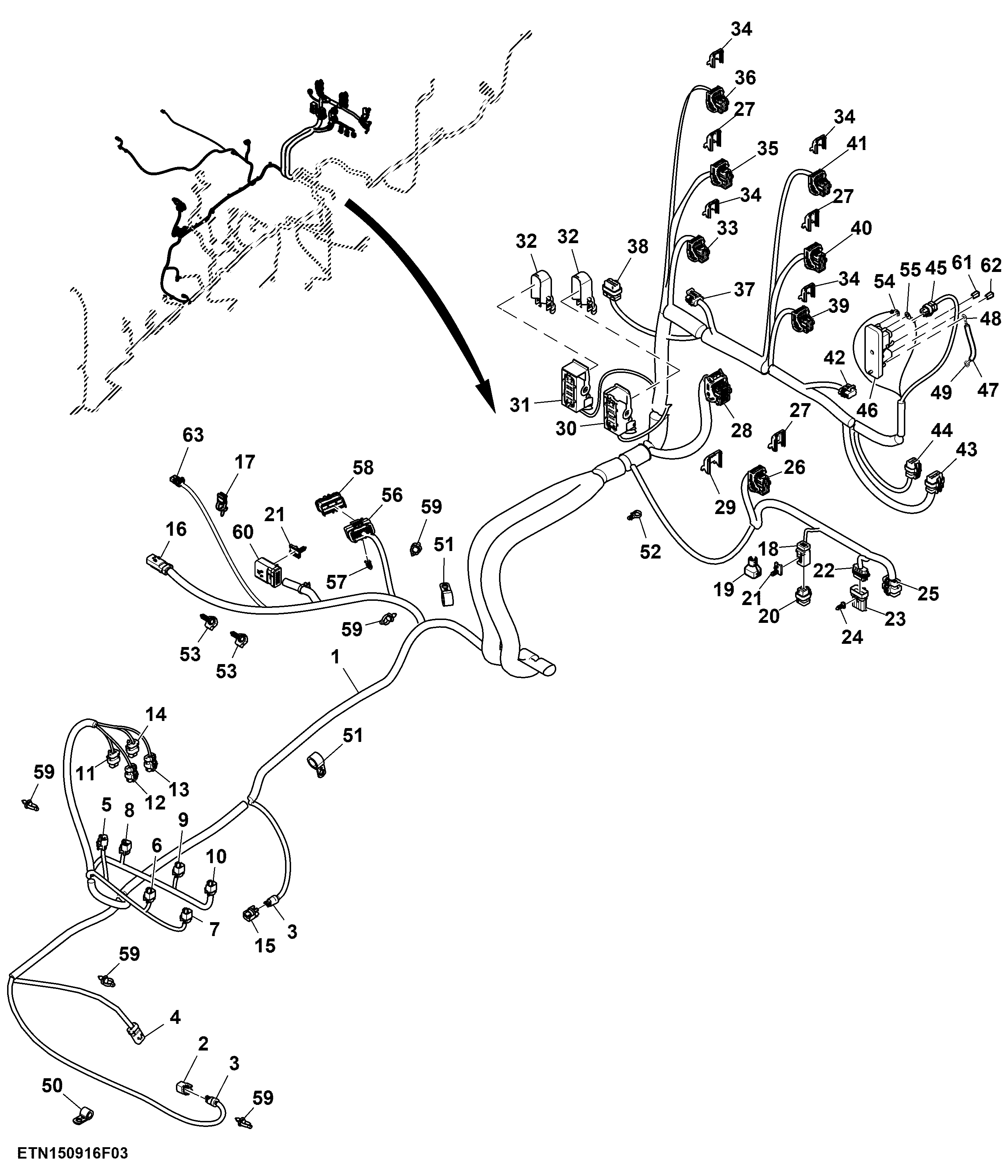

Chassis Wiring Harness, W/ ACS™ and Backup Pump, 13.5 L, FT4 Engine (3/5)
