Case, Front Differential, Double Reduction Axle

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE190805	1	Diagnostic Coupling	-
2	51M7041	6	O-Ring	11.300 X 2.200 mm
3	R77175	5	Cover	-
4	R331227	1	Gasket	-
5	AH229778	1	Drain Plug	-
6	R26375	1	O-Ring	-
7	19M8319	4	Screw	M8 X 50
8	51M7040	4	O-Ring	9.300 X 2.200 mm
9	51M7096	1	O-Ring	13.300 X 2.200 mm
10	19M7897	6	Screw	M8 X 35
11	64M1022	1	Drain Plug	-
12	51M7047	3	O-Ring	23.600 X 2.900 mm
13	44M7129	8	Dowel Pin	-
14	H142721	2	Clamp	-
15	R105416	1	O-Ring	-
16	RE60701	4	Diagnostic Coupling	-
17	38H5016	4	Elbow Fitting	-
18	T77613	6	O-Ring	-
19	RE581007	1	Oil Line	-
20	T76938	1	O-Ring	-
21	RE583543	1	Case	INCLUDES (4) 44M7129
22	RE211157	1	Solenoid Valve	Y666, Rear Differential Lock Solenoid INCLUDES R104554, R104555 AND R104556
23	RE47392	1	O-Ring Kit	-
24	R104554	1	Ring	ORDER RE47392
25	R104555	1	Ring	ORDER RE47392
26	R104556	1	Ring	ORDER RE47392
27	R211082	1	Clamp	-
28	RE162743	3	Fitting Plug	-
29	R539154	1	Sealing Washer	-
30	R539147	1	Spool Valve	-
31	R539146	1	Spool Valve	-
32	R346607	1	Spring	-
33	R273398	1	Compression Spring	-
34	R218648	1	Spool Valve	-
35	R212714	1	Pin	-
36	R30903	1	O-Ring	6.071 X 1.626 mm (0.239" X 0.064")
37	34M7190	2	Spring Pin	14 X 14 mm
38	19M9478	2	Screw	M5 X 16
39	RE580920	2	Screw	-
40	T162005	1	Strap	-
41	19M7163	2	Cap Screw	M8 X 25
42	R550444	1	Housing	-
43	19M8131	8	Screw	M10 X 70
44	38H5012	1	Adapter Fitting	-
45	51M7045	3	O-Ring	19.300 X 2.200 mm
46	R552391	4	O-Ring	-
47	38H5005	2	Adapter Fitting	-
48	T77858	2	O-Ring	-
49	38H5002	1	Adapter Fitting	-
50	64M1019	2	Drain Plug	-
51	51M7043	3	O-Ring	15.300 X 2.200 mm

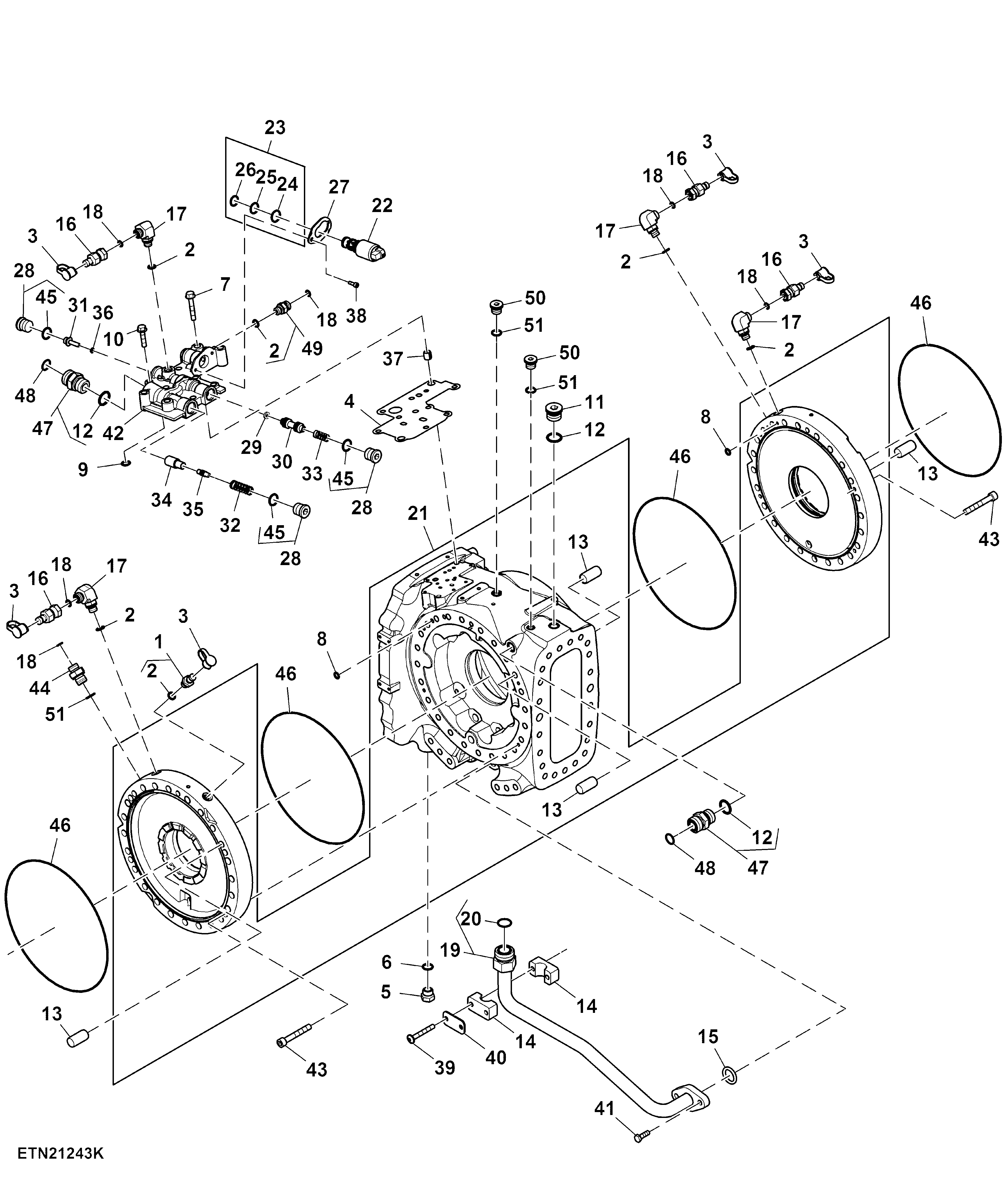

Case, Front Differential, Double Reduction Axle

Нет текстового описания
