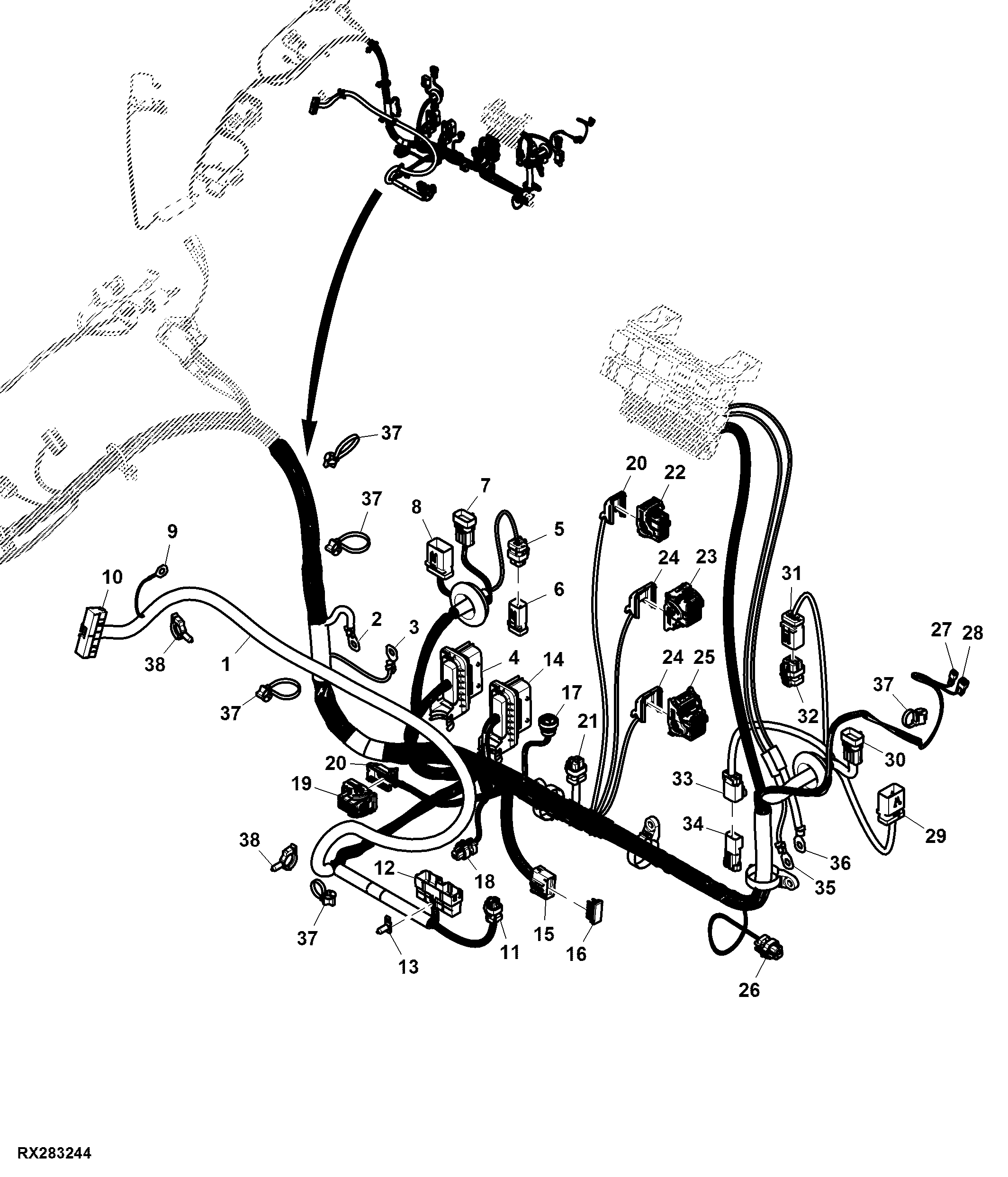

Cab Wiring Harness, Generation 4 CommandCenter™ 4100 Processor (2/3) (804101 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE580587	1	Cab Wiring Harness	-
2	57M9536	1	Elec. Connector Terminal	Ground
3	57M8865	1	Elec. Connector Terminal	Ground
4	57M11526	1	Elec. Connector Housing	Chassis Harness Connector 1
4	57M11527	1	Elec. Connector Accessory	-
5	57M9817	1	Elec. Connector Housing	Camera 1
6	57M9821	1	Elec. Connector Housing	Dust Cap
7	57M7264	1	Elec. Connector Housing	Right Fender Harness Connector
7	57M7283	1	Elec.Connect Locking Device	-
8	57M9804	1	Elec. Connector Housing	Right Exteral Switchs
9	57M9536	1	Elec. Connector Terminal	Ground
10	57M8860	1	Elec.Connect Locking Device	-
10	57M8859	2	Elec.Connect Locking Device	-
10	57M8858	1	Elec. Connector Housing	Armrest Harness Connector
11	57M9772	1	Elec. Connector Housing	Refrigerator
12	57M8857	1	Elec. Connector Housing	Seat Harness Connector
12	57M8859	2	Elec.Connect Locking Device	-
12	57M8860	1	Elec.Connect Locking Device	-
13	57M8910	1	Clip	-
14	57M11525	1	Elec. Connector Housing	Chassis Harness Connector 2
14	57M11527	1	Elec. Connector Accessory	-
15	57M11347	1	Elec. Connector Housing	Splice Pack 1
16	-	1	Part 23	-
17	AZ34598	1	Elec. Connector Terminal	Sub-Woofer Connector
18	57M9772	1	Elec. Connector Housing	MCR
19	57M10614	1	Elec. Connector Housing	MWG Connector J2
20	57M10613	2	Elec. Connector Housing	-
21	57M9817	1	Elec. Connector Housing	Satellite Option
22	57M10615	1	Elec. Connector Housing	MECA Cab Controller J1
23	57M10214	1	Elec. Connector Housing	MECA Cab Controller J2
24	57M10401	2	Elec. Connector Accessory	-
25	57M10329	1	Elec. Connector Housing	MECA Cab Controller J3
26	57M9817	1	Elec. Connector Housing	Ethernet Switch
27	57M7500	1	Elec. Connector Terminal	Left Extremity Light
28	57M7723	1	Electrical Connector Assy	-
28	57M7784	1	Electrical Connector Assy	Left Extremity Light
29	57M9804	1	Elec. Connector Housing	Left External Switchs
30	57M7264	1	Elec. Connector Housing	Left Fender Harness Connector
30	57M7283	1	Elec.Connect Locking Device	-
31	57M9796	1	Elec. Connector Housing	Gyro and Secondary Brake Leads
32	57M9792	1	Elec. Connector Housing	Dust Cap
33	57M9175	1	Elec. Connector Housing	PAPTOS Power Connector
34	57M10305	1	Elec. Connector Housing	Dust Cap
35	57M8821	1	Elec. Connector Terminal	Cab Battery Power
36	57M8821	1	Elec. Connector Terminal	Cab Battery Power
37	57M11797	5	Elec. Connector Accessory	-
38	57M8908	2	Clip	-

Cab Wiring Harness, Generation 4 CommandCenter™ 4100 Processor (2/3) (804101 - )

Нет текстового описания
