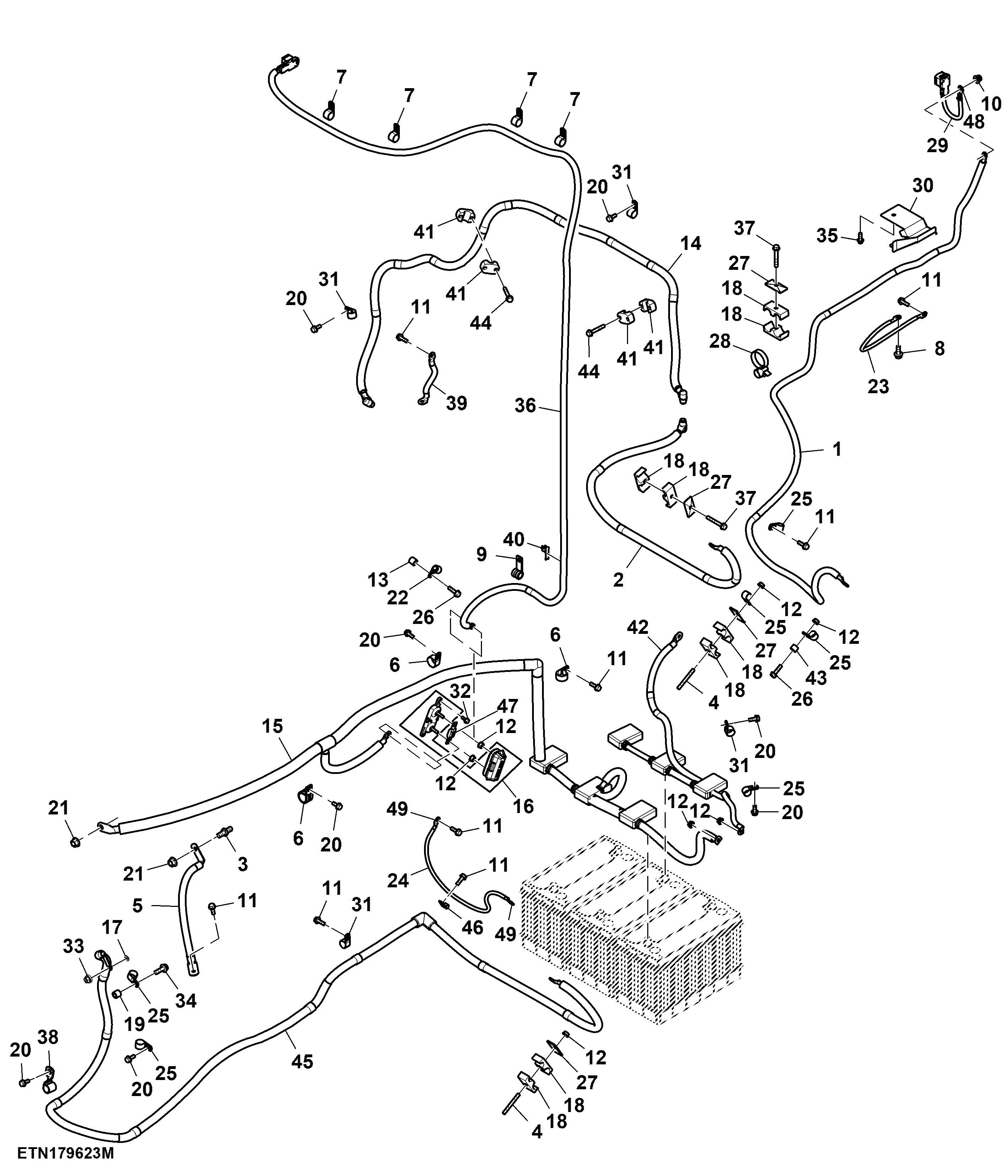

Battery Cable, W/ Back Up Pump, 13.5 L Engine

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE575299	1	Battery Cable	Cab Power
2	RE587255	1	Battery Cable	Relay Module To Solenoid
3	R136052	1	Stud	-
4	42M7034	2	Stud	-
5	RE574057	1	Ground Cable	-
6	57M12126	4	Clamp	-
7	57M9229	4	Clip	-
8	19M7785	1	Screw	M10 X 25
9	R343208	1	Clamp	-
10	14M7400	1	Lock Nut	M10
11	19M7867	11	Screw	M8 X 25
12	14M7298	7	Flange Nut	M8
13	28H3381	1	Spacer	0.493" X 0.675" X 5/8"
14	RE587253	1	Battery Cable	Solenoid To Backup Pump
15	RE575300	1	Battery Cable	Positive
16	RE239622	1	Junction Block	-
17	24M7055	1	Washer	8.400 X 16 X 1.600 mm
18	H115379	8	Clamp	-
19	R244801	1	Spacer	-
20	19M7866	13	Screw	M8 X 20
21	14M7299	2	Flange Nut	M12
22	57M10901	1	Clamp	-
23	RE306703	1	Battery Cable	Power Cable
24	RE575513	1	Battery Cable	Power Module Ground
25	57M12123	8	Clamp	-
26	19M7868	2	Screw	M8 X 30
27	H112567	4	Plate	-
28	T252445	1	Clamp	-
29	RE304437	1	Battery Cable	Cab Controller INCLUDES 57M8901
30	R553472	1	Bracket	-
31	57M12124	9	Clamp	-
32	19M7775	2	Screw	M6 X 16
33	RE285712	1	Nut	-
34	19M7786	1	Screw	M10 X 30
35	37M7084	1	Screw	M8 X 25
36	RE594427	1	Battery Cable	Roof Power INCLUDES (4) 57M9229 AND 57M11168; SUB FOR RE575307
37	19M7801	2	Screw	M8 X 60
38	R543182	1	Clamp	-
39	RE587437	1	Ground Cable	-
40	57M11168	1	Elec. Connector Accessory	-
41	H114876	4	Clamp	-
42	RE597671	1	Battery Cable	Negative SUB FOR RE581087
43	R545634	1	Stud	-
44	19M7800	4	Screw	M8 X 50
45	RE580383	1	Battery Cable	Alternator Cable ORDER RE588463
45	RE588463	1	Battery Cable	Alternator Cable
46	T102934	2	Clamp	-
47	57M9923	1	Elec. Connector Accessory	150 A
48	57M8901	1	Elec. Connector Terminal	-
49	57M12418	2	Elec. Connector Terminal	-

Battery Cable, W/ Back Up Pump, 13.5 L Engine
