Большое обновление пильных узлов

Смотреть

Тип техники

Бренд

Машина

Большое обновление пильных узлов

Смотреть

Открытый узел

Steering System, ACS™, W/ Back Up Pump ( - 052788)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7801	2	Screw	M8 X 60
2	38H5094	4	Nut	1-3/16"
3	38H5016	2	Elbow Fitting	-
4	51M7041	8	O-Ring	11.300 X 2.200 mm
5	T77857	4	O-Ring	-
6	H112567	2	Plate	-
7	RE337611	1	Check Valve	-
8	38H5009	2	Adapter Fitting	-
9	RE567470	1	Hydraulic Hose	Steering Valve Return
10	RE567472	1	Line	-
11	RE570973	2	Check Valve	INCLUDES T77932
12	T77932	15	O-Ring	-
13	H135155	4	Clamp	-
14	RE575211	1	Oil Line	-
15	RE576027	1	Line	SUB FOR RE565362
16	19M7897	1	Screw	M8 X 35
17	RE565316	1	Hydraulic Hose	Load Sense
18	RE575935	1	Hydraulic Hose	Steerinig Valve Pilot Supply SUB FOR RE565361
19	RE568286	1	Oil Line	-
20	RE567479	1	Line	Load Sense to Priority Valve ORDER RE576463; ALSO ORDER R125063, 14M7298 AND 19M7868
21	RE46688	1	Fitting Plug	-
22	51M7047	2	O-Ring	23.600 X 2.900 mm
23	RE579629	1	Oil Line	SUB FOR RE567004
24	RE567473	1	Line	-
25	E53830	1	Clamp	-
26	R542566	1	Spacer	-
27	R550794	2	Clamp	-
28	RE567253	1	Oil Line	-
29	RE567474	1	Oil Line	-
30	RE565305	2	Hydraulic Hose	-
31	RE575212	1	Oil Line	-
32	RE575056	1	Line	-
33	RE575054	1	Hydraulic Hose	-
34	RE575083	1	Line	-
35	RE575053	1	Hydraulic Hose	-
36	RE575217	1	Line	-
37	38H1161	1	Adapter Fitting	-
38	38H1193	1	Adapter Fitting	-
39	T77858	15	O-Ring	-
40	38H1324	1	Elbow Fitting	-
41	38H1463	2	Tee Fitting	-
42	38H1706	1	Tee Fitting	-
43	T78784	2	O-Ring	-
44	T76938	1	O-Ring	-
45	38H5002	2	Adapter Fitting	-
46	T77613	8	O-Ring	-
47	38H5003	1	Adapter Fitting	-
48	51M7043	1	O-Ring	15.300 X 2.200 mm
49	38H5004	5	Adapter Fitting	-
50	51M7045	10	O-Ring	19.300 X 2.200 mm
51	38H5018	3	Elbow Fitting	-
52	38H5067	1	Tee Fitting	-
53	38H5123	1	Tee Fitting	-
54	38H5385	2	Adapter Fitting	-
55	38H5013	1	Adapter Fitting	-
56	51M7048	1	O-Ring	29.600 X 2.900 mm
57	38H5166	1	Elbow Fitting	-
58	38H5192	2	Fitting	-
59	38H5122	2	Tee Fitting	-
60	R26375	1	O-Ring	-
61	R26906	1	O-Ring	-
62	RE575213	1	Oil Line	-
63	RE575214	1	Oil Line	-
64	R125063	1	Clamp	-
65	14M7298	1	Flange Nut	M8
66	19M7868	1	Screw	M8 X 30
67	RE576463	1	Hydraulic Hose	-
68	19M7867	1	Screw	M8 X 25
69	CB11489177	1	Clamp	-
70	19M8011	4	Cap Screw	M12 X 30
71	RE568376	1	Oil Line	-
72	X51H-24	2	Flange Fitting	-
73	T34248	1	O-Ring	-
74	24M7047	4	Washer	13 X 24 X 2.500 mm

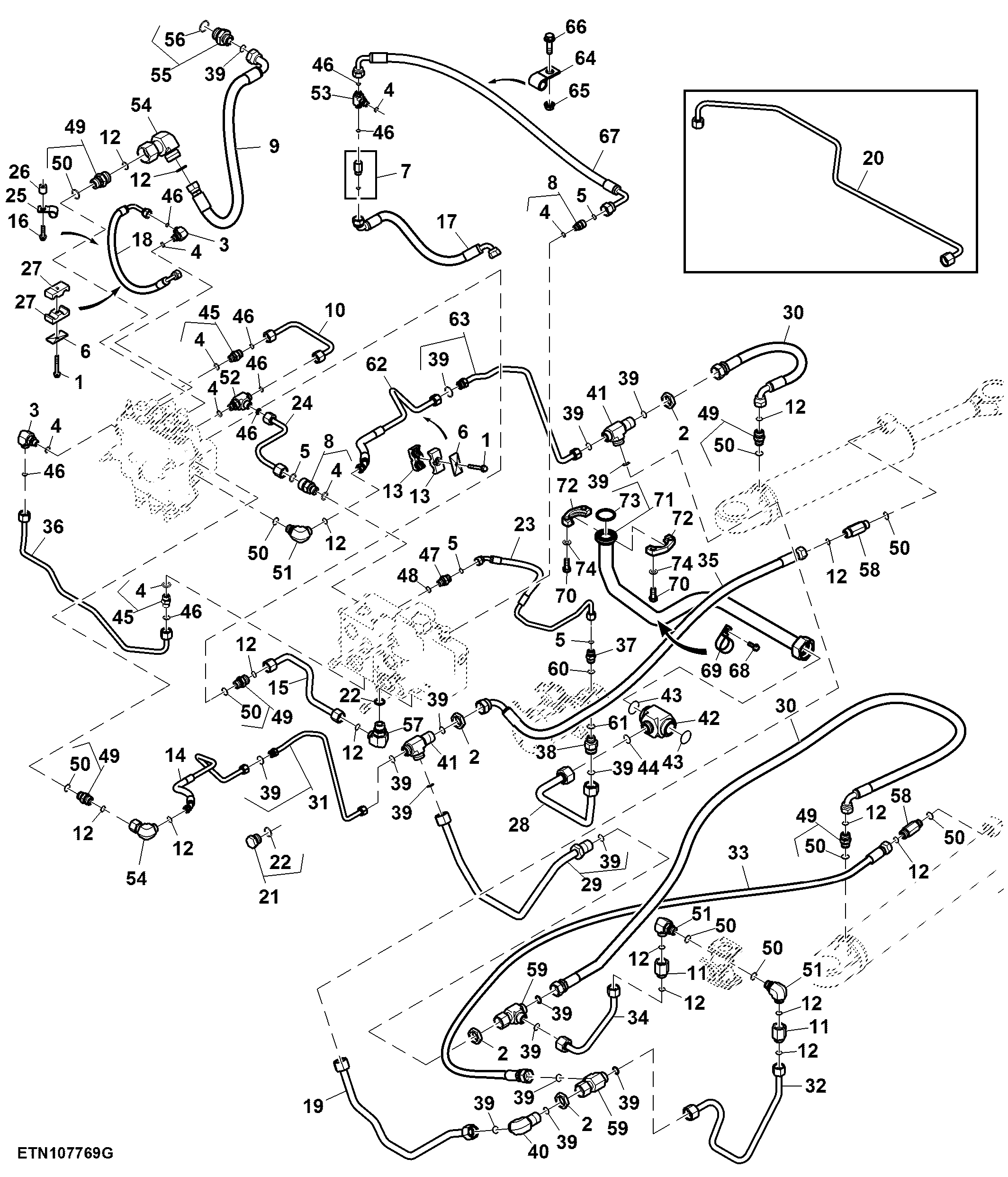

Steering System, ACS™, W/ Back Up Pump ( - 052788)

Нет текстового описания
