7th and 8th Remote SCV, High Flow, Single Reduction Axle

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R266977	8	Socket Head Screw	-
2	24M7095	11	Washer	8.400 X 15 X 1.600 mm
3	R267667	2	Cap	-
4	51M7041	3	O-Ring	11.300 X 2.200 mm
5	R77175	3	Cover	-
6	R553083	1	Plug	-
7	19M7788	2	Screw	M12 X 25
8	R553084	1	Plug	-
9	RE272882	6	Tube	-
10	R10093	12	O-Ring	-
11	14M7327	3	Lock Nut	M8
12	R267668	2	Hose Fitting	-
13	R202160	4	Clamp	-
14	RE187161	1	Clamp	-
15	N404296	1	Tee Fitting	-
16	R551248	1	Hydraulic Hose	-
17	R184956	1	Hose	-
18	RE562345	1	Bracket	-
19	19M9139	2	Cap Screw	M20 X 130
20	24M7242	4	Washer	21.400 X 42 X 5 mm
21	19M9135	2	Cap Screw	M20 X 100
22	19M7815	3	Screw	M12 X 60
23	RE557706	1	Manifold	-
24	RE560509	1	Line	-
25	38H1378	1	Elbow Fitting	-
26	T77857	2	O-Ring	-
27	38H5002	1	Adapter Fitting	-
28	T77613	3	O-Ring	-
29	38H5105	1	Tee Fitting	-
30	RE60701	2	Diagnostic Coupling	-
31	38H5234	1	Elbow Fitting	-
32	T76938	3	O-Ring	-
33	38H5006	1	Adapter Fitting	-
34	51M7048	2	O-Ring	29.600 X 2.900 mm
35	38H5149	1	Elbow Fitting	-
36	57M10233	6	Tie Band	-
37	RE575427	1	Oil Line	-
38	RE572532	1	Oil Line	-
39	R552932	1	Bracket	-
40	R551249	1	Hydraulic Hose	-
41	RE586857	1	Chassis Wiring Harness	SUB FOR RE574000
42	T78612	1	O-Ring	-
43	RE574947	1	Cover	-
44	RE283453	1	Manifold	-
45	RE574946	1	Cover	-
46	51M7045	1	O-Ring	19.300 X 2.200 mm, USE WITH RE292728
47	RE292728	1	Manifold	ORDER RE271469
48	RE308284	2	Selective Control Valve	-
48	RE588375	2	Selective Control Valve	140 LPM, SUB FOR RE580227
49	RE559661	1	Breakaway Coupler	-
50	RE559660	1	Breakaway Coupler	-
51	RE190805	2	Diagnostic Coupling	-
52	R116115	1	Fitting	ALSO ORDER 51M7045; USE WITH RE292728
53	RE271733	2	Lever	-
54	RE271469	1	Manifold	-

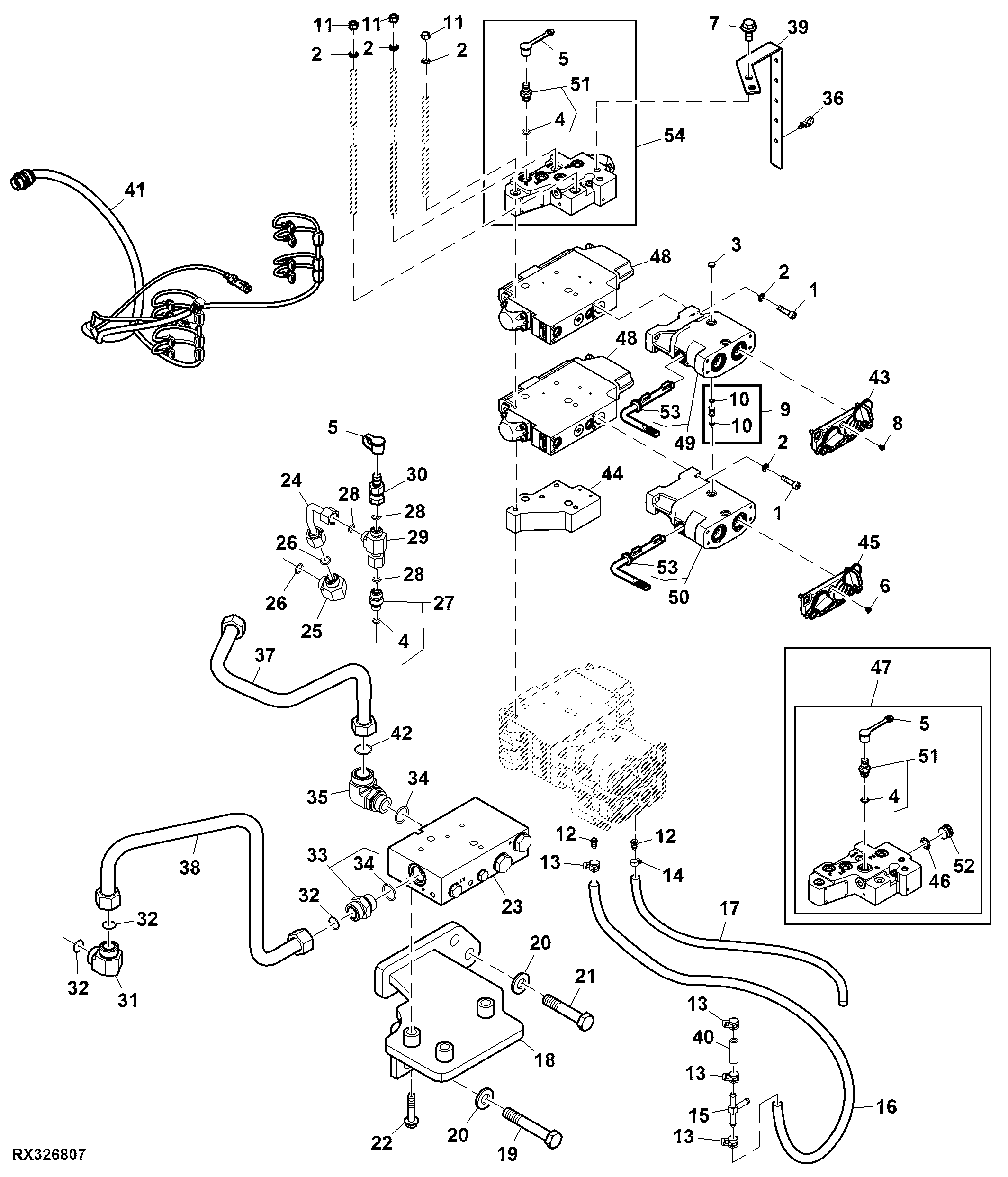

7th and 8th Remote SCV, High Flow, Single Reduction Axle
