Открытый узел

23 Engine 6135RW404-DZ101262

23 Engine 6135RW404-DZ101262

23 Engine 6135RW404-DZ101262

23 Engine 6135RW404-DZ101262

23 Engine 6135RW404-DZ101262

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

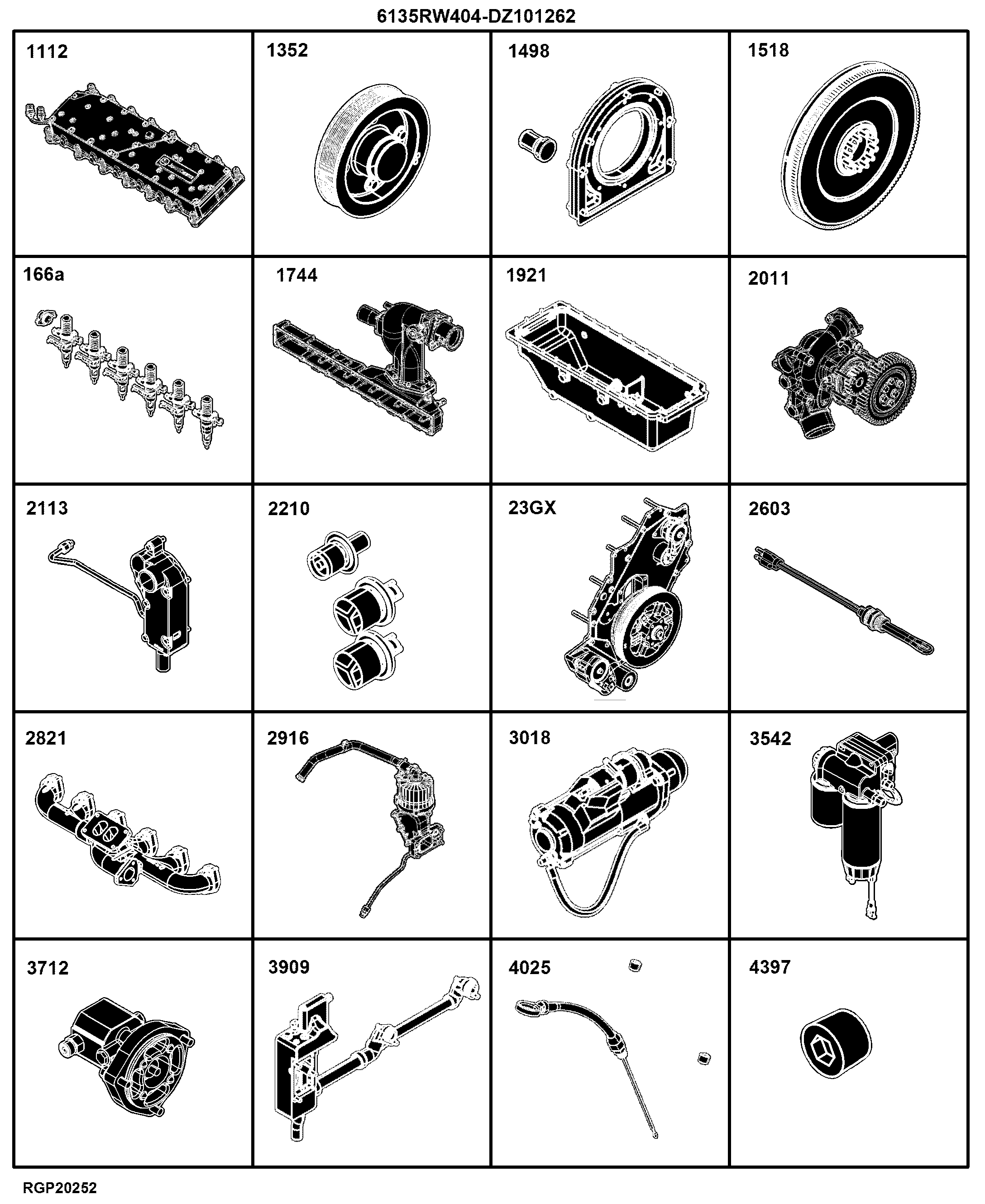

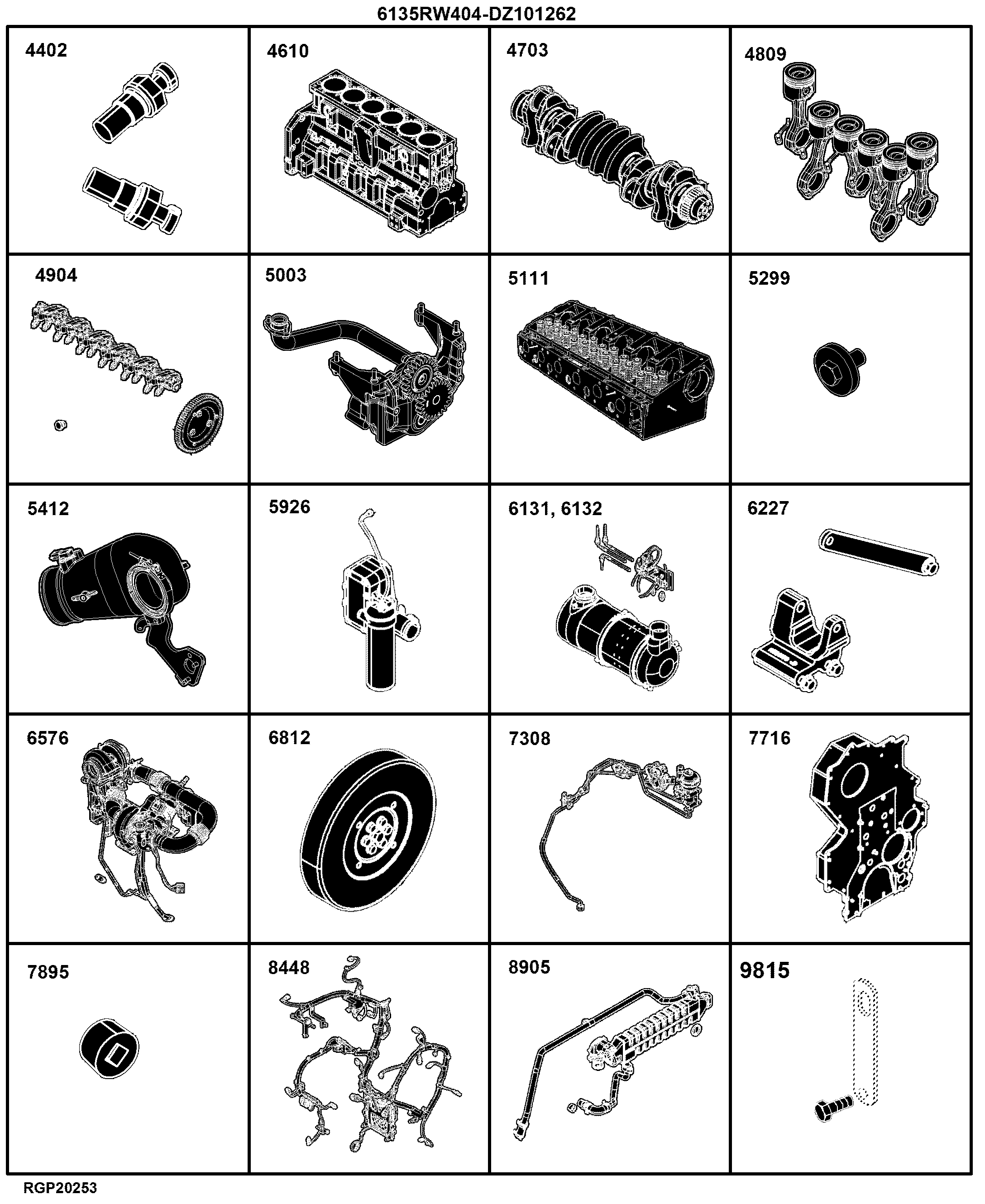

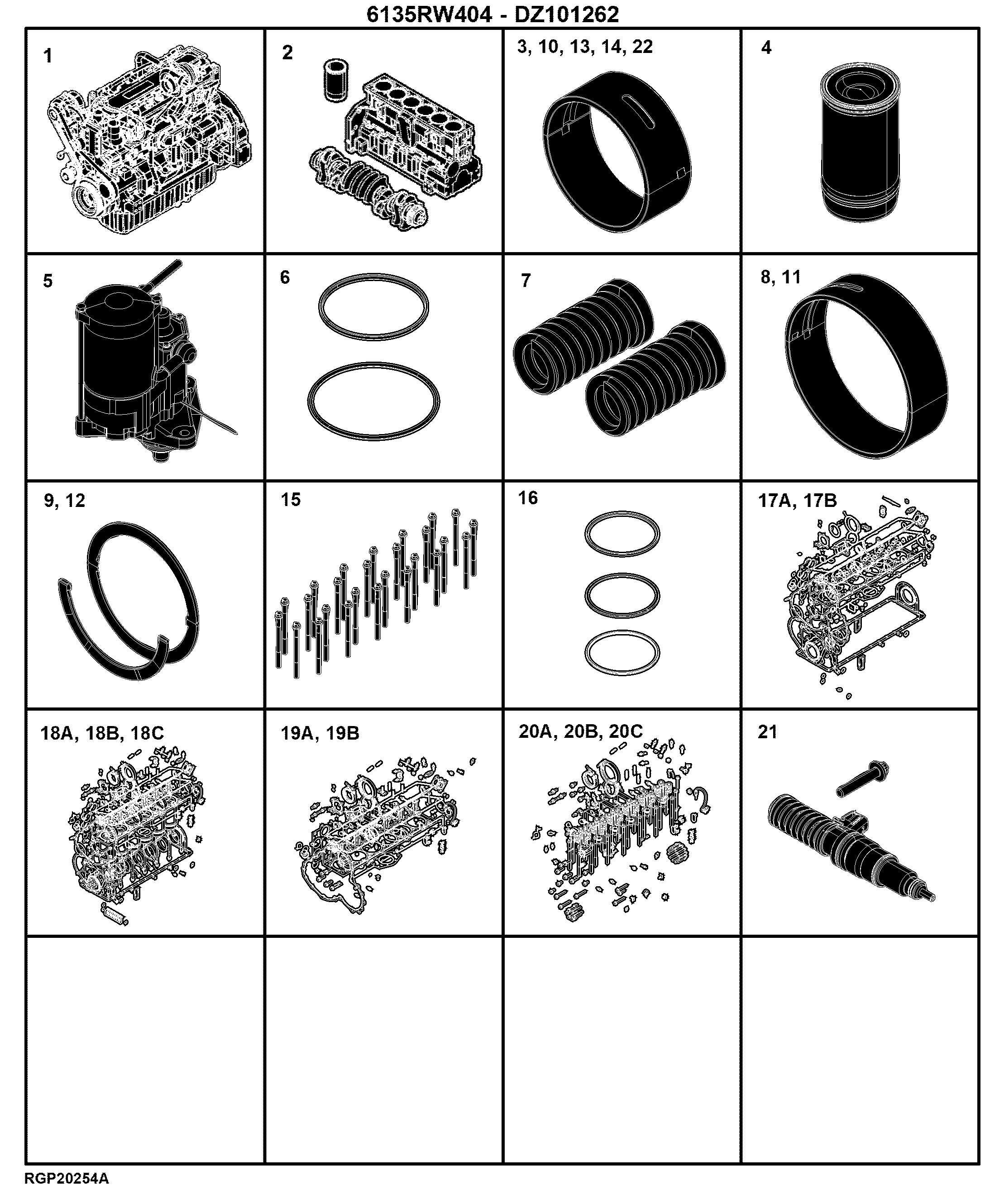

23 Engine 6135RW404-DZ101262

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	9901 Bearing Kit, Connecting Rod	-
-	-	1	9901 Cylinder Head Removal Kit (2/2)	-
-	-	1	9901 Cylinder Head Removal Kit (1/2)	-
-	-	1	9901 Cylinder Head Bolt Kit	-
-	-	1	9901 Crankshaft Thrust Bearing Kit, Undersized	-
-	-	1	9901 Crankshaft Thrust Bearing Kit, Undersized	-
-	-	1	9901 Crankshaft Main Bearing Kit, Undersized	-
-	-	1	9901 Crankshaft Main Bearing Kit, Undersized	-
-	-	1	9901 Crankshaft Bearing Kit	-
-	-	1	9901 Electronic Unit Injector	-
-	-	1	9901 Bearing Kit	-
-	-	1	9815 Lift Straps Hardware	-
-	-	1	8905 Exhaust Gas Recirculation	-
-	-	1	8448 Engine Wiring Harness	-
-	-	1	7895 Air Compressor Mounting Plug	-
-	-	1	7716 Timing Gear Cover	-
-	-	1	7308 Fuel Dosing System	-
-	-	1	6812 Pulley with Dampener	-
-	-	1	9901 O Ring Kit, Cylinder Liner	-
-	-	1	9901 Valve / Spring / Rotator	-
-	-	1	9901 Thrust Washer Kit	-
-	-	1	9901 Thrust Washer Kit	-
-	-	1	9901 Starter Motor Kit	-
-	-	1	9901 Short Block Assembly	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Piston Ring Kit	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	6576 Turbocharger	-
-	-	1	9901 Gasket Kit (2/2)	-
-	-	1	9901 Gasket Kit (1/2)	-
-	-	1	9901 Engine Overhaul Kit (3/3)	-
-	-	1	9901 Engine Overhaul Kit (2/3)	-
-	-	1	9901 Engine Overhaul Kit (1/3)	-
-	-	1	9901 Engine Hardware Kit (3/3)	-
-	-	1	9901 Engine Hardware Kit (2/3)	-
-	-	1	9901 Engine Hardware Kit (1/3)	-
-	-	1	2210 Thermostat	-
-	-	1	3542 Fuel Filter	-
-	-	1	3018 Starter Motor	-
-	-	1	2916 Ventilating System	-
-	-	1	2821 Exhaust Manifold	-
-	-	1	2603 Engine Coolant Heater	-
-	-	1	23GX Fan Drive(3/3)	-
-	-	1	23GX Fan Drive (2/3)	-
-	-	1	23GX Fan Drive (1/3)	-
-	-	1	3712 Fuel Transfer Pump	-
-	-	1	2113 Thermostat Cover	-
-	-	1	2011 Water Pump	-
-	-	1	1921 Oil Pan	-
-	-	1	1744 Air Intake Manifold	-
-	-	1	166A Electronic Unit Injector	-
-	-	1	1518 Flywheel	-
-	-	1	1498 Flywheel Housing	-
-	-	1	1352 Crankshaft Pulley	-
-	-	1	4904 Valve Actuating Mechanism	-
-	-	1	6227 Alternator Mounting	-
-	-	1	6132 Aftertreatment, Exhaust System (9470/9520RT Tractor)	-
-	-	1	6131 Aftertreatment, Exhaust System (9420/9470/9520R Tractor)	-
-	-	1	5926 Engine Oil Cooler and Oil Filter	-
-	-	1	5412 Air Intake Turbo	-
-	-	1	5299 Auxiliary Drive Hardware	-
-	-	1	5111 Cylinder Head With Valves	-
-	-	1	5003 Engine Oil Pump	-
-	-	1	1112 Valve Cover	-
-	-	1	4809 Connecting Rods and Pistons	-
-	-	1	4703 Crankshaft And Bearings	-
-	-	1	4610 Cylinder Block	-
-	-	1	4402 Tachometer Drive Sensors	-
-	-	1	4397 Starting Aid Plug	-
-	-	1	4025 Engine Oil Dipstick	-
-	-	1	3909 Thermostat Housing	-
