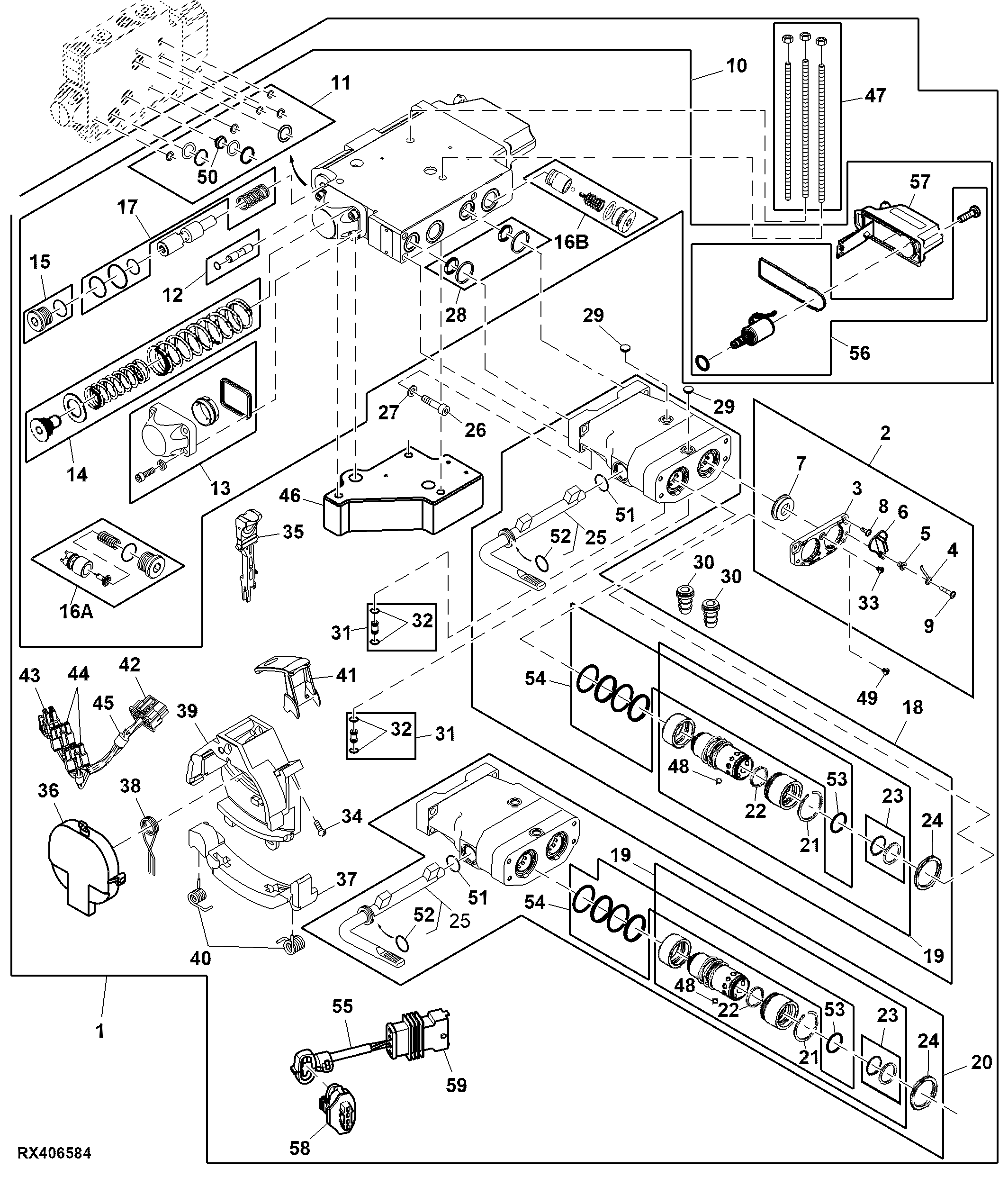

Attachment, Valve, Rear 6th SCV, High Flow (For CAN Controlled SCV's)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE310796	1	Selective Control Valve	-
2	RE574945	1	Cover	Number VI, Gray, SCV Coupler SUB FOR RE289060
3	R552383	1	Retainer	-
4	-	2	Part 4	-
5	-	2	Part 5	-
6	-	2	Part 6	-
7	L214847	2	Grommet	-
8	19M8648	2	Screw	M6 X 16
9	19M9178	2	Screw	M6 X 30
10	RE588375	1	Selective Control Valve	SUB FOR RE580227 OR RE308284
11	RE582808	1	Seal Kit	SUB FOR RE279692
12	RE279693	1	Valve Kit	USE WITH RE308284
13	RE279694	1	Cap Kit	-
14	RE279695	1	Spring Kit	USE WITH RE308284
14	RE568184	1	Spring Kit	USE WITH RE588375 OR RE580227
15	RE279696	1	Plug Kit	-
17	RE279699	1	Spring Kit	USE WITH RE308284
17	RE568186	1	Spring Kit	USE WITH RE588375 OR RE580227
18	RE559661	1	Breakaway Coupler	Offset High Profile INCLUDE RE256693; SUB FOR RE262017
19	RE577560	4	Breakaway Coupler	SUB FOR RE256693
20	RE559660	1	Breakaway Coupler	Horizontal Mid Profile INCLUDE RE256693; SUB FOR RE262016; SCV I Coupler
21	R257100	4	Snap Ring	-
22	R222761	4	O-Ring	-
23	RE186599	4	Seal	-
24	R186598	4	Snap Ring	-
25	RE271733	2	Lever	-
26	R266977	5	Socket Head Screw	-
27	24M7095	5	Washer	8.400 X 15 X 1.600 mm
28	RE281895	1	Seal Kit	-
29	R267667	2	Cap	-
30	R267668	2	Hose Fitting	-
31	RE272882	4	Tube	-
32	R10093	2	O-Ring	-
33	L200313	1	Plug	Gray
34	R250192	2	Screw	-
35	RE310676	1	Control Lever	-
36	RE267676	1	Potentiometer	-
37	R125878	1	Arm	-
38	R125879	1	Torsion Spring	-
39	R171535	1	Bracket	-
40	R217571	2	Torsion Spring	-
41	R290068	1	Cover	-
42	57M7470	1	Elec. Connector Housing	-
42	57M7474	1	Elec. Connector Terminal	-
43	57M7718	1	Electrical Connector Assy	-
43	57M7712	1	Electrical Connector Assy	-
44	57M7708	2	Electrical Connector Assy	-
45	RE306874	1	Cab Wiring Harness	-
46	RE283453	1	Manifold	-
47	RE304830	1	Stud Kit	-
48	R107859	40	Ball	-
49	L171761	1	Plug	Black
50	R540643	1	Valve	-
51	R207188	1	Ring	-
52	R27564	1	O-Ring	-
53	R257100	4	Snap Ring	-
54	RE186600	4	Seal	-
55	RE343006	1	Wiring Harness	-
56	RE580941	1	Valve Kit	SUB FOR RE341710; USE WITH RE337466 OR RE580227 OR RE308284
56	RE588372	1	Valve Kit	USE WITH RE588375
57	RE567656	1	Electronic Control Unit	USE WITH RE308284
57	RE567604	1	Electronic Control Unit	USE WITH RE580227
57	RE588373	1	Electronic Control Unit	USE WITH RE588375
58	57M9498	1	Elec. Connector Housing	-
59	57M9500	1	Elec. Connector Accessory	-
16A	RE279697	2	Valve Kit	Load Check Valve USE WITH RE308284
16A	RE568185	2	Check Valve	Load Check Valve ORDER RE591268
16B	RE591268	2	Check Valve	Load Check Valve USE WITH RE588375, RE580227 OR RE337466

Attachment, Valve, Rear 6th SCV, High Flow (For CAN Controlled SCV's)
