TRANSMISSION INPUT SHAFT, GEARS, LUBE PUMP AND BEARINGS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH128528	1	Rotor	-
2	H82234	1	Plate	-
3	H82232	1	Washer	-
4	H82233	1	Bushing	-
5	JD8257	1	Bearing Cup	-
6	AR94761	1	Bearing Cone	-
7	R394R	8	O-Ring	-
8	H142030	1	Housing	SUB AH128528, H82234, H82232, H82233, JD8257, H142031, H142030 AND TY6304
9	19M7786	3	Screw	M10 X 30
10	15H638	1	Pipe Plug	1/8"
11	H131296	1	Oil Tube	-
12	H132892	1	Shim	0.076 (0.003 ) THICK
12	H132894	1	Shim	0.508 (0.02") THICK
12	H132893	1	Shim	0.127 (0.005") THICK
13	PM38655	1	Sealant	(SUB FOR T43514)
14	H131297	1	Oil Tube	-
15	19M8162	1	Screw	M10 X 40
16	AH125228	1	Fitting	-
17	R495R	2	O-Ring	-
18	AH121580	1	Screen	-
19	AH20868	1	Breather	-
20	19M7844	4	Screw	M16 X 45
21	42M7029	4	Stud	-
22	H133165	1	Housing	-
23	JD8237	1	Bearing Cup	-
24	JD10182	1	Bearing Cone	-
25	P43969	1	Snap Ring	-
26	H129564	1	Shift Collar	(NARROW GROOVE) (USE WITH H135112)
26	CE18505	1	Bushing	(WIDE GROOVE) (USE WITH DE19870)
27	H129565	1	Shift Collar	THIRD GEAR
28	H135943	1	Gear	-
29	26M4228	1	Shaft Key	8 X 28 mm
30	H75358	1	Dowel Pin	-
31	H110539	1	Orifice	-
32	-	1	Part 35	-
33	AH131861	1	Pinion Shaft	-
33	AH137350	1	Pinion Shaft	EXPORT ONLY - AUSTRALIA
34	H129525	1	Splined Coupling	-
35	M41029	2	Snap Ring	-
36	14M7299	4	Flange Nut	M12
37	H142031	1	Sleeve	ALSO USED FOR SUB ON AH131699

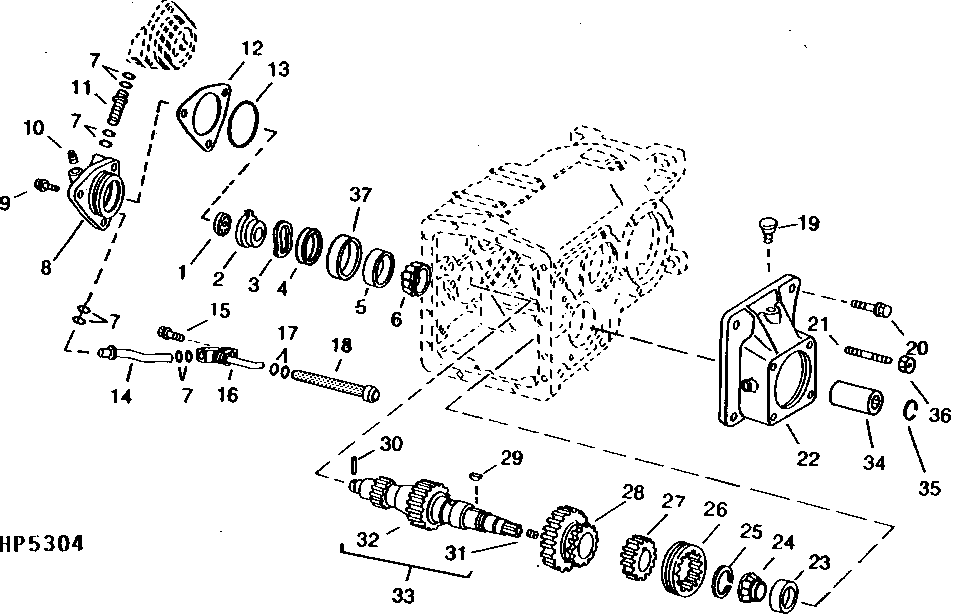

TRANSMISSION INPUT SHAFT, GEARS, LUBE PUMP AND BEARINGS
