AIR CONDITIONING AND HEATER HOUSING AND FILTERS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H161021	1	Housing	-
2	19M7862	1	Screw	M6 X 20
3	H158830	1	Clip	(SUB 57M8855)
4	H163397	1	Seal	-
5	H157566	1	Air Duct	-
6	H153438	1	Seal	(SUB H207182)
6	H207182	1	Seal	-
7	R46414	2	Clamp	-
8	AH115836	1	Air Filter	RECIRCULATING FILTER
9	H115031	1	Cover	-
10	AH120546	1	Housing	-
11	H177592	2	Housing	(SUB FOR H114142)
12	H118619	1	Seal	-
13	AH163317	1	Housing	(ALSO ORDER H173793), (SUB FOR AH122444 OR AH138601)
14	H127978	1	Dust Shield	-
15	37M7089	1	Screw	M6 X 12
16	AH134884	1	Support	-
17	H119362	5	Screw	-
18	19M7862	1	Screw	M6 X 20
19	AH120547	1	Filter	EVAPORATOR FILTER
20	H126589	1	Air Duct	-
21	H158525	1	Housing	(USE WITH AH138601)
21	H173793	1	Housing	(USE WITH AH163317)
22	H126590	1	Cover	-
23	H130091	1	Shield	-
24	AH125505	1	Resistor	-
25	H123998	1	Screw	-
26	H118872	1	Conduit	-
27	TY22472	1	Clamp	-
28	H118871	1	Conduit	-
29	H146429	1	Fitting	-
30	H159636	1	Tube	-
31	H150385	1	Check Valve	-
32	19M7866	1	Screw	M8 X 20
33	H137326	1	Support	-
34	RE198074	1	Temperature Switch	(SUB FOR AH144020)
35	H123998	2	Screw	-
36	37M7058	2	Screw	M8 X 20
37	H119187	1	Pad	-

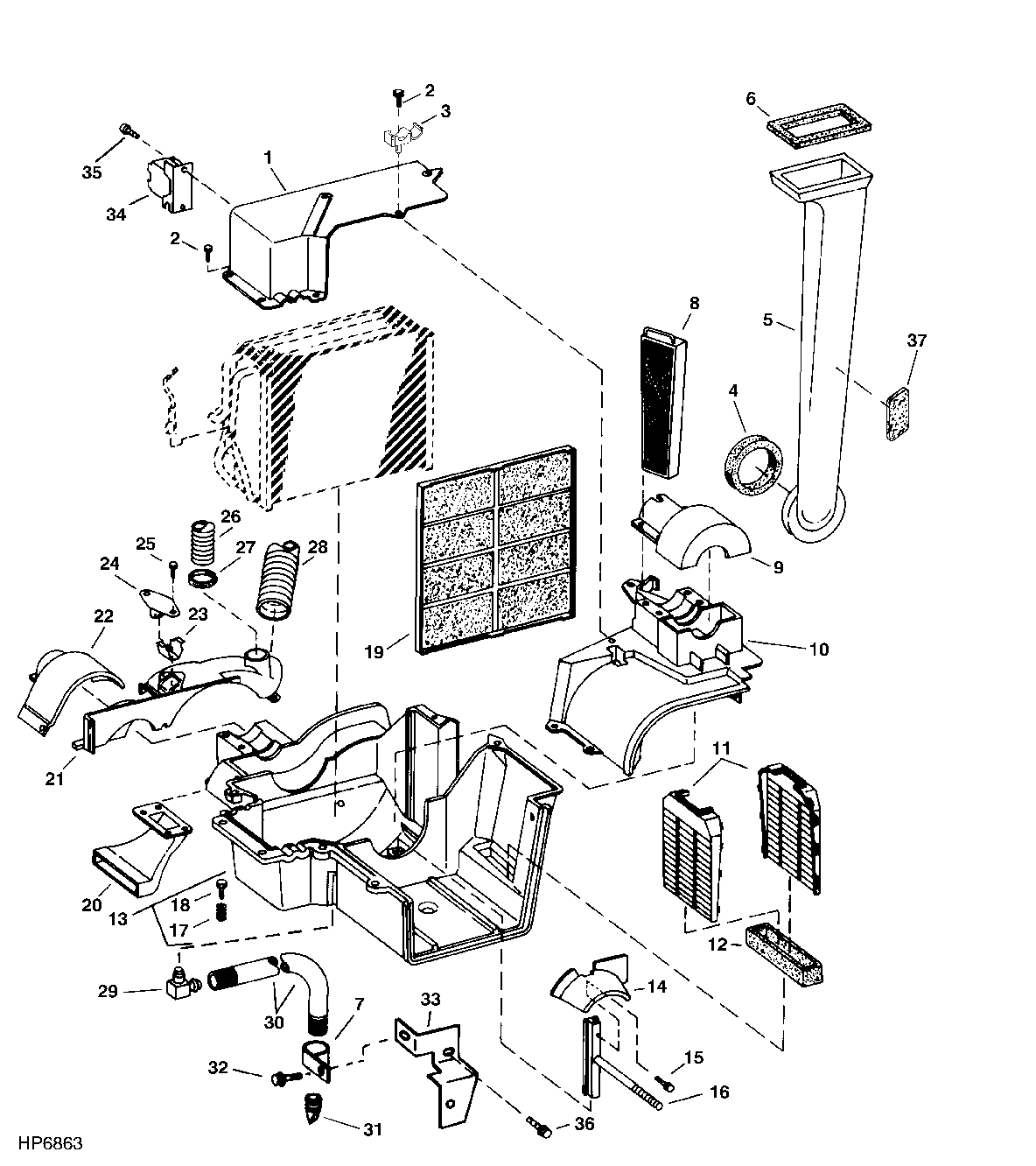

AIR CONDITIONING AND HEATER HOUSING AND FILTERS
