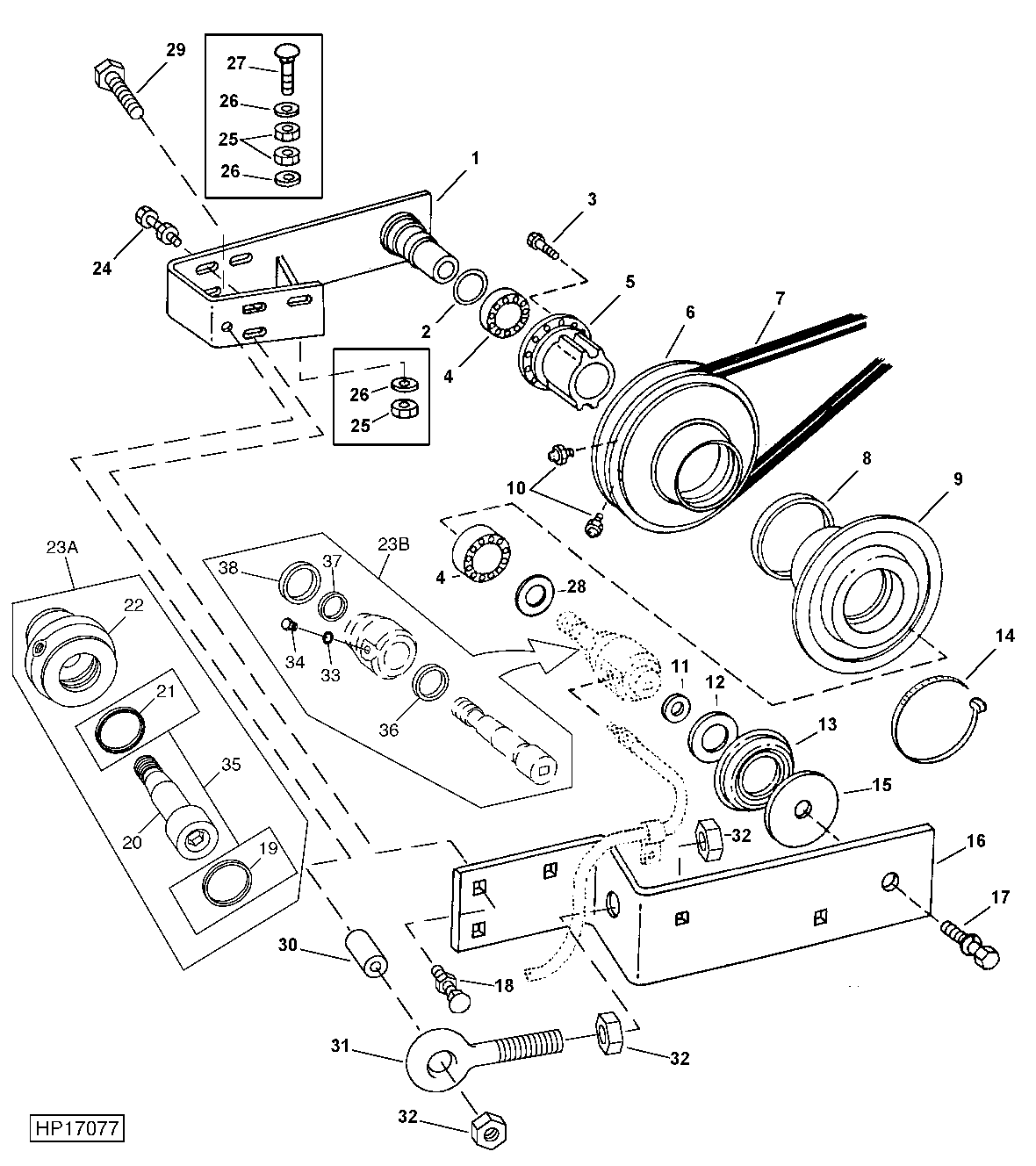

Variable Drive Upper Countershaft, Sheaves and Supports

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH167579	1	Bracket	(SUB FOR AH120972, AH154961 OR AH162787)
2	R31378	1	O-Ring	-
3	19M7868	6	Screw	M8 X 30
4	JD10018	2	Ball Bearing	-
5	H97378	1	Hub	-
6	AH165220	1	Pulley	(SUB FOR H125489 OR AH157934)
7	H125565	1	V-Belt	LGTH = 4250 mm, WIDTH = 32 mm
7	H151952	1	V-Belt	LGTH = 4300 mm, WIDTH = 32 mm, (SUB FOR H140160)
8	AH136497	1	Seal	(SUB FOR AH94854)
9	H160869	1	Half Sheave	(SUB FOR H125490)
10	JD7759	2	Lubrication Fitting	-
11	24H1342	1	Washer	17/32" X 1-1/4" X 0.036"
12	H101448	1	Washer	-
13	H201042	1	Boot	(SUB FOR H93084)
14	H77698	1	Tie Band	-
15	H98409	1	Washer	-
16	H166971	1	Strap	(SUB FOR H134087 OR H161387)
17	19H1777	1	Cap Screw	1/2" X 1-3/4", (USE WITH AH96091 OR AH154960)
17	12H301	1	Lock Washer	1/2", (USE WITH AH96091 OR AH154960)
17	19M7793	1	Screw	M16 X 40, (USE WITH AH169302)
18	03M7192	3	Bolt	M10 X 30
18	14M7296	3	Flange Nut	M10
19	H100247	1	Seal	-
20	H100244	1	Piston	-
21	H100246	1	Seal	-
22	H100245	1	Hydraulic Cylinder Barrel	-
24	19M7790	3	Screw	M12 X 35
24	14M7299	3	Flange Nut	M12
25	14H821	3	Nut	5/8"
26	24M7053	3	Washer	17 X 30 X 3 mm
27	03H2308	1	Bolt	5/8" X 3-1/4"
28	24H1452	1	Washer	1-1/32" X 1-3/4" X 0.105"
29	19M7892	1	Cap Screw	M20 X 80
30	H162288	1	Bushing	-
31	H162269	1	Eyebolt	-
32	14M7277	3	Nut	M20
33	R28782	1	O-Ring	-
34	R51031	1	Fitting	-
35	AH171185	1	Hydraulic Cylinder Kit	VARIABLE SPEED FEEDER HOUSE, (SUB AH209762, AH209763 AND AH211578)
36	AH209762	1	Seal	-
37	AH209763	1	Seal	-
38	AH211578	1	Seal	-
23A	AH154960	1	Hydraulic Cylinder	(SUB FOR AH96091), (SUB AH169302)
23B	AH211577	1	Hydraulic Cylinder	(ALSO ORDER 19M7793), (SUB FOR AH169302)

Variable Drive Upper Countershaft, Sheaves and Supports
