Straw Walker Bearing Kit (650101 - 665100)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

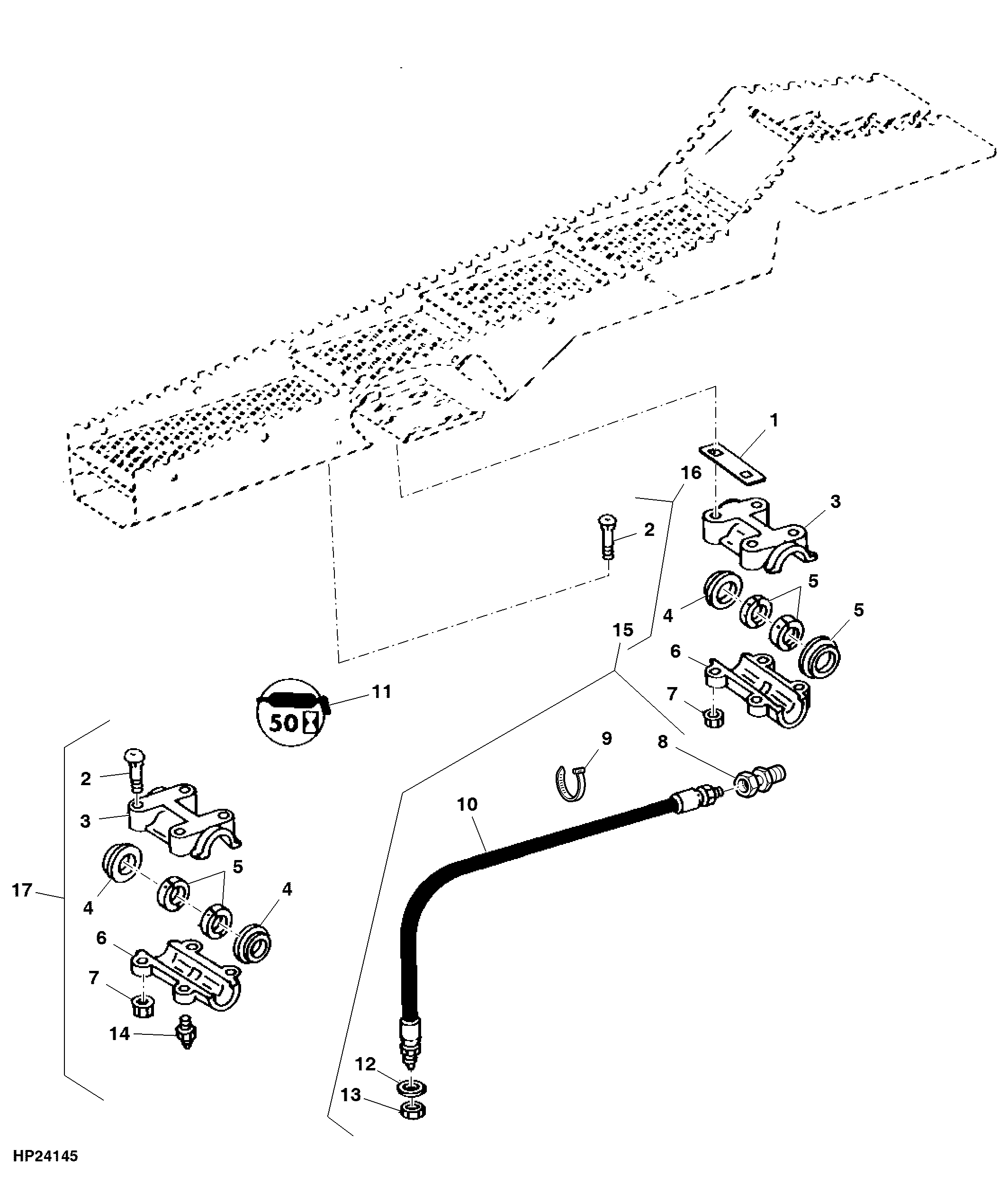

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H139667	2	Strap	-
2	03M7359	4	Bolt	M10 X 85
3	H152464	1	Bearing	UPPER, (SUB FOR H147747 OR H150717)
4	H151597	2	Seal	RUBBER, (SUB H154216)
4	H154216	2	Seal	-
5	AH141393	2	Locking Collar	CRANKSHAFT (8 PER CRANK)
6	H152465	1	Bearing	LOWER, (SUB FOR H147748 OR H150716)
7	14M7465	4	Lock Nut	M10
8	AN71222	1	ADAPTER FITTING	SWIVEL, (SUB FOR AH145706)
9	R44302	10	Tie Band	-
10	AH144816	1	Hose	LGTH = 2825 mm, LUBRICAITON (FRONT BEARING)
11	H152602	1	Label	50 HOUR LUBRICATION, (SUB FOR H109845)
12	24H1307	1	Washer	13/32" X 1" X 1/16"
13	E12379	1	Nut	-
14	JD7759	1	Lubrication Fitting	REAR BEARING ONLY
15	AH145262	1	Kit	LUBE HOSE (FRONT BEARING) USE ON COMBINES WITH OLD CRANKSHAFT PRIOR TO 1993, (SUB AH145935)
15	AH145935	1	Kit	LUBE HOSE (FRONT BEARING) (ILLUSTRATED)
16	AH145263	1	Kit	FRONT BEARING AND HOSE, USE ON COMBINES WITH OLD CRANKSHAFT PRIOR TO 1993, (SUB AH145687)
16	AH145687	1	Kit	FRONT BEARING AND HOSE (ILLUSTRATED)
17	AH147743	1	Kit	(SUB AH168158, AN71222, (2) H154216, JD7759, (4) 03M7359 AND (4) 14M7400)
