Straw Chopper Housing And Knifebank ( - 655100)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7866	1	Screw	M8 X 20
2	19M7784	1	Screw	M10 X 20
3	14M7296	1	Flange Nut	M10
4	14M7298	1	Flange Nut	M8
5	AH142779	1	Extension	SUB FOR AH135394
5	AH130948	1	Extension	-
6	H128709	4	Washer	-
7	H131161	2	Pressed Flanged Housing	-
8	JD10387	2	Ball Bearing	-
8	AH139260	2	Bearing With Housing	BEARING IS PART OF CAST HOUSING
9	AH126221	2	Pressed Flanged Housing	-
10	JD7846	2	Lubrication Fitting	-
11	JD8576	2	Eccentric Locking Collar	-
12	24M7239	6	Washer	10.700 X 21 X 2.500 mm
13	19M7805	3	Screw	M10 X 45
14	14M7396	2	Lock Nut	M8
15	24M7207	2	Washer	8.400 X 24 X 2 mm
16	H131612	2	Guard	-
17	19M7867	1	Screw	M8 X 25
18	AH130621	1	Angle	-
18	AH139681	1	Support	SUB FOR AH138630
19	19M7786	1	Screw	M10 X 30
20	19M7407	2	Cap Screw	M8 X 25
21	AH138155	1	Sheet	-
21	AH143048	1	Sheet	-
22	03M7191	1	Bolt	M10 X 25
23	28H1518	2	Washer	0.493" X 0.675" X 5/16"
24	14M7337	6	Lock Nut	M10
24	A51212	1	Lock Nut	-
25	AH165936	1	Sheet	SUB FOR AH138157
26	H84992	2	Strap	-
27	11M7059	2	Cotter Pin	3.200 X 20 mm
28	24H1341	2	Washer	17/32" X 15/16" X 0.060"
29	B28970	2	Spring	-
30	H136179	2	Pin	-
31	H231742	2	Handle	SUB FOR APPL H85184
32	03M7184	4	Bolt	M8 X 20
33	AH121493	1	Drive Sprocket	SUB AH135837 AND (2) H141388
33	AH135837	1	Drive Sprocket	-
34	H84990	4	Clamp	-
36	H88800	1	Channel	DOUBLE BLADE BRACKET
36	P48067	2	Bracket	SINGLE BLADE BRACKET
38	Z5086H	1	Rivet	-
39	AH89918	1	Bracket	DOUBLE BLADE ASSY.
39	AP23601	1	Bracket	-
40	AH139791	1	Sheet	SUB FOR AH135721 OR AH138891
40	AH144478	1	Sheet	WIDE SPREAD STRAW CHOPPER
41	AH131865	1	Sheet	-
41	AH138156	1	Sheet	SUB FOR AH135461, SUB AH165937
41	AH165937	1	Sheet	-
42	19M7785	1	Screw	M10 X 25
43	H99025	1	Dowel Pin	(SUB FOR H84991)
44	AH139682	1	Support	(SUB FOR AH138631)
44	AH130620	1	Angle	-
45	H126334	4	Lock Washer	-
46	19M7809	4	Screw	M10 X 70
47	14M7400	4	Lock Nut	M10
48	H149102	2	Safety Sign	"WARNING" CHOPPER POSITION, (SUB FOR H144288)
48	H149103	2	Safety Sign	"WARNING" CHOPPER POSITION (FRENCH), (SUB FOR H144290)
49	H146308	1	Shield	(SUB FOR H144299 OR H145854)
50	03M7184	9	Bolt	M8 X 20
51	14M7298	9	Flange Nut	M8
52	14M7274	3	Nut	M10
53	H145319	1	Cover	-
54	H139682	1	Support	-
55	H139681	1	Support	-
56	H145857	2	Label	"WARNING" CHOPPER POSITION
56	H145858	1	Label	"WARNING" CHOPPER POSITION (FRENCH)
57	H145778	2	Rail	-
58	H172440	1	Pin Fastener	(SUB FOR H141135 OR H149993)
59	J16931	2	Pin	-
59	11M7059	2	Cotter Pin	3.200 X 20 mm
60	03M7198	2	Bolt	M12 X 30
61	14M7299	2	Flange Nut	M12
..	BH80153	1	Complete Goods/Ship. Bundle	CHOPPER WITH DRIVES (CORN)
35A	H128114	1	Support	-
35B	AH140129	1	Channel	SUB FOR AH135549
37A	E76372	1	Section	-
37B	H215004	29	Blade	SUB FOR H142141

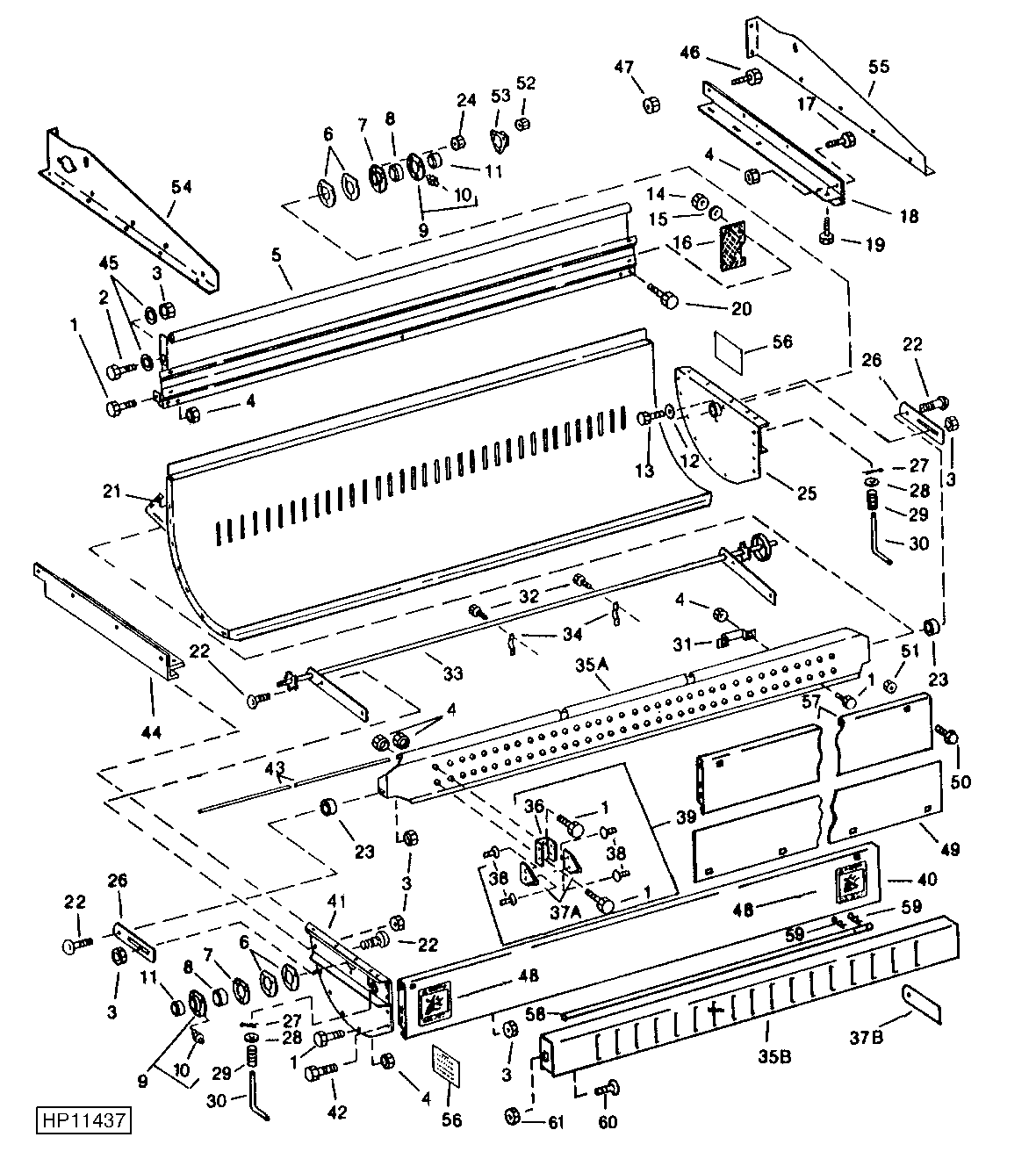

Straw Chopper Housing And Knifebank ( - 655100)
