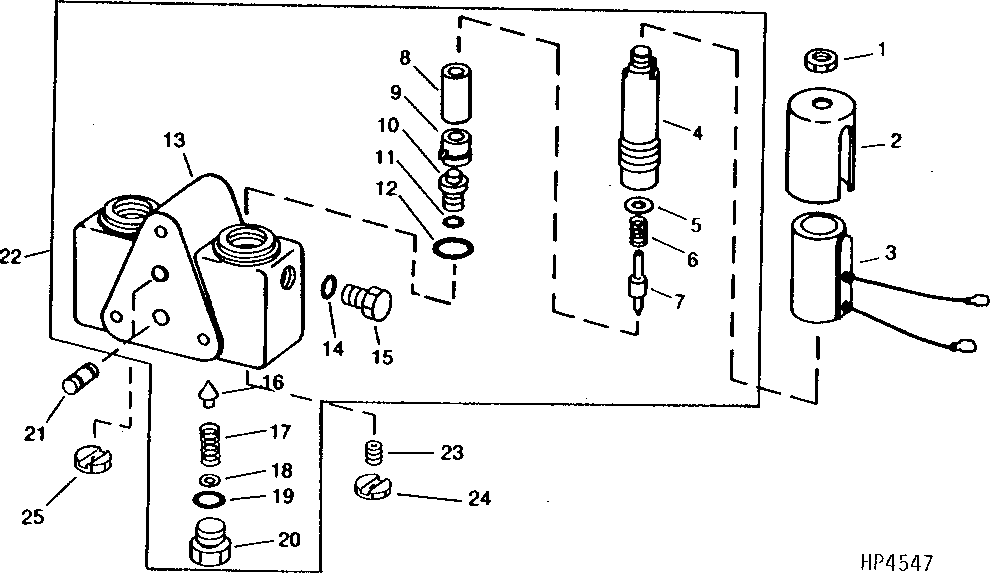

Solenoid Control Valve for Reel Lift / Variable and Cylinder Speed

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	A4655R	2	Nut	-
2	E62942	2	Cover	-
3	AH124731	2	Electrical Coil	-
4	-	2	Part 4	(A)
5	-	2	Part 5	(B)
6	E62089	2	Spring	(B)
7	-	2	Part 7	(B)
8	-	2	Part 8	(A)
9	-	2	Part 9	(A)
10	-	2	Part 10	(B)
11	U40962	2	O-Ring	(B)
12	T75984	2	O-Ring	-
13	-	1	Part 13	-
14	R30903	1	O-Ring	-
15	K40994	1	Fitting	-
16	-	1	Part 16	(C)
17	-	1	Part 17	(C)
18	-	1	Part 18	(C)
19	R28782	1	O-Ring	(C)
20	-	1	Part 20	(C)
21	AH131326	2	Seal	(WITH O-RING AND BACKUP RING)
22	AH139060	1	Flow Control Hyd. Valve	(SUB FOR AH131419), LESS COILS, CONNECTING TUBES AND ORIFICE
23	E62917	1	Orifice	0.508 MM DIA.
24	H145052	1	Orifice	0.406 MM DIA.
25	H145051	1	Aperture	0.940 MM DIA.
..	AH131420	2	Seat Kit	POPPET, (INCLUDES PARTS MARKED (B))
..	AH131421	1	Seat Kit	RELIEF, (INCLUDES PARTS MARKED (C))
..	AZ51851	1	Guide	(SUB FOR AH139240), (INCLUDES PARTS MARKED (A))

Solenoid Control Valve for Reel Lift / Variable and Cylinder Speed
