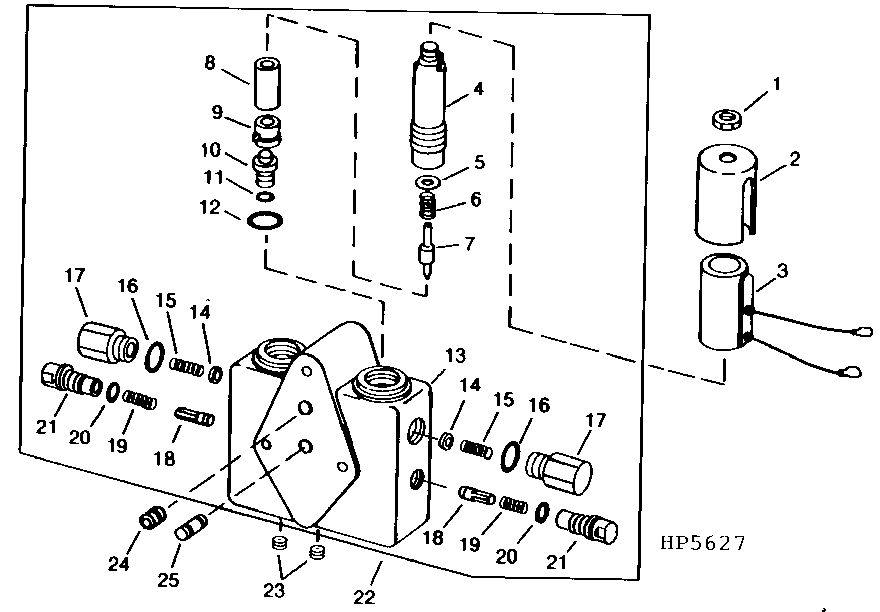

SOLENOID CONTROL VALVE FOR REEL FORE / AFT AND AUGER SWING (650101 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	A4655R	2	Nut	-
2	E62942	2	Cover	-
3	AH124731	2	Electrical Coil	-
4	-	2	Part 4	(A)
5	-	2	Part 5	(A), (B)
6	-	2	Part 6	(A), (B)
7	-	2	Part 7	(A), (B)
8	-	2	Part 8	(A)
9	-	2	Part 9	(A)
10	-	2	Part 10	(A), (B)
11	-	2	Part 11	(B)
12	-	2	Part 12	(A)
13	-	1	Part 13	-
14	E62094	2	Washer	-
15	-	2	Part 15	(C)
16	-	2	Part 16	(C)
17	-	2	Part 17	(C)
18	-	2	Part 18	(D)
19	-	2	Part 19	(D)
20	-	2	Part 20	(D)
21	-	2	Part 21	-
22	AH147086	1	Flow Control Hyd. Valve	(SUB FOR AZ47075)
23	H135777	2	Orifice	0.76 MM DIA.
24	AH131326	2	Seal	(WITH O-RING AND BACK-UP RING)
25	AH131405	1	Seal	(WITH O-RING AND BACK-UP RING)
..	AZ51851	1	Guide	(SUB FOR AH139240), INCLUDES PARTS MARKED (A)
..	AE49777	1	Poppet	INCLUDES PARTS MARKED (B)
..	AE49003	1	Spring Kit	SPRING, INCLUDES PARTS MARKED (C)
..	AH142731	1	Check Valve	CHECK VALVE, INCLUDES PARTS MARKED (D)

SOLENOID CONTROL VALVE FOR REEL FORE / AFT AND AUGER SWING (650101 - )
