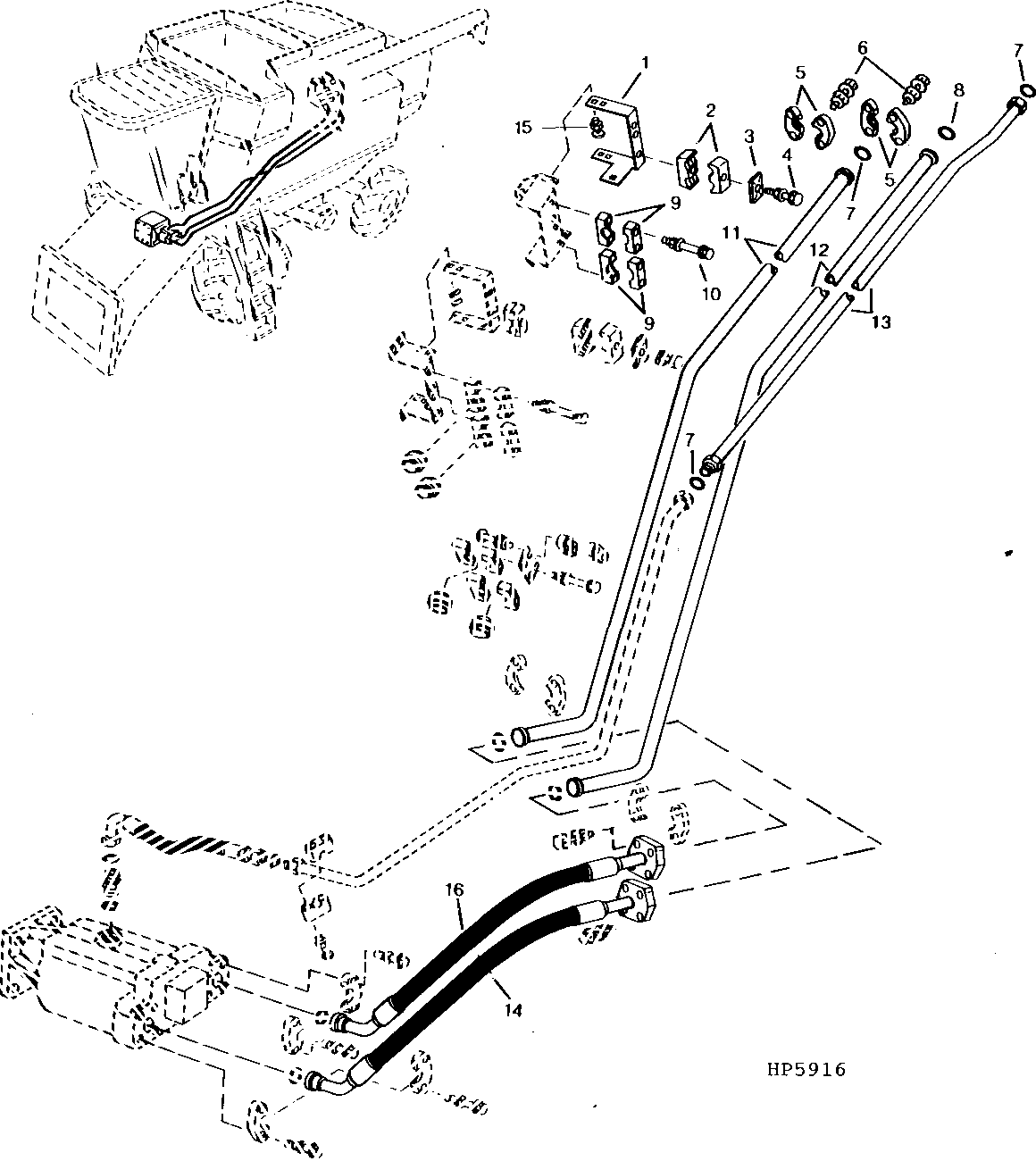

Hydrostatic Drive Oil Lines And Hoses, Lower, 2WD And 4WD ( - 655100)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H133659	1	Bracket	-
2	H111730	2	Clamp	-
3	H112567	1	Plate	-
4	19M7979	1	Screw	M8 X 55
4	14M7298	1	Flange Nut	M8
5	H122182	4	Flange Fitting	-
6	19H3465	8	Cap Screw	7/16" X 3"
6	T105740	16	Washer	-
6	14H1047	8	Nut	7/16"
7	T77858	3	O-Ring	-
8	T78313	1	O-Ring	-
9	H140180	4	Clamp	(SUB FOR H131154)
10	19M8039	4	Screw	M8 X 80
11	AH141545	1	Hose	-
11	AH134949	1	Hydraulic Hose	-
11	AH126195	1	Oil Line	(SUB AH134972, AH134949 AND AH141545), REVERSE PRESSURE - TOP LINE
11	AH134972	1	Oil Line	REVERSE PRESSURE - TOP LINE
12	AH126194	1	Oil Line	FORWARD PRESSURE - BOTTOM LINE FOR POWER REAR WHEEL ASSIST DRIVE SUB: AH134971, AH134949 AND AH135039 FOR NON POWER REAR WHEEL ASSIST DRIVE SUB: AH134971, AH134949 AND AH134950
12	AH134971	1	Oil Line	FORWARD PRESSURE - BOTTOM LINE
12	AH134949	1	Hydraulic Hose	-
12	AH135039	1	Hydraulic Hose	-
12	AH134950	1	Hose	-
13	AH127881	1	Oil Line	CASE DRAIN
14	AH134949	2	Hydraulic Hose	(SUB AH138171 OR AH138172)
14	AH141546	1	Hose	(REVERSE PRESSURE) TO FRONT PORT ON MOTOR
14	AH138171	1	Hose	(SUB AH141546), TO FRONT PORT ON MOTOR
14	AH126192	1	Hydraulic Hose	LGTH = 865 mm
15	03M7184	4	Bolt	M8 X 20
15	14M7396	4	Lock Nut	M8
16	AH126192	1	Hydraulic Hose	LGTH = 865 mm
16	AH134949	2	Hydraulic Hose	(SUB AH138171 OR AH138172)
16	AH138172	1	Hose	(SUB AH141547), TO REAR PORT ON MOTOR
16	AH141547	1	Hydraulic Hose	(FORWARD PRESSURE) TO REAR PORT ON MOTOR
