Horizontal Unloading Auger Housing ( 14 ft and 17 ft )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	19M7867	12	Screw	M8 X 25
3	24H1291	22	Washer	21/64" X 1-15/32" X 7/64"
4	14M7298	15	Flange Nut	M8
5	19M7868	11	Screw	M8 X 30
5	14M7396	11	Lock Nut	M8
6	AH145047	1	Housing	14', (SOLID), (SUB FOR AH122874)
6	AH145049	1	Housing	17', (SOLID), (SUB FOR AH129066 OR AH140334)
6	AH145048	1	Housing	14', (PERFORATED), (SUB FOR AH122875)
6	AH140335	1	Housing	17', (PERFORATED), (SUB FOR AH128682)
6	AH151408	1	Housing	17', Inner (Perforated) (Export Only)
6	AH151410	1	Housing	17', Outer (Export Only)
6	AH151407	1	Housing	17', 20', Inner (Rigid) (Export Only)
7	14H785	8	Nut	5/16"
8	24M7207	16	Washer	8.400 X 24 X 2 mm
9	H96652	2	Door	-
10	03M7184	2	Bolt	M8 X 20
11	19M7897	7	Screw	M8 X 35
11	14M7298	7	Flange Nut	M8
12	H127998	1	Cover	Use with Perforated Auger Housing
13	H141450	1	Strap	-
14	14M7303	3	Flange Nut	M6
15	28H5	3	Washer	0.269" X 0.405" X 1/4"
16	19M7796	3	Screw	M6 X 30
17	19M7867	1	Screw	M8 X 25
1A	H109093	1	Spout	(SUB H141449)
1B	H141449	1	Spout	-
1C	H149780	1	Spout	-

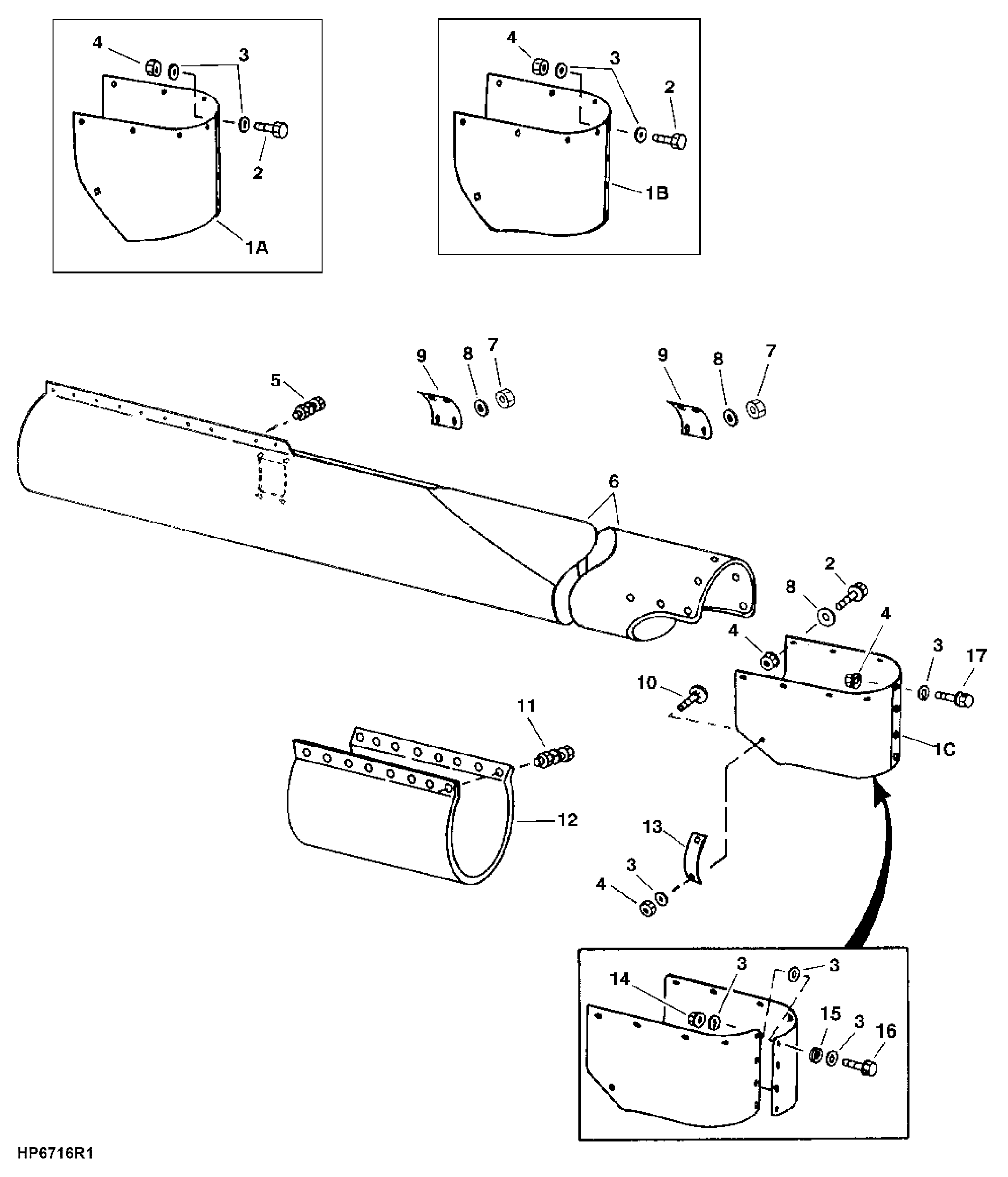

Horizontal Unloading Auger Housing ( 14 ft and 17 ft )
