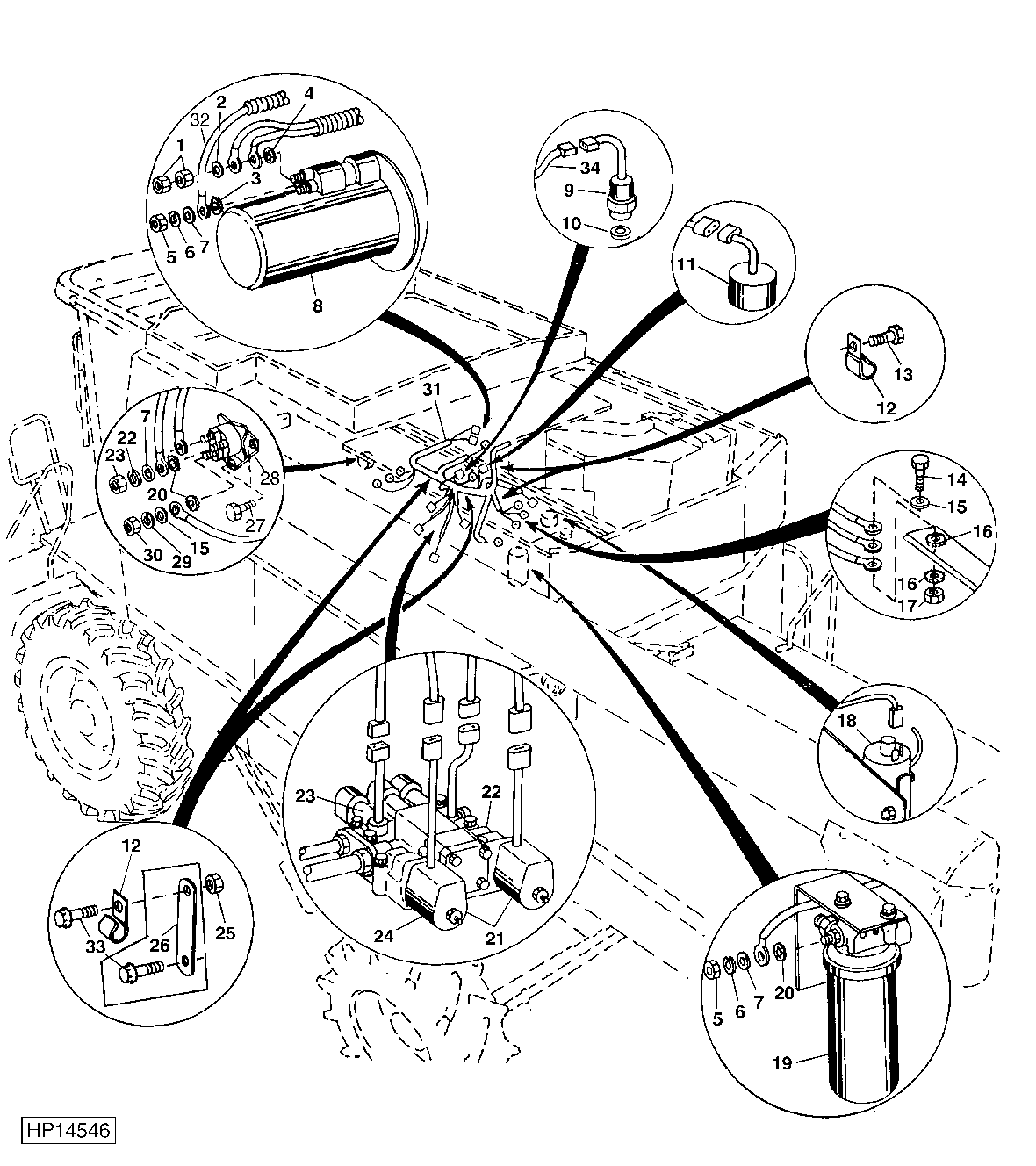

Harness For 6359 And 6068 Engines, Lower Parts

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7415	2	Nut	M12
1	14H826	2	Nut	1/2"
2	24M7047	1	Washer	13 X 24 X 2.500 mm
3	12M7060	1	Washer	5.300 mm
4	12M7033	1	Lock Washer	10.500 mm
5	14H631	1	Nut	0.190"
6	12H246	1	LOCK WASHER	0.190"
7	24M7027	1	Washer	5.300 X 10 X 1 mm
8	-	1	Part 9	(SUB FOR RE23900)
9	AH158689	1	Switch	(SUB FOR AH155523)
9	AH148278	1	Switch	-
9	AH139059	1	Temperature Switch	-
9	AH121234	1	Switch	ENGINE TEMP
10	R76337	1	Washer	(USE WITH AH148278)
11	AH133896	1	Switch	(SUB AH172066), ENGINE OIL PRESSURE
11	AH172066	1	Switch	-
12	AH96317	2	Clip	(SUB FOR AH89486)
12	H77698	1	Tie Band	-
13	37M7083	1	Screw	M8 X 12
14	19M7868	1	Screw	M8 X 30
15	24M7055	2	Washer	8.400 X 16 X 1.600 mm
16	12M7032	1	Lock Washer	8.400 mm
17	14M7298	1	Flange Nut	M8
18	RE48310	1	Starting Aid Solenoid	(SUB FOR AT39623)
19	AH128448	1	Hydraulic Filter	-
20	12M7032	2	Lock Washer	8.400 mm
21	AH128655	2	Solenoid Valve	-
22	AH135744	1	Switch	(SUB FOR AH128927)
22	R28782	1	O-Ring	-
22	R26375	1	O-Ring	-
23	AH116105	1	Switch	GEARCASE TEMPERATURE SWITCH
23	R26375	1	O-Ring	-
24	AH128785	1	Hand Operated Valve	-
25	14M7303	1	Flange Nut	M6
26	H24553	2	Strap	-
27	19M7774	2	Screw	M6 X 12
28	AM53945	1	Solenoid	-
29	12H303	2	Lock Washer	5/16"
30	14H785	1	Nut	5/16"
31	AH134258	1	Wiring Harness	(SUB FOR AH128407)
31	AH144892	1	Wiring Harness	(SUB FOR AH134266, AH142593), WITH AH142597
32	AH155483	1	Wiring Lead	(SERVICE ONLY)
33	19M7774	3	Screw	M6 X 12
34	AH155820	1	Wiring Lead	USED WITH AH155523
34	AH155821	1	Wiring Lead	USED WITH AH155523

Harness For 6359 And 6068 Engines, Lower Parts
