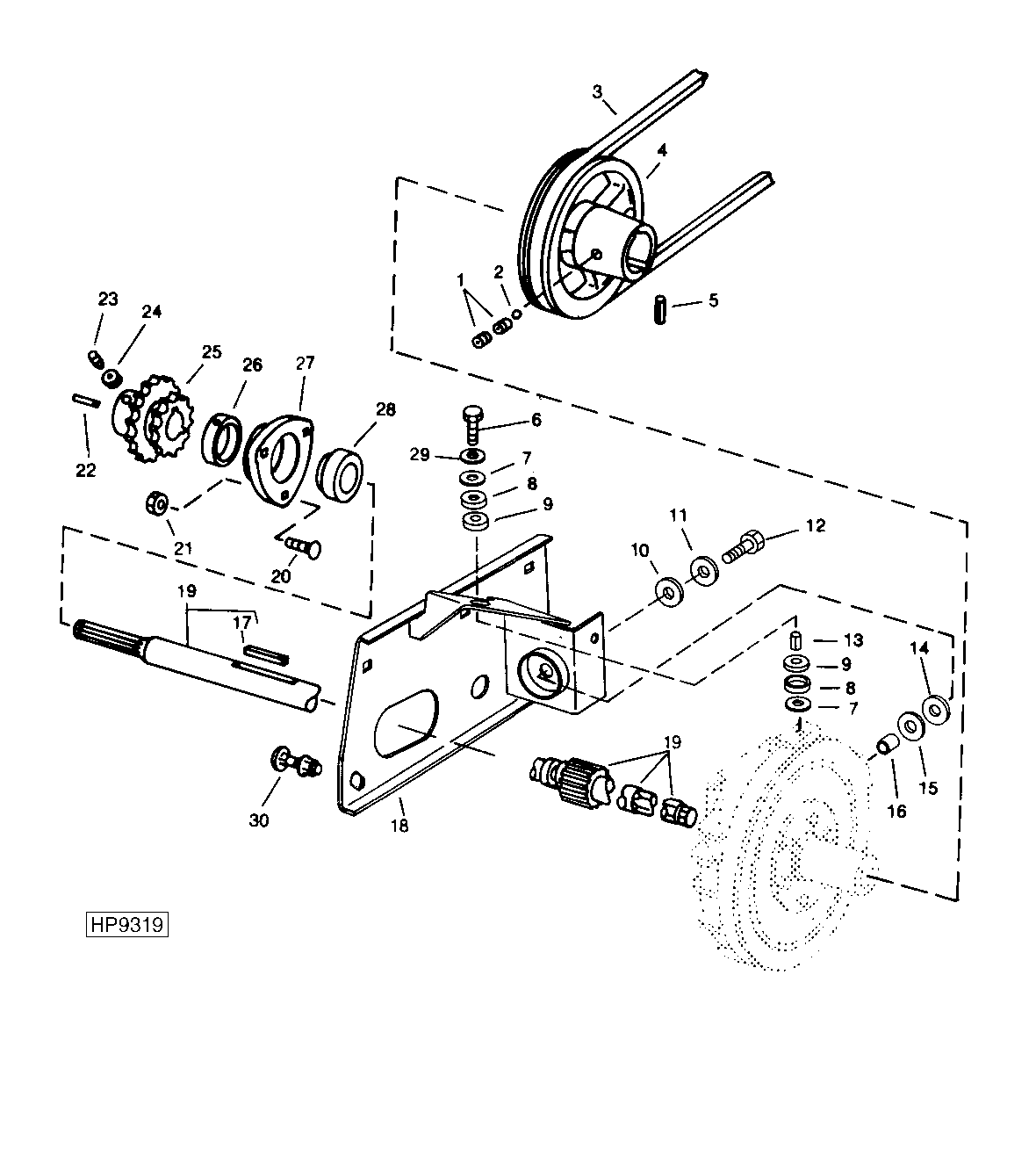

Front Drive Shaft, Sheave And Mountings, Fixed Speed with Reverser

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	22H775	2	Set Screw	5/16" X 1/4"
2	H110922	1	Ball	-
3	H126345	1	V-Belt	LGTH = 4650 mm, WDTH = 31.75 mm
4	H108889	1	Pulley	-
5	34H305	1	Spring Pin	7/32" X 2"
6	19H1863	1	Cap Screw	5/8" X 3"
7	P50456	2	Washer	-
8	H148132	2	Bushing	(SUB FOR H80197)
9	H148133	2	Retainer	(SUB FOR H78856)
10	T55761	1	Support	RUBBER WASHER
11	R20136	1	Washer	-
12	19H1950	1	Cap Screw	5/8" X 3-3/4"
13	Z64078	1	Spacer	-
14	R62502	1	Support	-
15	H97410	1	Washer	-
16	H95417	1	Spacer	-
17	-	1	Part 17	-
18	AH144099	1	Support	(SUB FOR AH139919)
19	AH97642	1	Shaft	-
19	AH136873	1	Shaft	CONTOUR MASTER
19	AH152937	1	Shaft	(ALSO ORDER AXE10874 AND AH233089), CONTOUR MASTER
20	03M7192	3	Bolt	M10 X 30
21	14M7296	3	Flange Nut	M10
22	M73000	1	Shaft Key	-
23	H138435	2	Set Screw	M10 X 25
24	14M7274	2	Nut	M10
25	AH125782	1	Chain Sprocket	Z = 15/22
25	AXE10874	1	Drive Sprocket	Z = 15/22, USE WITH AH153341 (GEARBOX) AND AH233089 (TONE WHEEL), (SUB FOR AH149349)
26	JD9201	1	Eccentric Locking Collar	-
27	H93927	1	Housing	-
28	JD9202	1	Ball Bearing	-
29	24M7241	1	Washer	17 X 34 X 4 mm
30	03M7191	5	Bolt	M10 X 25
30	14M7296	5	Flange Nut	M10

Front Drive Shaft, Sheave And Mountings, Fixed Speed with Reverser
