Chaff Spreader Lines, Hoses, Valve And Pump

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T77932	1	O-Ring	-
2	AH133758	1	Oil Line	-
3	H120362	2	Clamp	-
4	T77857	2	O-Ring	-
5	H112567	1	Plate	-
6	19M7801	1	Screw	M8 X 60
6	14M7298	1	Flange Nut	M8
7	T27523	1	Clamp	-
8	38H1040	1	Tee Fitting	-
9	AH132200	1	Hydraulic Hose	LGTH = 975 mm, Sunction
10	38H1174	1	Adapter Fitting	-
11	R26906	1	O-Ring	-
12	AH134555	1	Pump	ORDER AH229414
12	AH229414	1	Pump	-
13	R29936	1	O-Ring	-
14	38H1194	1	Adapter Fitting	-
15	T77858	1	O-Ring	-
16	AH132201	1	Hydraulic Hose	LGTH = 980 mm, Pressure
17	H77698	1	Tie Band	-
18	AH133949	1	Oil Line	-
19	H120847	2	Clamp	-
20	H121168	1	Plate	-
21	19M7873	1	Screw	M8 X 110
22	AH133948	1	Oil Line	-
23	L3483N	1	Bushing	W/O Four Wheel Drive
24	14M7298	1	Flange Nut	M8
25	38H1006	2	Elbow Fitting	-
26	AH140902	1	Check Valve	SUB FOR AH130180 OR AH136202
27	38H1162	1	Adapter Fitting	-
28	H137603	1	Shield	-
29	19M7868	2	Screw	M8 X 30
30	03M7186	1	Bolt	M8 X 30
30	14M7396	2	Lock Nut	M8
31	H78340	1	Isolator	-
32	14M7396	2	Lock Nut	M8
33	H137602	1	Arm	-
34	E59406	1	Nut	-
35	24M7024	1	Washer	9 X 28 X 3 mm
..	BH80263	1	Complete Goods/Ship. Bundle	Chaff Spreader LESS 4-Wheel Drive
..	BH80264	1	Complete Goods/Ship. Bundle	Chaff Spreader for 4-Wheel Drive

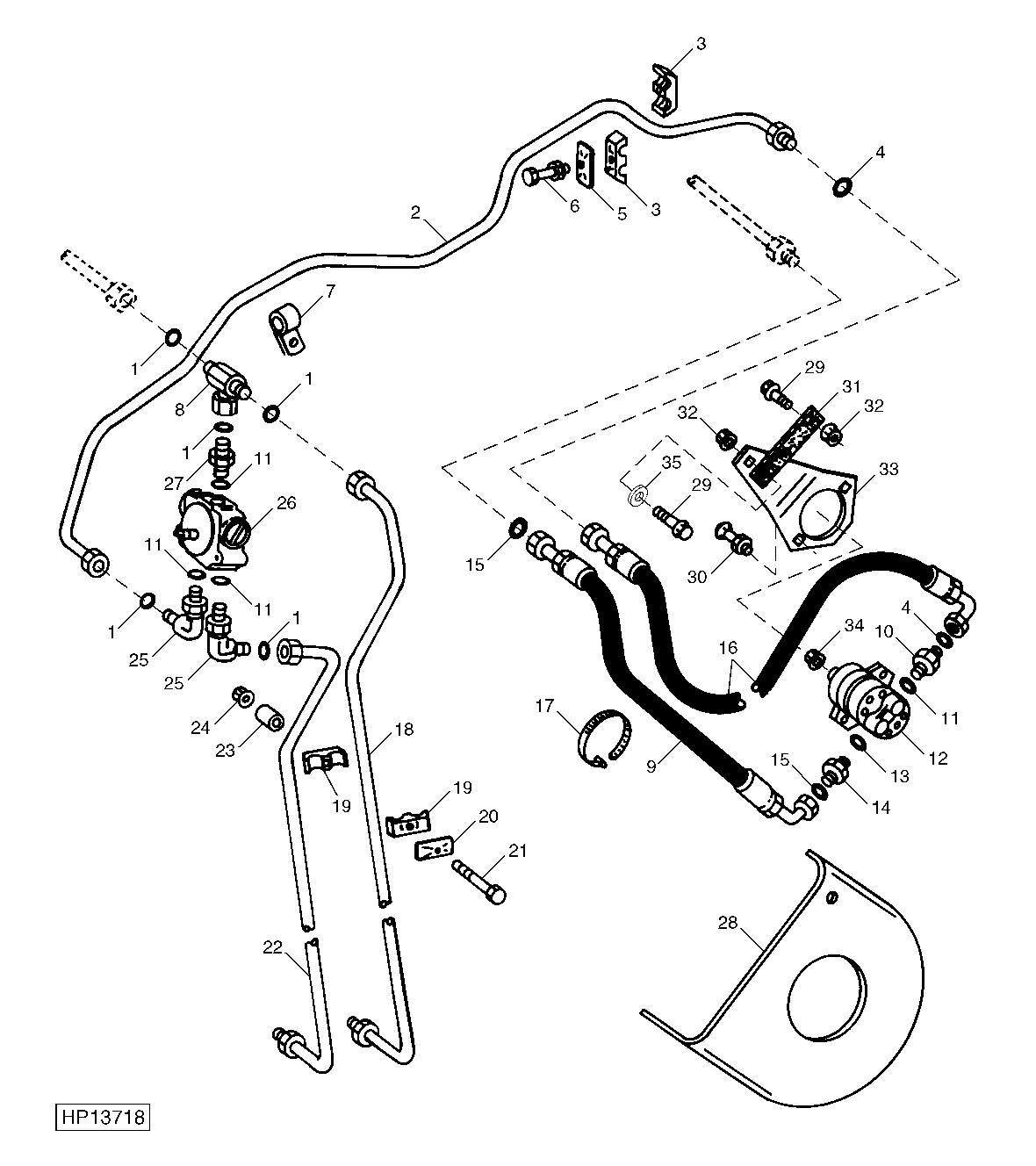

Chaff Spreader Lines, Hoses, Valve And Pump
