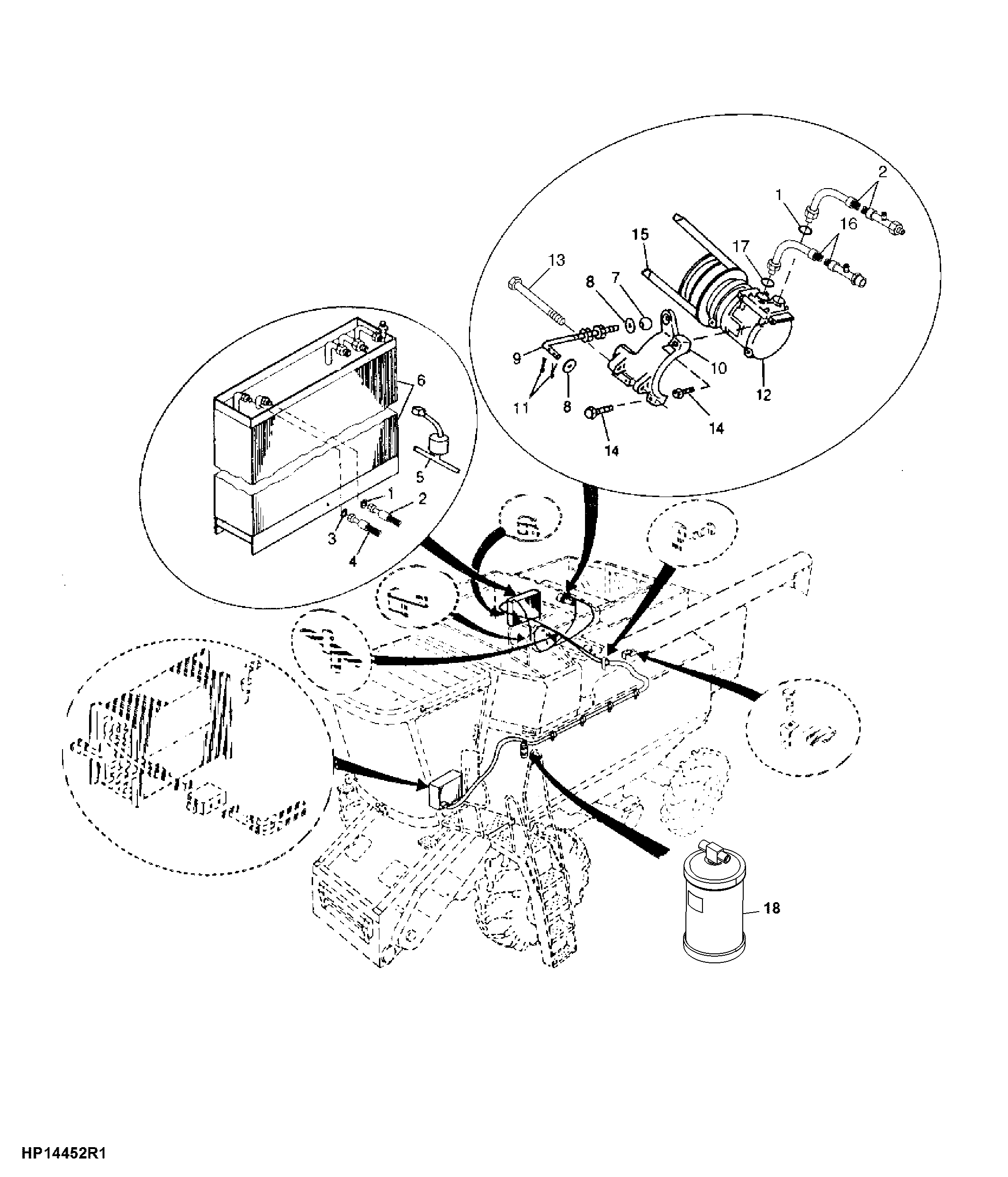

Air Conditioning System (For R134a Refrigerant) (650101 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R113050	1	O-Ring	-
2	AH142106	1	Refrigerant Hose	LGTH = 2000 mm, PRESSURE
3	R10093	1	O-Ring	-
4	AH126036	1	Refrigerant Hose	LGTH = 5780 mm, PRESSURE, (SUB FOR AH136505)
5	RE24307	1	Pressure Switch	HIGH PRESSURE
6	AH150219	1	Oil Cooler	(SUB FOR AH120836 OR AH136172), OIL COOLER AND CONDENSER TOGETHER
7	P45458	1	Ball	-
8	24M7047	2	Washer	13 X 24 X 2.500 mm
9	H145987	1	Hook Bolt	-
9	14M7275	2	Nut	M12
10	H145986	1	Arm	-
11	11M7021	2	Cotter Pin	4 X 25 mm
12	SE503056	1	Compressor Reman	-
12	SE501460	1	Compressor Reman	(REMAN FOR TY6626)
12	SE501463	1	Compressor Reman	ORIGINAL R134A (REMAN FOR RE46657 OR TY6765), ORDER SE503056
12	TY6765	1	Compressor	(ORDER SE501463)
12	SE503051	1	Compressor Reman	-
12	SE501464	1	Compressor Reman	FOR MACHINES CONVERTED TO R134A, (REMAN FOR TY6766), ORDER SE503051
12	TY6766	1	Compressor	(R134A) (ORDER SE501464)
12	RE46657	1	Compressor	COMPLETE
12	TY6626	1	Compressor	(ORDER SE501460)
13	19M7838	1	Screw	M12 X 130
14	19M7913	3	Screw	M8 X 90
15	H80896	1	V-Belt	LGTH = 1422.5 mm, WIDTH = 12.7 mm
16	AH142105	1	Refrigerant Hose	LGTH = 5250 mm
17	R33259	1	O-Ring	-
18	AXE53638	1	Receiver-Dryer	-

Air Conditioning System (For R134a Refrigerant) (650101 - )
