Air Conditioning System (For R-12 Refrigerant) ( - 650100)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	P51212	1	O-Ring	-
2	AH126044	1	Hose	LGTH = 2000 mm, PRESSURE
2	AH137735	1	Hose	LGTH = 1700 mm, PRESSURE
3	R10093	1	O-Ring	-
4	AH126036	1	Refrigerant Hose	LGTH = 5780 mm, PRESSURE, (SUB FOR AH136505)
5	RE24307	1	Pressure Switch	HIGH PRESSURE
6	AH150219	1	Oil Cooler	(SUB FOR AH120836 OR AH136172), OIL COOLER AND CONDENSER TOGETHER
7	14M7296	2	Flange Nut	M10
8	H128194	1	Bracket	-
9	H77337	1	Washer	-
10	24M7178	2	Washer	10.500 X 30 X 2.500 mm
11	N61703	1	SPRING	-
12	28H1495	1	Spacer	0.493" X 0.675" X 1"
13	H118539	1	Eyebolt	-
14	24M7178	1	Washer	10.500 X 30 X 2.500 mm
15	H118543	1	Bushing	-
16	19M8118	1	Cap Screw	M10 X 35
17	R123522	1	V-Belt	-
17	H134772	1	V-Belt	LGTH = 1440 mm, WIDTH = 12.7 mm
17	H101813	1	V-Belt	-
18	TY6626	1	Compressor	(NLA) (ORDER SE501460)
18	SE501460	1	Compressor Reman	(REMAN FOR TY6626)
18	RE46657	1	Compressor	COMPLETE
18	SE501463	1	Compressor Reman	ORIGINAL R134A (REMAN FOR RE46657 OR TY6765), ORDER SE503056
18	SE503056	1	Compressor Reman	-
18	TY6766	1	Compressor	(R134A) (NLA) (ORDER SE501464)
18	SE501464	1	Compressor Reman	(REMAN FOR TY6766), ORDER SE503051
18	SE503051	1	Compressor Reman	-
19	R33259	1	O-Ring	-
20	AH126034	1	Hose	RETURN
21	19M8007	4	Cap Screw	M10 X 25
22	H125988	2	Pivot	-
23	H125989	1	Shaft	-
24	03M7191	2	Bolt	M10 X 25
25	H136603	1	Support	-
25	H144123	1	Support	-
26	H125991	1	Clamp	-
27	19M7786	1	Screw	M10 X 30

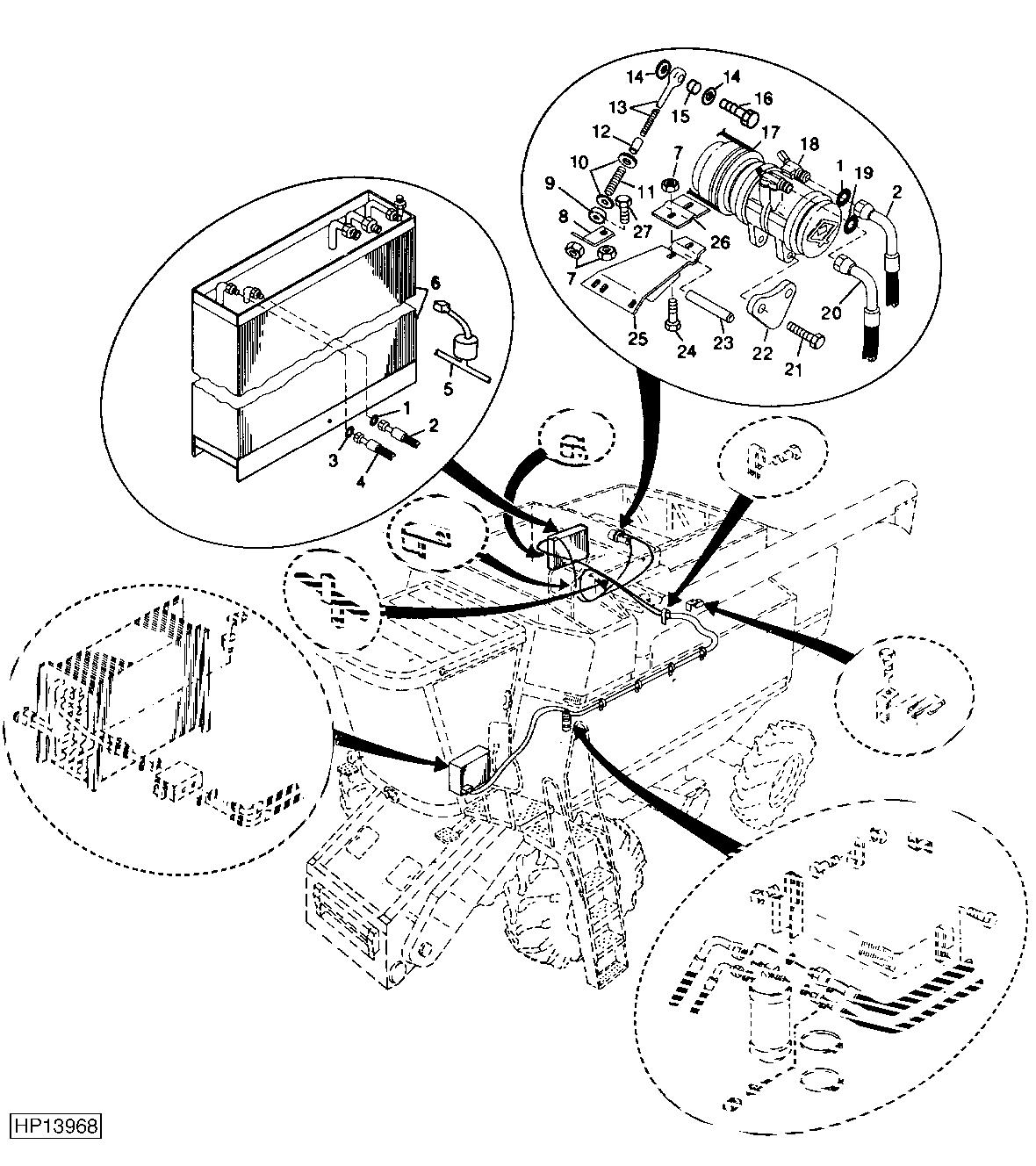

Air Conditioning System (For R-12 Refrigerant) ( - 650100)
