TRANSMISSION CASE SHIELD FOR SYNCHRON TRANSMISSION

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2021	2	Cap Screw	3/8" X 5/8"
2	T22394	1	SHIELD	-
2	L38365	1	COVER	(FOR AL34164)
3	19H1765	1	Cap Screw	3/8" X 1-3/4"
4	L34117	1	Cover	(WITH INDEPENDENT PTO)
4	L34110	1	SHIELD	(WITH CREEPER TRANSMISSION)
4	L38366	1	SHIELD	(WITH INDEPENDENT PTO) (FOR AL34164)
4	L38368	1	SHIELD	(WITH CREEPER TRANSMISSION) (FOR AL34164)
5	19H1819	2	Cap Screw	3/8" X 2-1/8"
6	L30819	1	STRAP	-
7	L53869	2	O-Ring	(WITH OPU CAB) (SUB FOR L28561)
8	19H2636	2	Cap Screw	(WITH OPU CAB) 3/8" X 3-5/8"
9	L34228	1	Shield	(WITH CREEPER TRANSMISSION) (WITH OPU CAB)
9	L37324	1	Shield	(WITH OPU CAB) (SUB FOR L30515)
10	L28561	2	SPACER	(ORDER (2) L53869)
11	L30818	3	Spacer	(WITH OPU CAB)

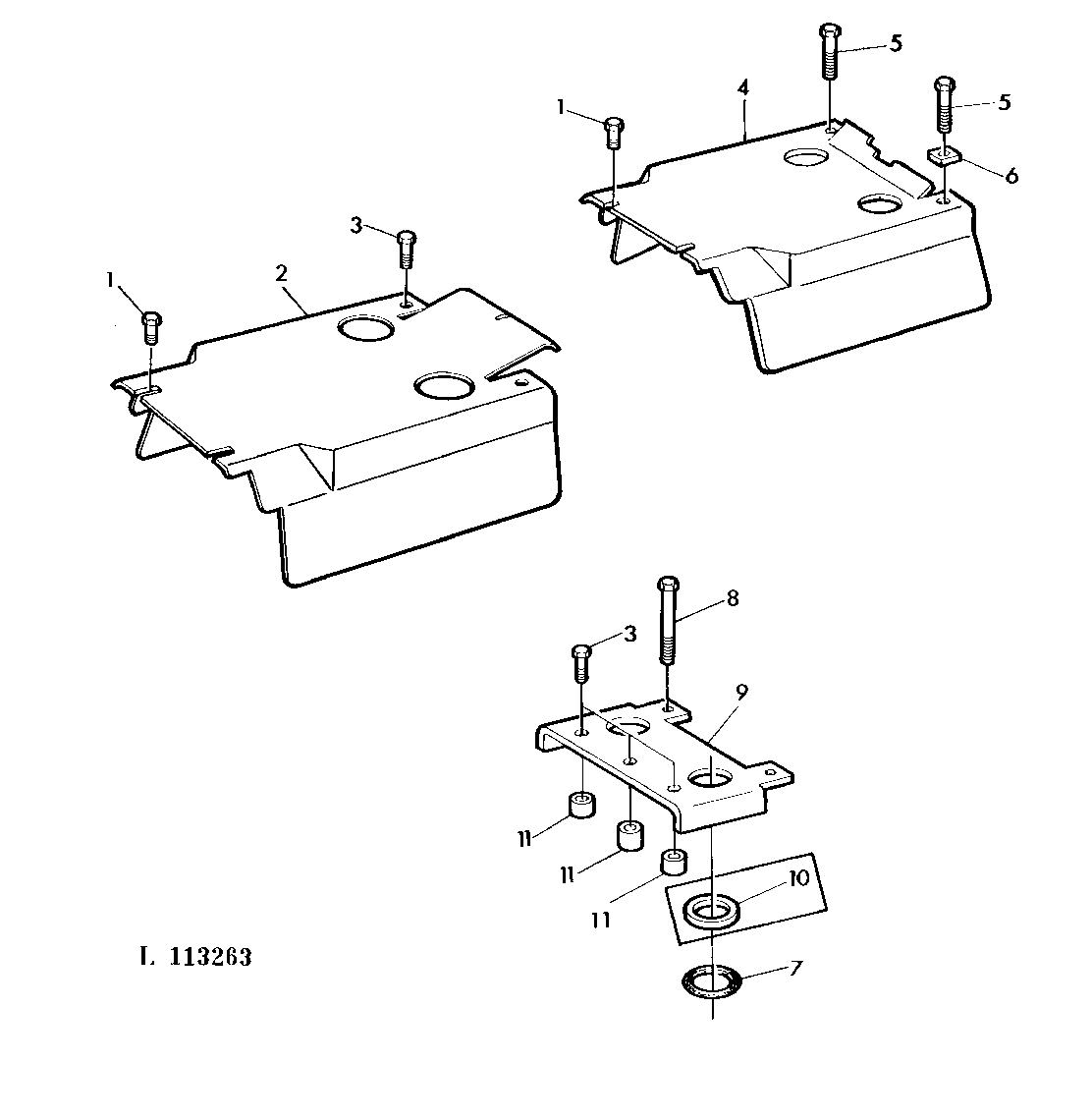

TRANSMISSION CASE SHIELD FOR SYNCHRON TRANSMISSION
