Открытый узел

ENGINE OIL COOLER/6 PLATES/INCREASED COOLING CAPACITY

ENGINE OIL COOLER/6 PLATES/INCREASED COOLING CAPACITY

ENGINE OIL COOLER/6 PLATES/INCREASED COOLING CAPACITY

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

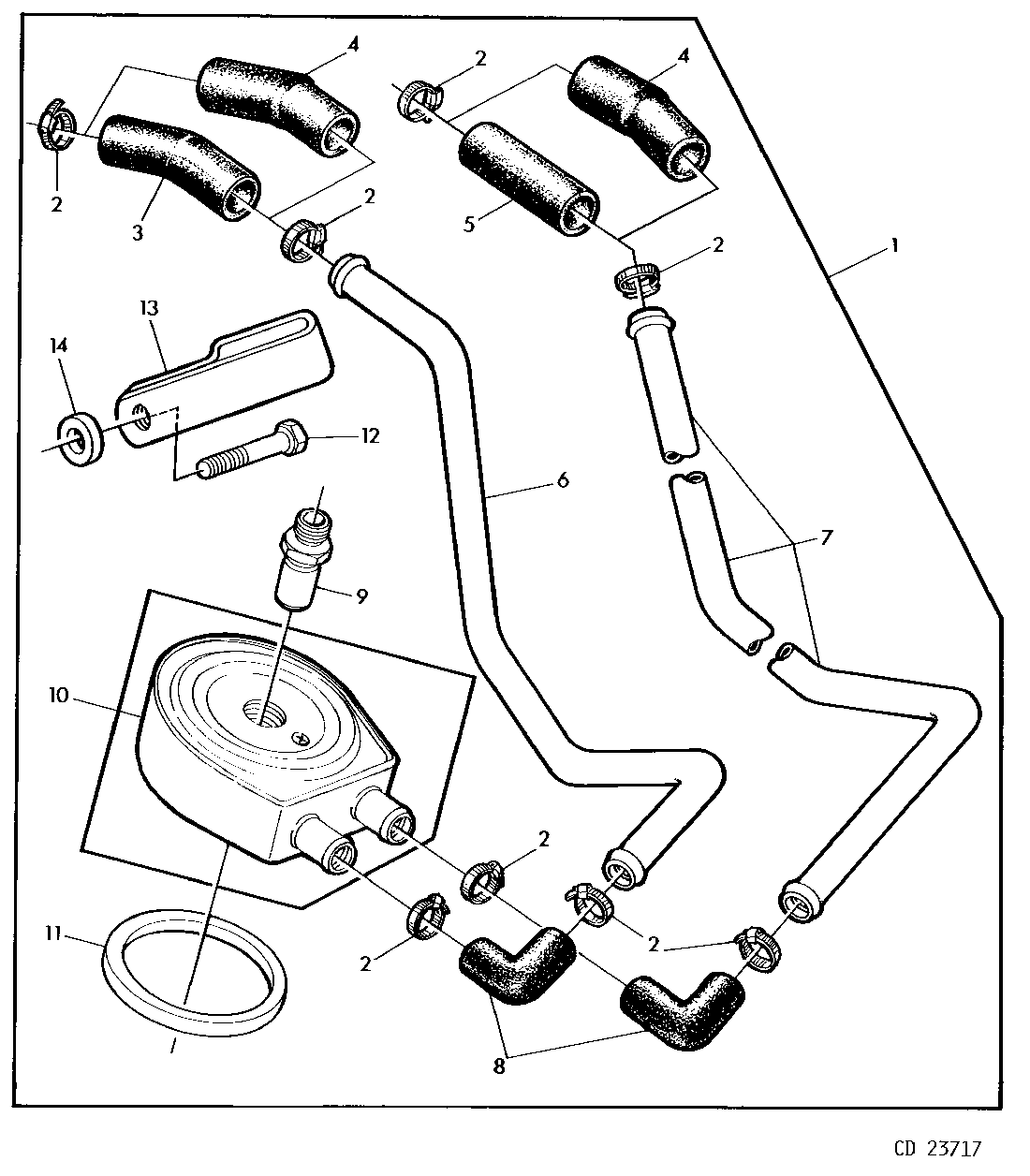

ENGINE OIL COOLER/6 PLATES/INCREASED COOLING CAPACITY

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE38080	1	Kit	(Except For 1040 Tractors For High Altitude Operation) NLA, (ORDER RE10869)
2	AL64588	8	Clamp	(Except For 1040 Tractors For High Altitude Operation) (SUB FOR AR21837)
3	-	1	Part 3	(Except For 1040 Tractors For High Altitude Operation) ID= 16MM (0.62"), LGTH= 32MM, (MF R83063)
4	R99260	2	Radiator Hose	(Except For 1040 Tractors For High Altitude Operation) ID= 16MM (0.62") X ID= 19MM (0.74")
5	-	1	Part 5	(Except For 1040 Tractors For High Altitude Operation) ID= 16MM (0.62"), LGTH= 32MM, (ORDER R83063)
6	R99255	1	Line	(Except For 1040 Tractors For High Altitude Operation) ID= 16MM (0.62")
7	R99256	1	Line	(Except For 1040 Tractors For High Altitude Operation) ID= 16MM (0.62")
8	R99254	1	Hose	(Except For 1040 Tractors For High Altitude Operation) ID= 16MM (0.62")
9	R125507	1	Threaded Nipple	(Except For 1040 Tractors For High Altitude Operation) 13/16"-16UN X LGTH= 54MM (2.13"), (USE WITH RE61767)
9	R99252	1	Threaded Nipple	(Except For 1040 Tractors For High Altitude Operation) 13/16"-16UN X LGTH= 62MM (2.44"), (USE WITH RE38077)
10	RE38077	1	Oil Cooler	(Except For 1040 Tractors For High Altitude Operation) BEHR, NLA, (ORDER RE61767 AND R125507)
10	RE61767	1	Oil Cooler	(Except For 1040 Tractors For High Altitude Operation) (SUB FOR RE38077)
11	R70956	1	Washer	(Except For 1040 Tractors For High Altitude Operation) 68.6 X 76.2 X 4.8MM, (USE WITH RE38077)
11	R125508	1	Packing	(Except For 1040 Tractors For High Altitude Operation) 67 X 73.4 X 3.6MM, (USE WITH RE61767)
12	19H1726	1	Cap Screw	(Except For 1040 Tractors For High Altitude Operation) 3/8" X 2-1/4", 3/8"X2-1/4"
13	R53524	1	Clamp	(Except For 1040 Tractors For High Altitude Operation)
14	R99257	1	Washer	(Except For 1040 Tractors For High Altitude Operation)
..	R83063	1	Hose	(Except For 1040 Tractors For High Altitude Operation) ID= 16MM (0.62") X LGTH= 2370MM (33.30")
