Открытый узел

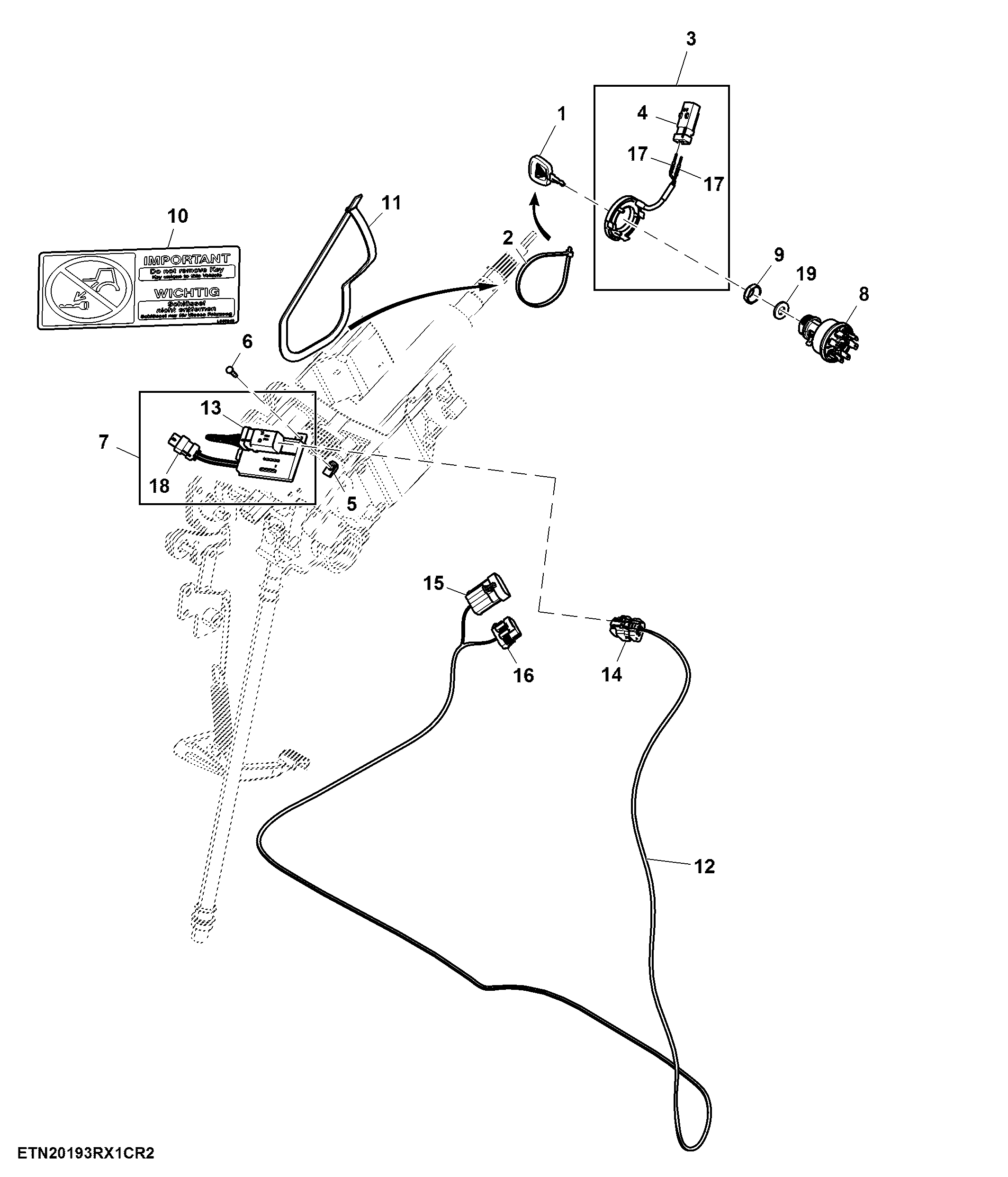

Switch, W/ Immobilizer Key and Backup Pump

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL209223	2	Key Kit	Exchange Key No. 2
1	AL209224	2	Key Kit	Exchange Key No. 3
1	AL209225	2	Key Kit	Exchange Key No. 4
1	AL209226	2	Key Kit	Exchange Key No. 5
1	AL209222	2	Key Kit	Exchange Key No. 1
2	R105388	9	Tie Band	-
3	AL208779	1	Antenna Kit	-
4	57M9776	1	Elec. Connector Housing	-
5	R187886	2	Nut	-
6	21M7252	2	Screw	M4 X 16
7	RE333871	1	Key Kit	-
8	RE564875	1	Rotary Switch	-
9	R44342	1	Nut	-
10	L207049	1	Instruction Plate	-
11	R76477	2	Tie Band	-
12	RE557898	1	Cab Wiring Harness	-
13	57M9789	1	Elec. Connector Housing	-
14	57M9786	1	Elec. Connector Housing	E102, Immobilizer
14	RWA11029	1	Repair Wire Assembly	Cavity 2, 5, 6
14	RWA10612	1	Repair Wire Assembly	Cavity 1, 4
15	57M7264	1	Elec. Connector Housing	X151, Mob 2
15	RWA11082	1	Repair Wire Assembly	Cavity A, B, C, D, F
16	57M7261	1	Elec. Connector Housing	X150, Mob 1
16	57M7296	1	Elec. Connector Accessory	-
16	RWA11083	1	Repair Wire Assembly	Cavity A, B, C, D, E, G
17	57M9813	2	Elec. Connector Terminal	-
18	57M9772	1	Elec. Connector Housing	-
19	A4827R	1	Washer	-

Switch, W/ Immobilizer Key and Backup Pump

Нет текстового описания
