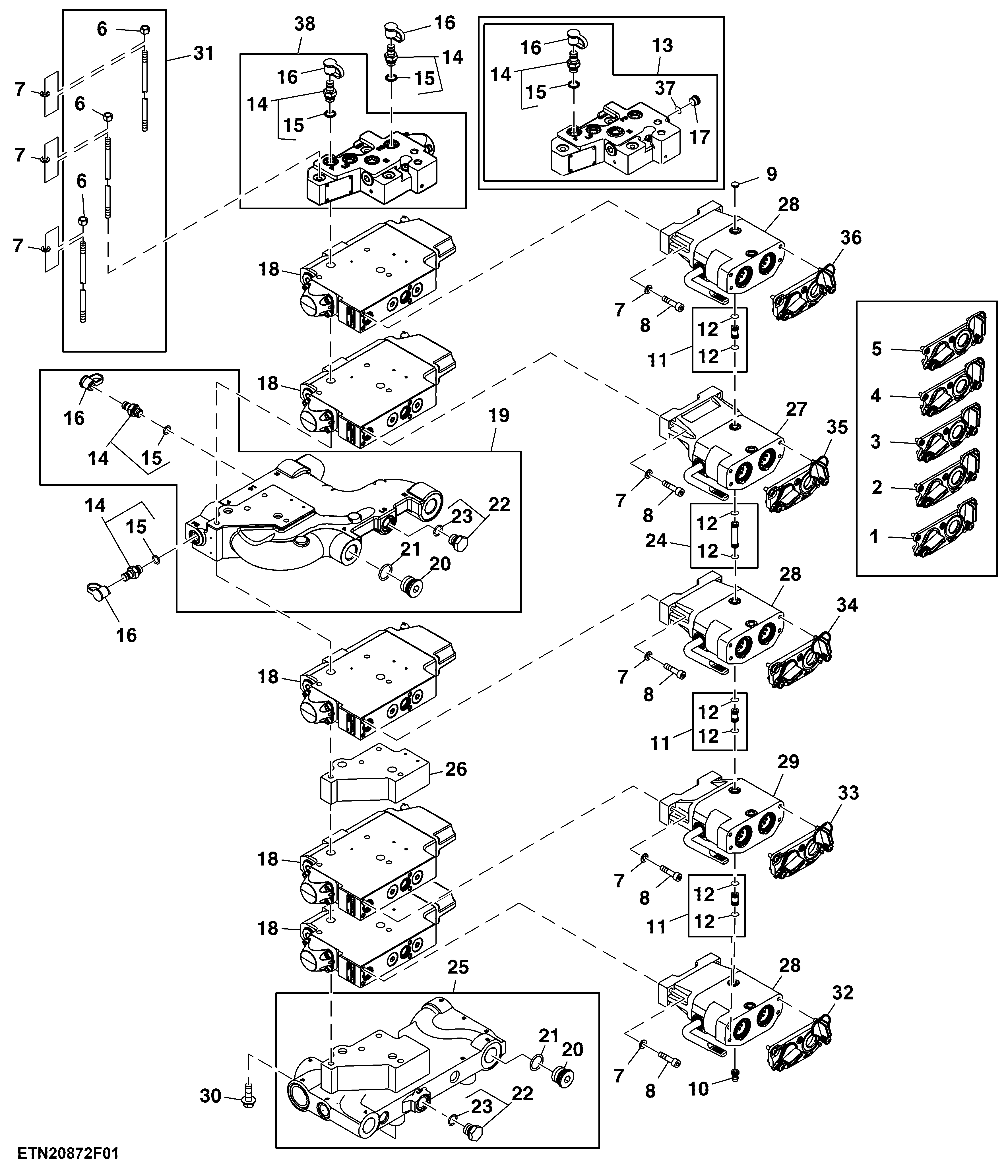

Открытый узел

Selective Control Valve, 5 Rear SCV, High Flow, W/O Hitch

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE289055	1	Cover	Number I, Green, SCV Coupler ORDER RE574941
2	RE289056	1	Cover	Number II, Blue, SCV Coupler ORDER RE574660
3	RE289057	1	Cover	Number III, Brown, SCV Coupler ORDER RE574942
4	RE289058	1	Cover	Number IV, Black, SCV Coupler ORDER RE574943
5	RE289059	1	Cover	Number V, Violet, SCV Coupler ORDER RE574944
6	14M7327	3	Lock Nut	M8
7	24M7095	23	Washer	8.400 X 15 X 1.600 mm
8	R266977	20	Socket Head Screw	-
9	R267667	2	Cap	-
10	R267668	2	Hose Fitting	-
11	RE272882	6	Tube	-
12	R10093	16	O-Ring	-
13	RE292728	1	Manifold	ORDER RE271469
14	RE190805	5	Diagnostic Coupling	-
15	51M7041	5	O-Ring	11.300 X 2.200 mm
16	R77175	5	Cover	-
17	R116115	1	Fitting	ALSO ORDER 51M7045; USE WITH RE292728
18	RE308284	5	Selective Control Valve	-
18	RE588375	5	Selective Control Valve	SUB FOR RE580227 OR RE337466
19	RE594724	1	Manifold	-
19	RE557710	1	Manifold	ORDER RE594724
20	64M1022	4	Drain Plug	-
21	51M7047	4	O-Ring	23.600 X 2.900 mm
22	RE46685	3	Fitting Plug	-
23	51M7043	3	O-Ring	15.300 X 2.200 mm
24	RE557857	2	Tube	-
25	RE557707	1	Manifold	-
26	RE283453	1	Manifold	-
27	RE559659	1	Breakaway Coupler	Low Profile
28	RE559660	3	Breakaway Coupler	Mid Profile
29	RE559661	1	Breakaway Coupler	High Profile
30	19M7790	3	Screw	M12 X 35
31	RE304828	1	Stud Kit	-
32	RE574941	1	Cover	Number I, Green, SCV Coupler
33	RE574660	1	Cover	Number II, Blue, SCV Coupler
34	RE574942	1	Cover	Number III, Brown, SCV Coupler
35	RE574943	1	Cover	Number IV, Black, SCV Coupler
36	RE574944	1	Cover	Number V, Violet, SCV Coupler
37	51M7045	1	O-Ring	19.300 X 2.200 mm, USE WITH RE292728
38	RE271469	1	Manifold	-

Selective Control Valve, 5 Rear SCV, High Flow, W/O Hitch

Нет текстового описания
