Rear Axle Input Cover, Single Reduction, 120 mm ( - 056005)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD8255	1	Bearing Cup	-
2	JD8941	1	Bearing Cone	-
3	RE581479	1	Seal	-
3	RE158082	1	Seal	ORDER RE581479
4	RE218590	1	Elbow Fitting	-
5	RE46684	2	Fitting Plug	-
6	51M7041	5	O-Ring	11.300 X 2.200 mm
7	RE67105	1	Oil Line	Brake Port Crossover
8	R124124	1	Universal Joint Yoke	ORDER RE585909
9	RE69119	1	Plate	-
10	RE215199	1	Tapered Roller Bearing	-
11	R119211	2	Self-Locking Screw	-
12	R134161	1	Plate	-
13	R135543	18	Washer	-
14	R218711	1	Cover	-
14	R206610	1	Cover	Service Only
15	R56751	1	O-Ring	-
16	R58255	1	Shim	TK = 0.178 mm
17	R58256	1	Shim	TK = 0.254 mm
18	R58257	1	Shim	TK = 0.305 mm
19	R58258	1	Shim	TK = 0.381 mm
20	R81362	1	Shim	TK = 0.080 mm
21	R81363	1	Shim	TK = 0.130 mm
22	R81364	1	Shim	TK = 0.250 mm
23	R98309	1	Cap Screw	-
24	R88246	2	Cap Screw	-
25	T14386	2	Bushing	-
26	U10289	1	O-Ring	-
27	U11017	1	O-Ring	-
28	W23832	1	Spacer	-
29	19M7166	4	Cap Screw	M10 X 20
30	19M7409	16	Cap Screw	M16 X 50
31	38H5002	1	Adapter Fitting	-
32	T77613	4	O-Ring	-
33	38H5016	1	Elbow Fitting	INCLUDES 51M7041
34	38H5067	1	Tee Fitting	-
35	RE585909	1	Universal Joint Yoke	-
36	R561782	1	Oil Slinger	USE WITH R561783
37	R561783	1	Universal Joint Yoke	USE WITH R561782
38	R107768	2	Drain Plug	-

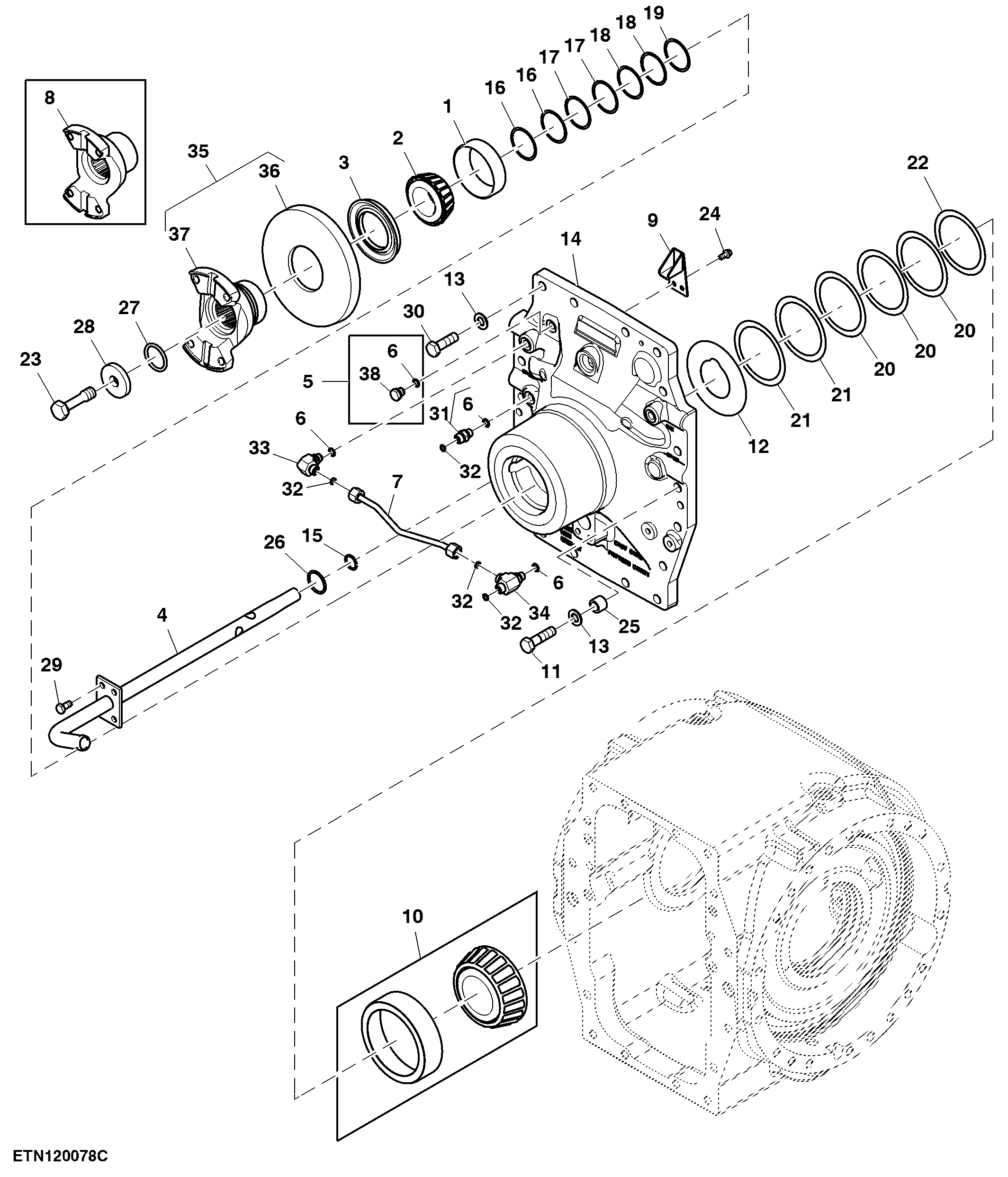

Rear Axle Input Cover, Single Reduction, 120 mm ( - 056005)

Нет текстового описания
